Lincoln Electric, K2808-1, Plasma Cutter, 40A@96V 100%; 1 in Cutting Thickness; Hand Torch, 25 ft

Plasma Cutting for Production Capacity. The Tomahawk 1000 plasma cutting system is portable enough to use on the jobsite and rugged enough to use on up to one inch material in a production environment. Hook up the compressed air, grab the torch and start cutting.

Features

• PowerConnect® Technology - Automatically senses and adjusts to input power for a range of 200 up to 600 volts, single or three phase, 50 or 60 hertz. Cutting output remains constant throughout the entire input voltage range.
• Engine Drive Compatible - Select a Lincoln Electric Ranger® or Vantage® to power your Tomahawk® in remote locations.
• Continuous Output Control - Focus the arc for different material thicknesses.
• Touch Start - Reliable plasma arc initiation without high frequency.
• Optional Machine Torch - Available for use on CNC plasma cutting table.
• Front Panel Purge Control - Makes it easy to set the air flow rate without initiating the plasma arc.
• Cool Operation, Long Consumable Life - New electrode and nozzle design save you money in the long run.
• Added Safety - Our Parts-in-Place™ - System detects correct installation of consumables and torch.

What's Included?

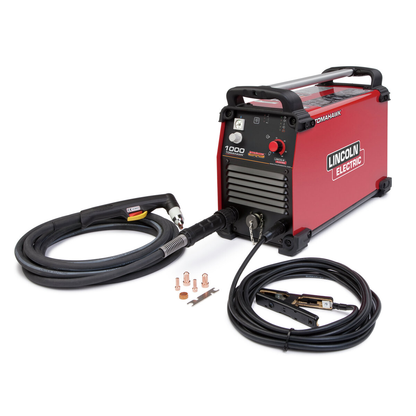

• (1) Tomahawk 1000 Plasma Cutter, (1) K2848-1 LC65 Hand Torch and 25 ft Cable(3) K2844-1 Electrode 60A, (3) KP2844-4 Nozzle 60A, (2) KP2844-14 Swirl Ring, (1) KP2844-9 Retaining Cap, (1) KP2843-10 Drag Spacer, (1) Air Regulator and Pressure Gauge, (1) Internal Water Separator, (1) Work Clamp and Cable, (1) Input Power Cord

• Rated Output Current: 40A@96V (100% Duty Cycle), 60A@104V (50% Duty Cycle)
• Output Range: 20-60A
• Input Voltage: 208-575V, Single/Three Phase, 50/60Hz
• Air Pressure Required: 87-109 psi (6.0-7.5 Bar)
• Air Flow Rate: 80 psi @ 275 SCFH (5.5 Bar @ 130 L/min)
• Maximum Cutting Thickness (Mild Steel): 1 in @ 10 ipm (25.4 mm @ 0.30 m/min)
• Maximum Severance (Mild Steel): 1-1/4 in @ 5 ipm (31.75 mm @ 0.13 m/min)
• Recommended Cutting Capacity (Mild Steel): 3/4 in @ 19 ipm (19.01 mm @ 0.51 m/min)
• Torch Cable Length: 25 ft (7.6 m)
• Dimensions (H x W x D): 15.2 x 8.5 x 22.1 in (385 x 215 x 561 mm)
• Weight: 45 lb (20.4 kg)
• Welding Technology: Inverter/Chopper
• Cooling: Air
• Gas Supply: Air or Nitrogen
• Output Polarity: DC
• Input Frequency: 50/60 Hz
• Input Phase: Single/Three Phase
• Torch Included: Yes
• Work Clamp Included: Yes
• Country of Origin: Poland
