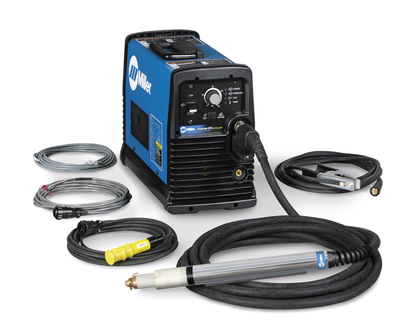

Miller Electric, 907584004, Plasma Cutter, 0.87 in max thickness (Mild Steel); 50 A, 208-600 V, 18.5 in length; 50/60 Hz

Compact, 54 lb, multi-voltage (208-575V 1/3PH) unit cuts up to 7/8” mild steel.

Includes

• XT60M long-body machine torch with 50-ft. (15.2 m) cable. Includes a complete set of 60 A consumables.
• Heavy-duty work clamp and flexible cable with quick connect
• Spectrum 875 Auto-Line
• Extra consumables
• 10-ft. (3 m) power cord

Features

• Factory ready CNC/Automation models are available in long or short body torches as well as retrofit kits to convert hand held machines to be capable of CNC/Automation cutting.
• Provides ultimate customer convenience by automatically controlling the pilot arc when cutting expanded metal or multiple pieces of metal. The pilot arc will switch in and out as fast as needed when cutting expanded metal and provides maximum power for cutting thicker metal—all automatically! No need for manual re-triggering which reduces user hand fatigue.
• The rated cutting capacity is based on traveling approximately 15 inches per minute to achieve a steady, precise cut. This is the key rating that should meet or exceed your typical cutting thickness requirements.
• Wind Tunnel Technology prevents abrasive dust and particles from damaging internal components. Fan-On-Demand cooling system operates only when needed. In dirty or dusty environments, this feature reduces the amount of airborne dust/dirt pulled through the unit
• Use with generator power at or above 10 kW (e.g. Bobcat™) or equivalent competitive equipment.
• The unit automatically compensates for input pressure variation to provide constant recommended torch pressure for optimum cutting and gouging performance.
• Torch and work cable offer the fastest plasma torch and work cable connection and removal in the industry.
• Allows hookup to either single-phase or three-phase primary input voltage, 208-600 volts dependent on the machine, with no manual linking, providing convenience in any job setting. An ideal solution for dirty or unreliable input power.

Does Not Include

• Power plug
• Personal safety products (safety glasses, gloves)
• Air source (compressor or bottled gas)

• Input Voltage: 208-600 V, single-phase or three-phase
• Consumable Amperage: 60 A
• Cutting Capacity - Mild Steel: 7/8 in.
• Weight: 54 lb
• Length: 18.5 in.
• Width: 8.75 in.
• Height: 13.5 in.
• Input Frequency: 50/60 Hz
• Travel Speed - Mild Steel (IPM): 15
• Travel Speed - Stainless Steel (IPM): 15
• Travel Speed - Aluminum (IPM): 15
• Max Thickness - Mild Steel: 7/8 in.
• Max Thickness - Stainless Steel: 7/8 in.
• Max Thickness - Aluminum: 5/8 in.
• Capability Gouging: Yes
• Recommended Generator Power: 11000 W
• Metal Type: Mild Steel, Stainless Steel, Aluminum
• Country of Origin: United States
