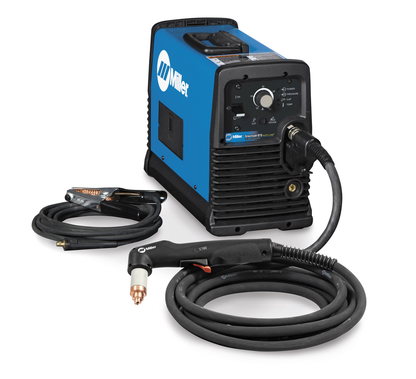

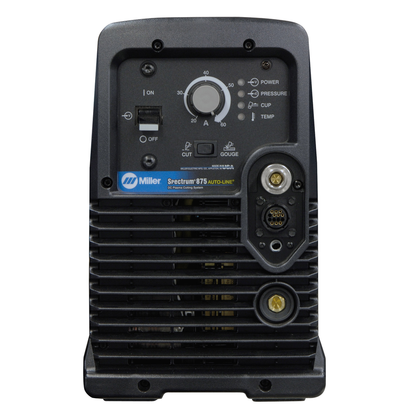

Miller Electric, 907584, Plasma Cutter, 7/8 in. Mild Steel; 5/8 in. Aluminum; 208-575 V Multi-Voltage

Compact, 54 lb, multi-voltage (208-575V 1/3PH) unit cuts up to 7/8” mild steel.

Features

• Wind Tunnel Technology prevents abrasive dust and particles from damaging internal components. Fan-On-Demand cooling system operates only when needed. In dirty or dusty environments, this feature reduces the amount of airborne dust/dirt pulled through the unit
• The rated cutting capacity is based on traveling approximately 15 inches per minute to achieve a steady, precise cut. This is the key rating that should meet or exceed your typical cutting thickness requirements.
• Torch and work cable offer the fastest plasma torch and work cable connection and removal in the industry.
• Factory ready CNC/Automation models are available in long or short body torches as well as retrofit kits to convert hand held machines to be capable of CNC/Automation cutting.
• The unit automatically compensates for input pressure variation to provide constant recommended torch pressure for optimum cutting and gouging performance.
• Allows hookup to either single-phase or three-phase primary input voltage, 208-600 volts dependent on the machine, with no manual linking, providing convenience in any job setting. An ideal solution for dirty or unreliable input power.
• Provides ultimate customer convenience by automatically controlling the pilot arc when cutting expanded metal or multiple pieces of metal. The pilot arc will switch in and out as fast as needed when cutting expanded metal and provides maximum power for cutting thicker metal—all automatically! No need for manual re-triggering which reduces user hand fatigue.
• Use with generator power at or above 10 kW (e.g. Bobcat™) or equivalent competitive equipment.

Includes

• Heavy-duty work clamp and flexible cable with quick connect
• Extra consumables
• XT60 hand-held torch with 20-ft. (6 m) cable. Includes a complete set of 60 A consumables.
• 10-ft. (3 m) power cord
• Spectrum 875 Auto-Line

Does Not Include

• Personal safety products (safety glasses, gloves)
• Power plug
• Air source (compressor or bottled gas)

• Input Voltage: 208 V|220/230/240 V|380/400/440 V|460/480 V|575 V
• Rated Output: 3-Phase: 208-575 V, 60 A at 140 VDC, 40-60% duty cycle; 1-Phase: 208-230 V, 50-60 A at 140 VDC, 40-50% duty cycle
• Input Frequency: 50/60 Hz
• Cutting Capacity: 7/8 in.
• Max Thickness - Mild Steel: 7/8 in.
• Max Thickness - Stainless Steel: 7/8 in.
• Max Thickness - Aluminum: 5/8 in.
• Travel Speed - Mild Steel: 15 IPM
• Travel Speed - Stainless Steel: 15 IPM
• Travel Speed - Aluminum: 15 IPM
• Capability Gouging: True
• Length: 18.5 in.
• Width: 8.75 in.
• Height: 13.5 in.
• Weight: 54 lb
• Metal Type: Mild Steel, Stainless Steel, Aluminum
• Torch Type: XT60 hand-held
• Torch Cable Length: 20 ft
• Power Cord Length: 10 ft
• Recommended Generator Power: 11,000 W
• Country of Origin: United States
