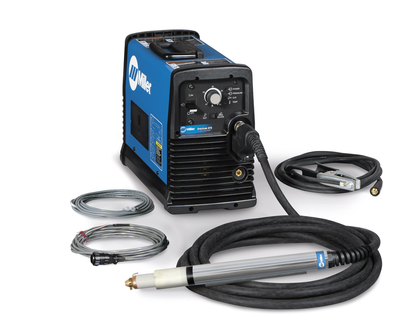

Miller Electric, 907583002, Plasma Cutter, 25-ft. Cable, 11000 W Generator Power, Max Thickness 7/8 in. Mild Steel, XT60 Long-Body Torch

Compact, 51 lb, 230/208V 1 PH unit provides plenty of power for 7/8 in. mild steel cutting.

Includes

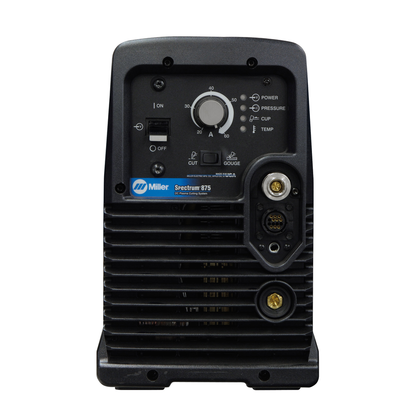

• Spectrum 875
• Extra consumables
• 10-ft. (3 m) power cord
• Heavy-duty work clamp and flexible cable with quick connect
• XT60M long-body machine torch with 25-ft. (7.6 m) cable. Includes a set of 60 A consumables.

Features

• The fastest plasma torch and work cable connection and removal in the industry.
• Provides ultimate customer convenience by automatically controlling the pilot arc when cutting expanded metal or multiple pieces of metal. The pilot arc will switch in and out as fast as needed when cutting expanded metal and provides maximum power for cutting thicker metal—all automatically! No need for manual re-triggering which reduces user hand fatigue.
• Wind Tunnel Technology prevents abrasive dust and particles from damaging internal components. Fan-On-Demand cooling system operates only when needed. In dirty or dusty environments, this feature reduces the amount of airborne dust/dirt pulled through the unit
• Work cable and clamp make for fast and easy setup and storage. The new ultra flexible Quick Connect work lead comes with a smaller heavy duty clamp.
• Factory ready CNC/Automation models are available in long or short body torches as well as retrofit kits to convert hand held machines to be capable of CNC/Automation cutting.
• The unit automatically compensates for input pressure variation to provide constant recommended torch pressure for optimum cutting and gouging performance.
• Use with generator power at or above 10 kW (e.g. Bobcat™) or equivalent competitive equipment.
• The rated cutting capacity is based on traveling approximately 15 inches per minute to achieve a steady, precise cut. This is the key rating that should meet or exceed your typical cutting thickness requirements.

Does Not Include

• Air source (compressor or bottled gas)
• Personal safety products (safety glasses, gloves)

• Rated Output: 208 V: 60 A at 140 VDC, 40% duty cycle; 230 VDC: 60 A at 140 VDC, 50% duty cycle
• Input Voltage: 208 V, 220/230/240 V
• Input Frequency: 50/60 Hz
• Cutting Capacity: 7/8 in. (22.2 mm)
• Travel Speed - Mild Steel (IPM): 15
• Travel Speed - Stainless Steel (IPM): 15
• Travel Speed - Aluminum (IPM): 15
• Display Max Thickness - Mild Steel: 7/8 in. (22.2 mm)
• Display Max Thickness - Stainless Steel: 7/8 in. (22.2 mm)
• Display Max Thickness - Aluminum: 5/8 in. (15.9 mm)
• Max Thickness - Mild Steel: 0.88 in.
• Max Thickness - Stainless Steel: 0.88 in.
• Max Thickness - Aluminum: 0.63 in.
• Capability Gouging: True
• Recommended Generator Power: 11000 W
• Phase: 1 PH
• Length: 18.75 in.
• Width: 8.75 in.
• Height: 13.5 in.
• Weight: 51 lb
• Cable Length: 25 ft
• Power Cord Length: 10 ft
• Torch Model: XT60 Long-Body
• Metal Type: Mild Steel, Stainless Steel, Aluminum
• Country of Origin: United States
