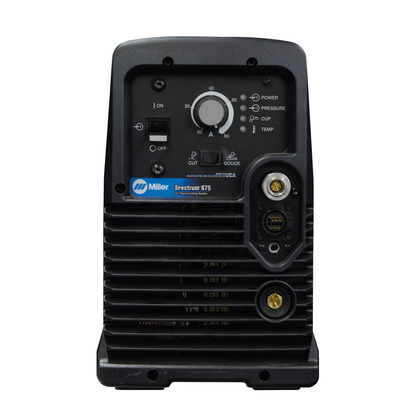

Miller Electric, 907583, Plasma Cutter, 20 ft Cable, XT60 Torch, Max Thickness 0.88 in, 11000 W Generator Power

Compact, 51 lb, 230/208V 1 PH unit provides plenty of power for 7/8 in. mild steel cutting.

Does Not Include

• Personal safety products (safety glasses, gloves)
• Air source (compressor or bottled gas)
• Weld leads

Includes

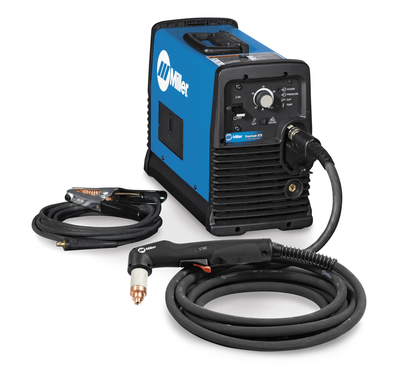

• XT60 hand-held torch with 20-ft. (6 m) cable. Includes a complete set of 60 A consumables.
• Spectrum 875
• 10-ft. (3 m) power cord
• Heavy-duty work clamp and flexible cable with quick connect
• Extra consumables

Features

• Provides ultimate customer convenience by automatically controlling the pilot arc when cutting expanded metal or multiple pieces of metal. The pilot arc will switch in and out as fast as needed when cutting expanded metal and provides maximum power for cutting thicker metal—all automatically! No need for manual re-triggering which reduces user hand fatigue.
• The rated cutting capacity is based on traveling approximately 15 inches per minute to achieve a steady, precise cut. This is the key rating that should meet or exceed your typical cutting thickness requirements.
• Use with generator power at or above 10 kW (e.g. Bobcat™) or equivalent competitive equipment.
• Factory ready CNC/Automation models are available in long or short body torches as well as retrofit kits to convert hand held machines to be capable of CNC/Automation cutting.
• The fastest plasma torch and work cable connection and removal in the industry.
• Work cable and clamp make for fast and easy setup and storage. The new ultra flexible Quick Connect work lead comes with a smaller heavy duty clamp.
• The unit automatically compensates for input pressure variation to provide constant recommended torch pressure for optimum cutting and gouging performance.
• Wind Tunnel Technology prevents abrasive dust and particles from damaging internal components. Fan-On-Demand cooling system operates only when needed. In dirty or dusty environments, this feature reduces the amount of airborne dust/dirt pulled through the unit

• Voltage: 208 V, 220/230/240 V, 50/60 Hz
• Rated Output: 60 A at 140 VDC, 40-50% duty cycle
• Cutting Capacity: 7/8 in. (22.2 mm) Mild Steel, Stainless Steel
• Cutting Speed: 15 in/min
• Length: 18.75 in.
• Width: 8.75 in.
• Height: 13.5 in.
• Weight: 49 lb
• Torch Model: XT60
• Cable Length: 20 ft
• Power Cord Length: 10 ft
• Capability Gouging: Yes
• Metal Compatibility: Mild Steel, Stainless Steel, Aluminum
• Max Thickness - Aluminum: 5/8 in. (15.9 mm)
• Recommended Generator Power: 11000 W
• Country of Origin: United States
