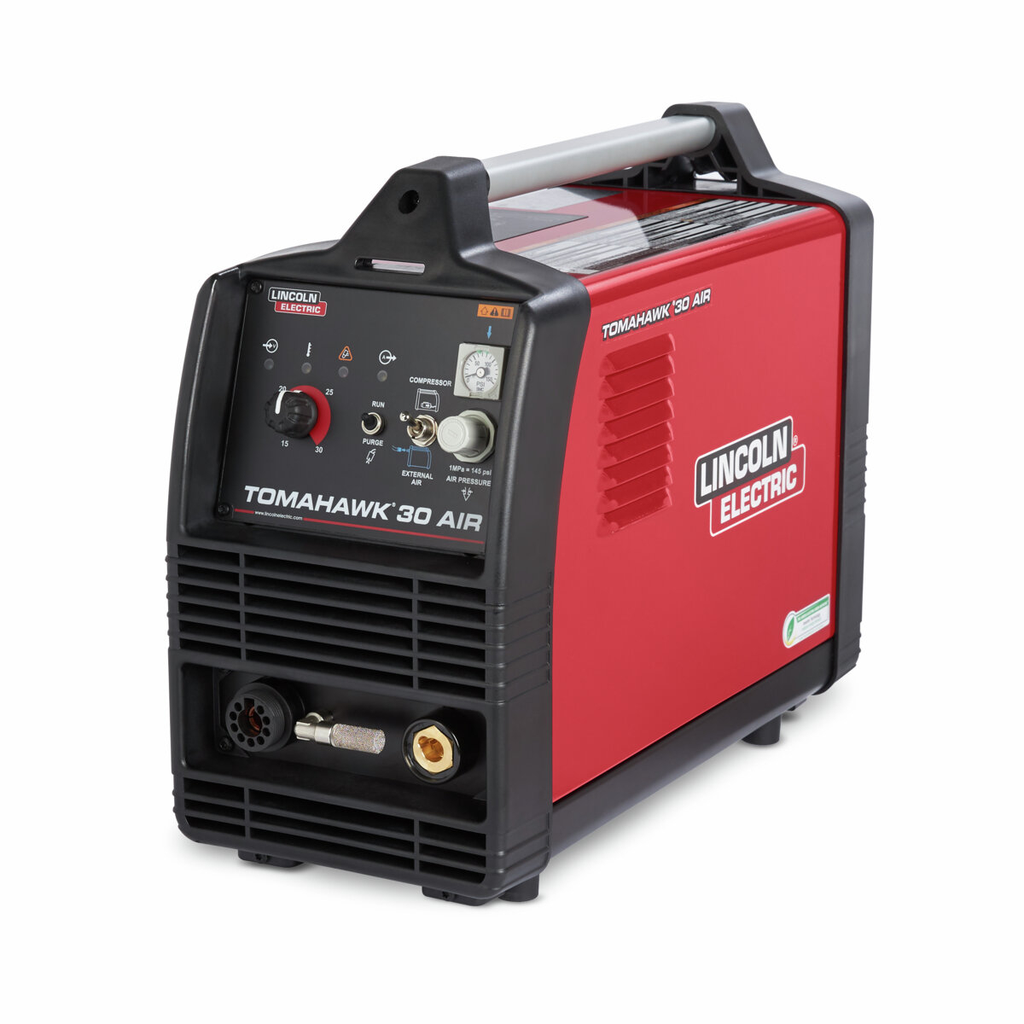

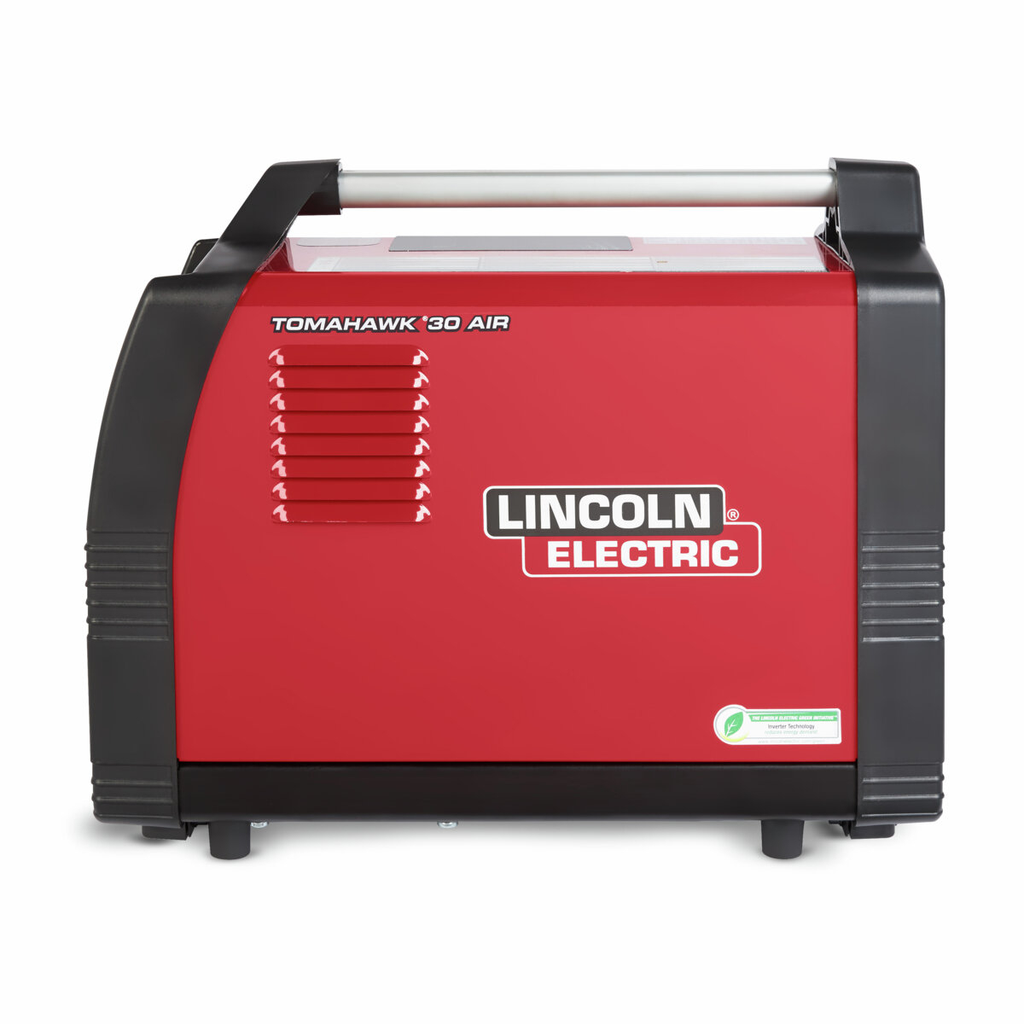

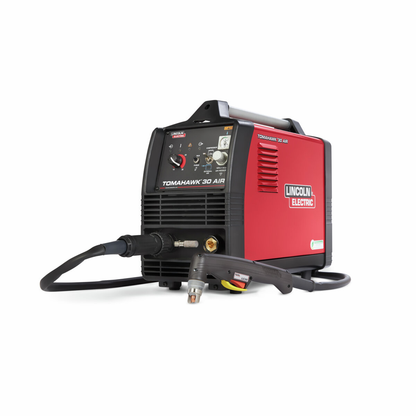

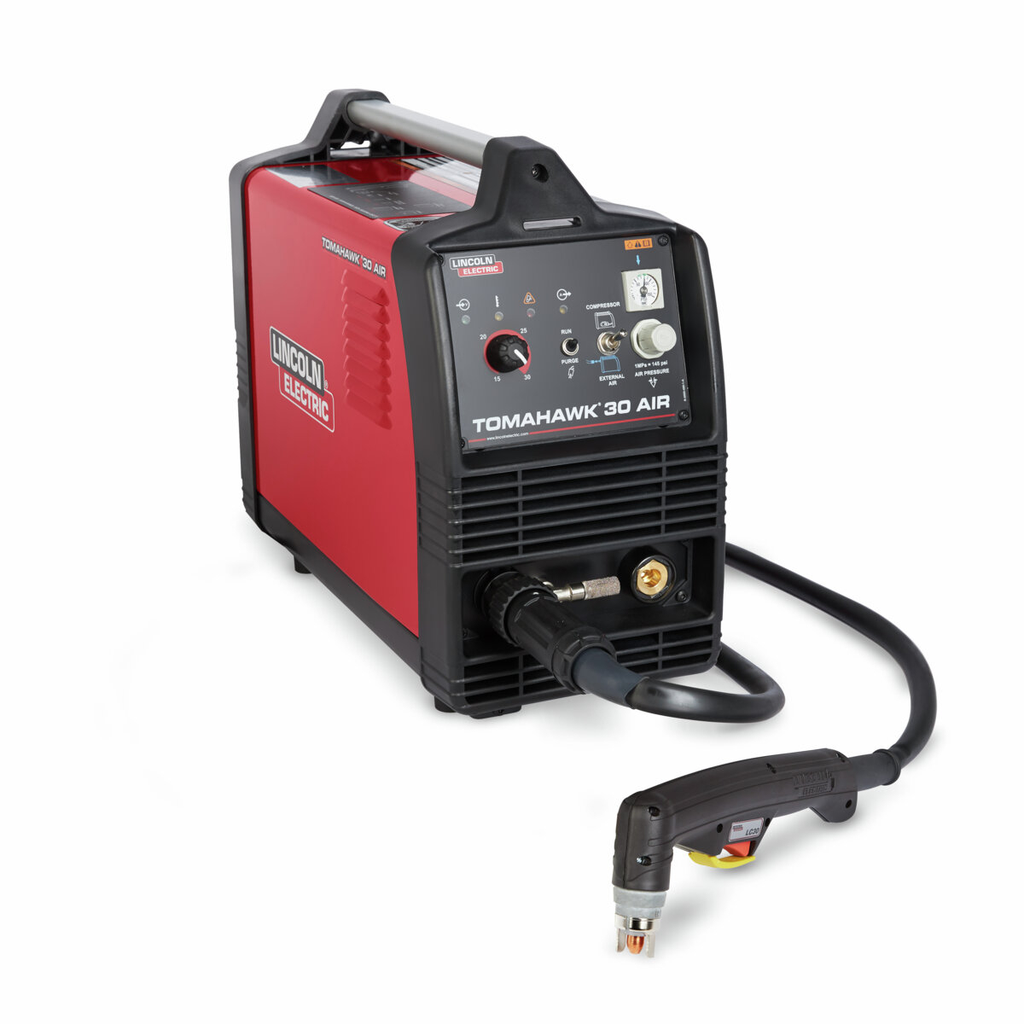

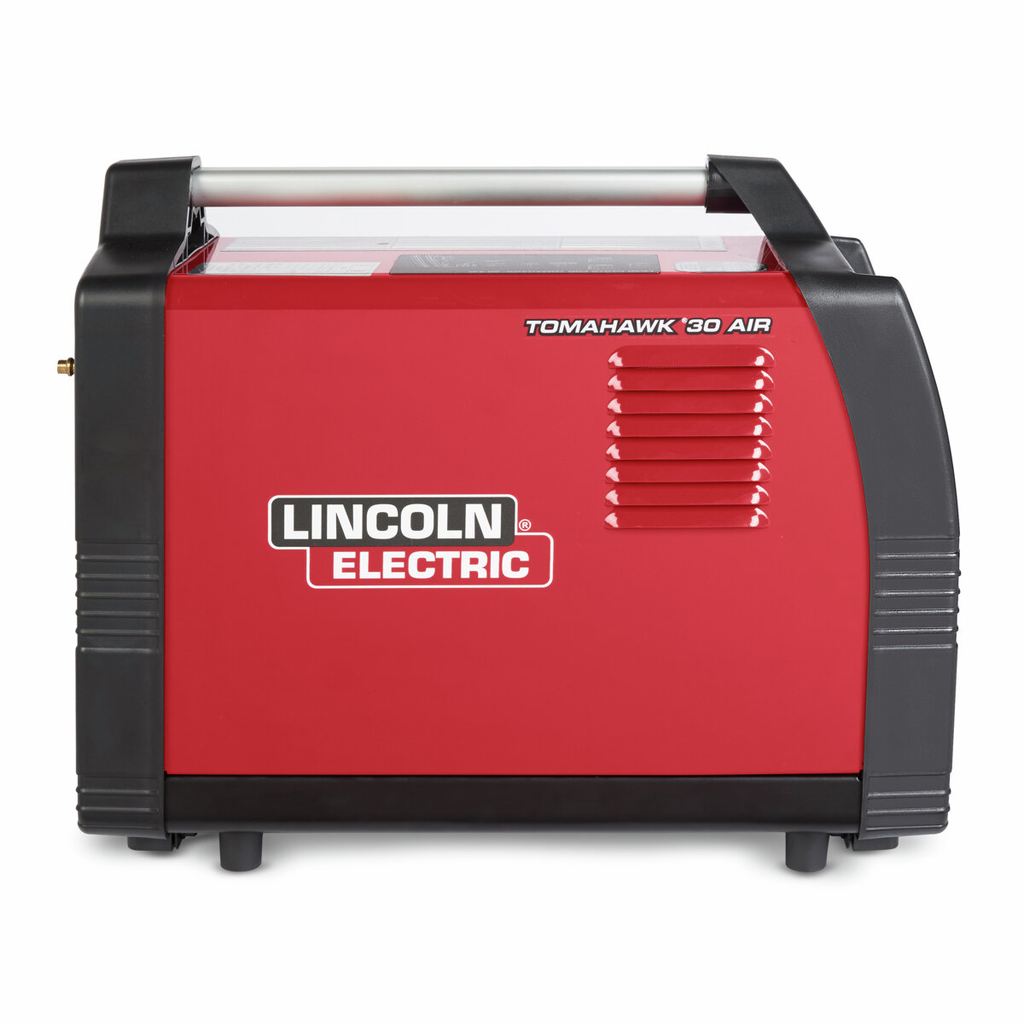

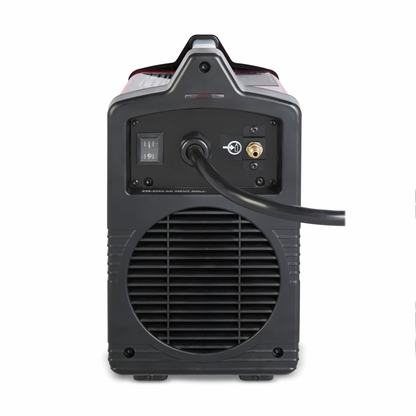

Lincoln Electric, K5457-1, Plasma Cutter, 30A; 90V; 10 ft Hand Torch; Built-in Air Compressor; Inverter Technology

PLASMA CUTTING WITH BUILT-IN AIR - The Tomahawk® 30 Air plasma cutting system arrives ready to go for fast and precise cutting. With its built-in air compressor, this machine is perfect for anyone who needs a reliable, portable cutting tool. With the Tomahawk 30 Air, forget the grinder – simply pick up the torch and cut in seconds. Plus, it also has external air capabilities, so you can use it with an external compressor if you need to. So whether you’re working in your garage or out in the field, the Tomahawk 30 Air is the perfect tool for the job.

Features

• Ultimate Portability – Internal air compressor enables operation in environments where external compressed air is not available.
• Touch Start System – Reliable plasma arc initiation without high frequency.
• Continuous Output Control – Focus the arc for different material thickness.
• Engine Drive Compatible – Select a Lincoln Electric recommended engine driven welder / generator to power your Tomahawk in remote locations.

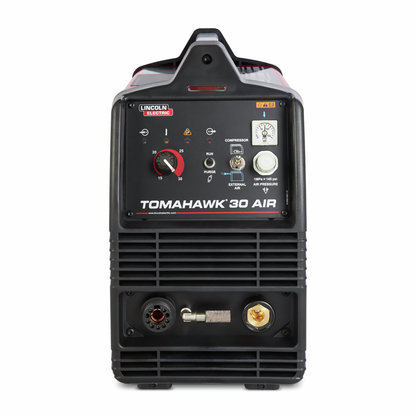

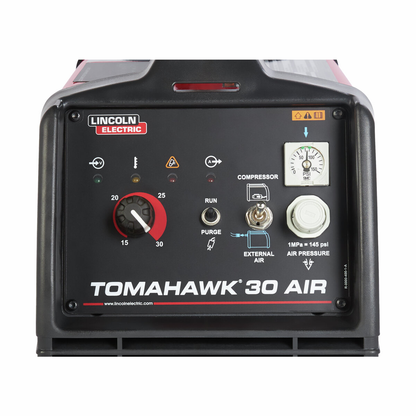

• Front Panel Purge Control – Makes it easy to set the airflow rate without initiating the plasma arc.
• Added Safety – Our Parts-in-Place system detects the correct installation of consumables and torch.
• Rapid Arc Restrike – Fast cutting through gaps, even expanded metal.
• Cool Operation, Long Consumable Life - Enhanced swirling airflow keeps the electrode and tip cool and increases the life of consumables.

What's Included?

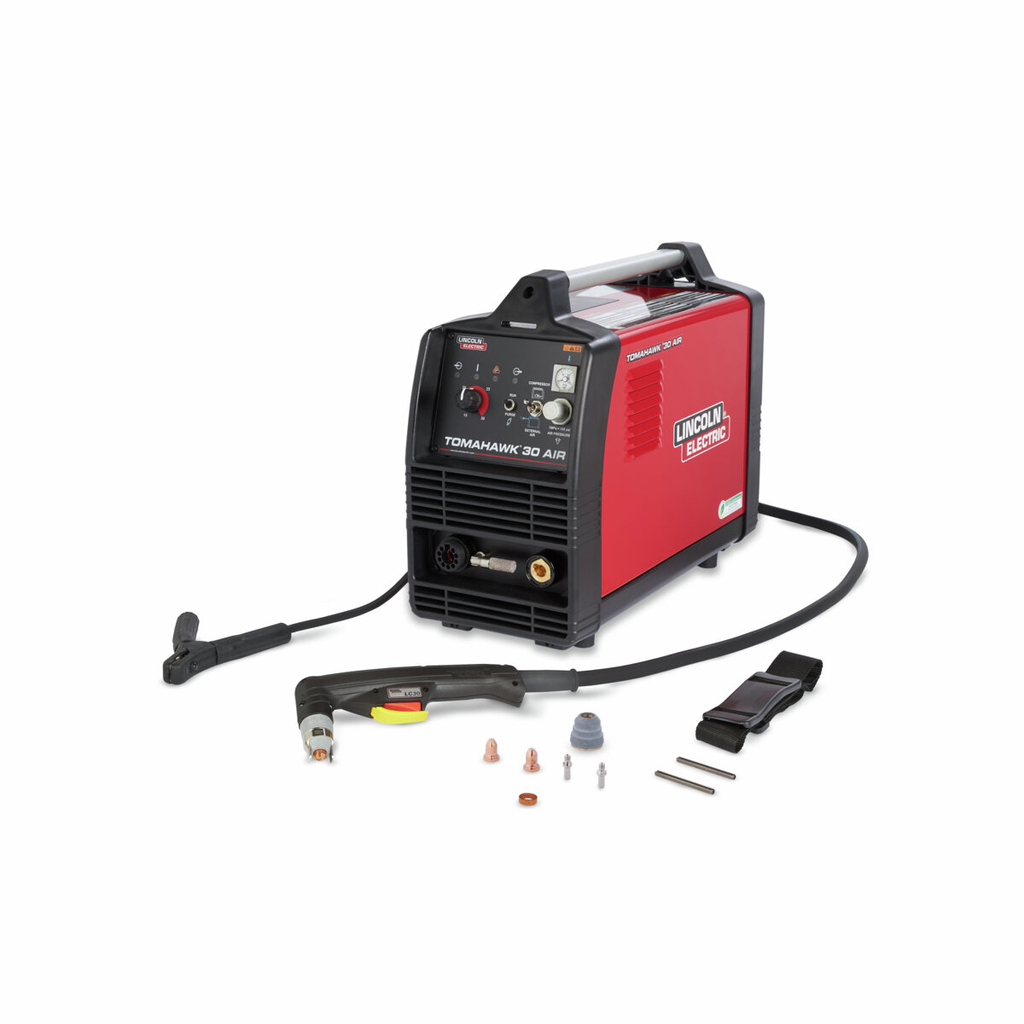

• (1) Tomahawk 30 AIR Plasma Cutter, (1) Internal Air Compressor (External Air Connection also Standard), (1) K5537-1 LC30 Hand Torch and 10 ft (3 m) Cable, (3) KP2842-1 Electrode, (3) KP2842-6 Nozzle 30A, (2) KP2842-4 Swirl Ring, (1) KP2842-3 Retaining Cap (Internal Air-2 Holes), (1) KP2842-5 Drag Spacer, (1)KP2842-47 Retaining Cap (Internal Air-6 Holes), (1) Air Regulator and Pressure Gauge, (1) Internal Water Separator, (1) Work Clamp and Cable, (1) Shoulder Strap, (1) Input Power Cord

• Output Current: 25A/90V/100%, 30A/92V/60%, range 15-30A
• Input Voltage: 230V, Single Phase, 60 Hz
• Input Current: 16A (max)
• Gas Pressure: 80-110 psi (6-7.5 bar)
• Maximum Cutting Thickness (Mild Steel): 3/8 in (9.5 mm) @ 14 ipm
• Maximum Severance Thickness (Mild Steel): 1/2 in (12.7 mm) @ 5 ipm
• Recommended Cutting Capacity (Mild Steel): 5/16 in (7.9 mm) @ 22 ipm
• Cutting Speeds (Mild Steel): Rated Cut 22 ipm, Max Cut 14 ipm, Sever Cut 5 ipm
• Torch Cable Length: 10 ft (3 m)
• Width: 8.5 in (215 mm)
• Length: 18.9 in (480 mm)
• Height: 15.2 in (385 mm)
• Weight: 40 lb (19 kg)
• Output Polarity: DC
• Gas Supply: Air or Nitrogen
• Cooling: Air
• Welding Technology: Inverter/Chopper
• Torch Included: Yes
• Work Clamp Included: Yes
• Country of Origin: Poland
• Plasma Machines Process: Cutting
• Machines Processes: Plasma Cutting
