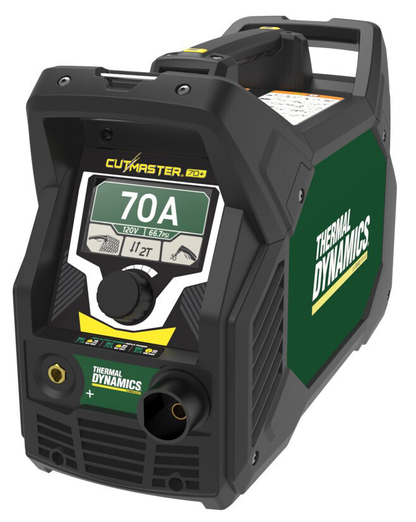

Thermal Dynamics, 1-7000-1, Plasma Cutter, 70 A; 3/4 in. cutting capacity; 4.3 in. TFT LCD display; SL60 torch

Cutmaster 70+ is the perfect combination of power and portability for hand-held plasma cutting machines. Plus means more, so we’ve added a user-friendly 10.9 cm (4.3 in.) TFT LCD screen and upgraded features that give you even more control and flexibility to master any cut up to 30 mm. Together with the SL60 1Torch, it all adds up to the total plasma cutting package.

Applications

• Light Fabrication
• Automotive Bodies
• Training Schools
• HVAC
• Repair and Maintenance
• Industrial Production & Manufacturing
• Agricultural Equipment
• Hobbyist
• Pipeline
• Industrial and General Fabrication

Accessories

• SL100 Mechanised ATC 180° 7.6 m (25 ft) 7-5215
• CNC Remote Cable 15.2 m (50 ft) 9-8312
• Shoulder Strap 0445197880
• SL60 1Torch and Lead 15.2 m (50 ft) 75° Head 7-5205
• Leather Lead Cover 6.1 m (20 ft) 9-8313
• Ground Clamp Dinse 25 mm lead (10 mm² OKC) - 3 m 0700400909
• Cutting Guide Kit 7-7501
• Leather Lead Cover 15.2 m (50 ft) 9-1260
• CNC Remote Cable 7.6 m (25 ft) 7-8911
• Multi-Purpose Cart 7-8888
• Circle Cutting Guide Kit 7-3291
• SL60 1Torch and Lead 6.1 m (20 ft) 75° Head 7-5204
• Straight Line Cutting Guide 7-8911
• SL100 Mechanised ATC 180° 15.2 m (50 ft) 7-5216

Features

• Industry leading 3-year warranty on power supply and 1-year warranty on torch and leads
• Switch between normal and grate cutting modes
• Compatible with all ATC torch connections
• Bright 10.9 cm (4.3 in.) TFT LCD display with glove friendly adjustment knob simplifies use and provides greater control and flexibility
• Portable and durable with three handles and lightweight, industrial all-weather housing
• CNC functionality with pre-installed 14 pin CPC receptacle and voltage divider which allows: 1. Start/Stop 2. OK to Move 3. Divided arc voltage: (ratio 20:1, 30:1, 40:1, 50:1, 80:1)
• Includes industrial SL60 1Torch featuring 2T/4Tfunction, safety trigger lock, and double-tap trigger to conserve bottled air
• Post-cut air purge to expand consumable lift

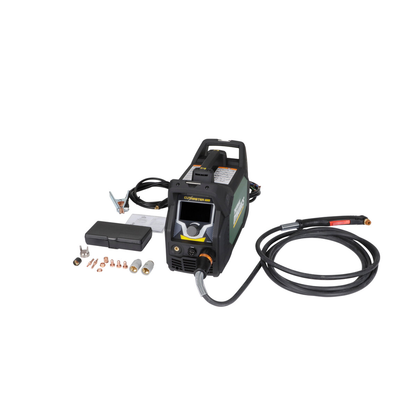

• Includes a complete package of general cutting and gouging consumables for most applications

• Output Amperage: 70 A
• Duty Cycle: 120 VAC: 40% @ 25 A, 100% @ 16 A; 240 VAC: 40% @ 70 A, 100% @ 40 A
• Maximum Cutting Capacity: 1 1/8 in.
• Recommended Cutting Capacity: 3/4 in.
• Maximum Pierce: 3/4 in.
• Maximum Severance: 1 1/2 in.
• Input Voltage: 120/240 V
• Frequency: 50/60 Hz
• Phase: Single
• Physical Size (L x W x H): 24 x 10 x 22 in.
• Torch Length: 16 Ft.
• Cable Length: 10 Ft.
• Torch Amperage: 60 A
• Torch Model: SL60
• Torch Head Degree: 75
• Torch Air Pressure: 5.2 bar (75 psi) / 189 l/min (400 cfh) air flow
• Gas: Compressed air (clean, dry, oil-free per ISO 8573-1 Class 1.2.2), Compressed Nitrogen 99.95% pure
• Display Size: 4.3 in. TFT LCD
• Country of Origin: China
