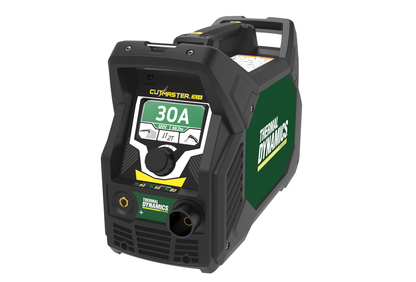

Thermal Dynamics, 1-3000-1, Plasma Cutter, 110-240 V, 30 A, Max Cutting Capacity 5/8 in, SL60 1Torch

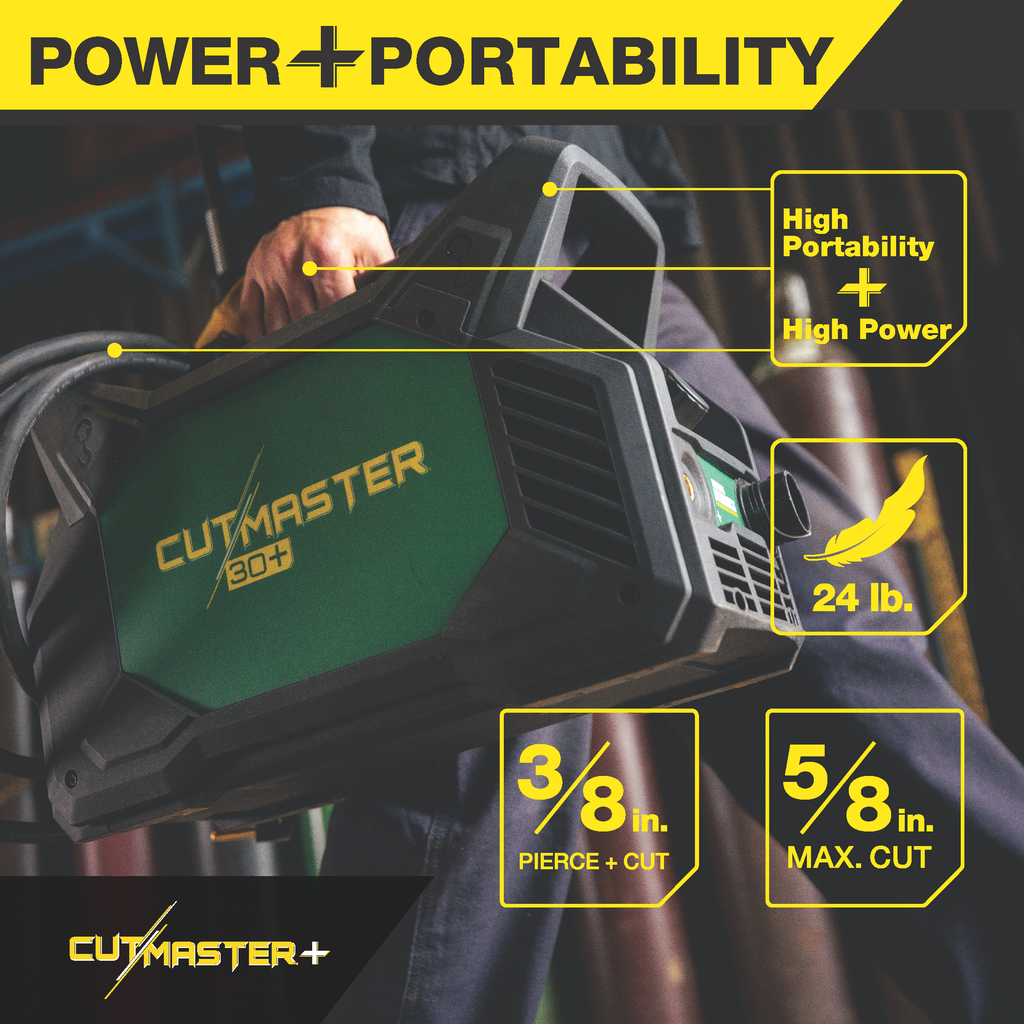

Cutmaster 30+ is the perfect combination of power and portability for hand-held plasma cutting machine. Plus means more, so we’ve added a user-friendly 4.3 in. TFT LCD screen and upgraded features that give you even more control and flexibility to master any cut up to 10 mm (3/8 in.). Together with the SL60 1Torch, it all adds up to the total plasma cutting package.

Prop 65

• Yes

Accessories

• Circle Cutting Guide 7-7501
• Single Stage Air Filter 7-7507
• SL60 1Torch and Lead 6.1 m (20 ft) 75° Head 7-5200
• SL60 1Torch and Lead 15.2 m (50 ft) 75° Head 7-5201
• Black Leather Lead Cover 25 ft 0700009089
• Single Stage Air Filter Kit 7-7507
• Two Stage Air Filter Kit 9-9387
• Yellow Leather Lead Cover, 25 ft 0700009088
• Two Stage AIr Filter Kit 9-9387
• Black Leather Lead Cover, 25 ft 0700009089
• Multi-Purpose Cart 7-8888
• Straight Line Cutting Guide 7-8911
• Cutting Circle Kit 7-7501
• Yellow Leather Lead Cover 25 ft. 0700009088
• Multi-purpose cart 7-8888
• Circle Cutting Guide Kit 7-3291

Features

• Cutmaster Black Series consumables included for up to 60% longer life
• Industry leading 3-year warranty on power supply and 1-year warranty on torch and leads
• Portable and durable with three handles and lightweight, industrial all-weather housing
• Automatic air pressure detection and post-cut air purge to expand consumable life

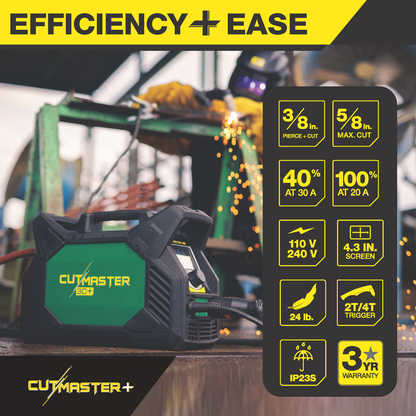

• 40% duty cycle @ 30 A, 100% @ 20 A
• IP23S
• Cutmaster 30+ is compatible with all 1Torch ATC torch connections.
• CSA
• Switch between normal and grate cutting modes
• Dual input 110-240 V, 1 ph power with automatic voltage detection that sets max output amperage

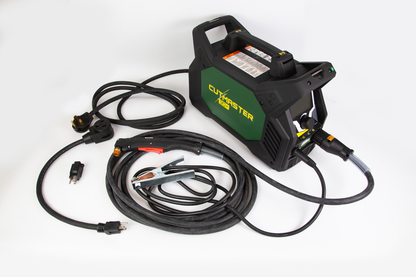

• Comes with industrial SL60 1Torch featuring 2T/4T function, safety trigger lock, and double-tap trigger to conserve bottled air

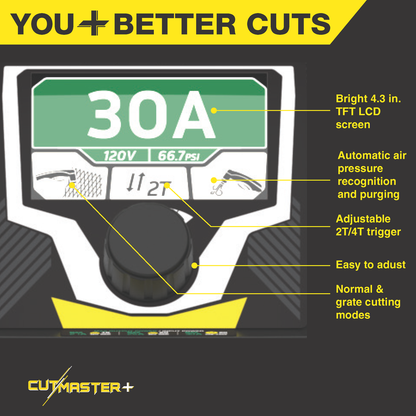

• Bright 4.3 in. TFT LCD display with glove-friendly adjustment knob simplifies use and provides greater control and flexibility

Applications

• Industrial and General Fabrication
• Repair and Maintenance
• Agricultural Equipment
• Industrial Production & Manufacturing
• Training Schools
• Pipeline
• HVAC
• Light Fabrication
• Hobbyists
• Automotive Bodies

• Voltage: 110-240 V
• Amperage: 30 A
• Duty Cycle: 40% @ 30 A, 100% @ 20 A
• Maximum Cutting Capacity: 5/8 in
• Recommended Cutting Capacity: 3/8 in
• Maximum Severance: 5/8 in
• Phase: Single
• Hz: 50/60 Hz
• Gas: Compressed
• Torch Model: SL60 1 Torch
• Torch Head Degree: 75
• Torch Length: 10 ft
• Torch Lead Length: 20 ft, 50 ft
• Cable Length: 13 ft
• Physical Size (Inches): 18.3 in x 7.9 in x 12.4 in
• Country of Origin: China
• Carcinogen: Lead
• Ingress Rating: IP23S
• Compliance: CSA
