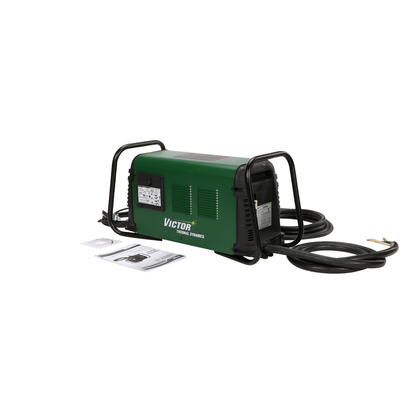

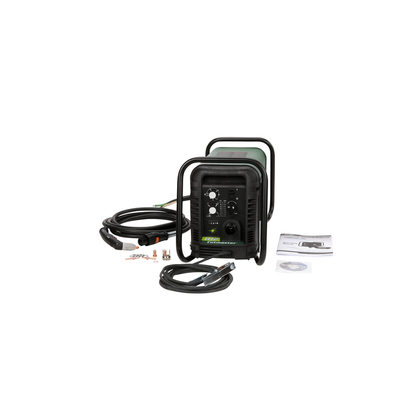

Thermal Dynamics, 1-1330-1, Plasma Cutter, 208 - 230 V, 100 A, 1 3/4 in Cutting Capacity, SL100TM Torch

Thermal Dynamics® The Cutmaster® 102 weighs in at 62 lbs and provides 100 amps of cutting power. This unit’s light weight compact design combined with multiple voltage selection makes it the most portable and powerful cutting machine available. This unit combined with the SL 100® 1Torch® has a maximum cut capacity of 1 3/4" (45 mm). More cut capacity than any other system in its class! Heavy-duty plasma cutter.

Features

• True Guard roll bar provides easy transportation and protection for unmatched durability.
• Lighter weight design for maximum portability.
• Auto Pilot Restart feature instantly reignites the pilot arc while cutting expanded metals.
• Versatile 1Torch with ATC disconnect makes it easy to add lead extensions or convert to a machine torch.
• Multi-voltage allows operation from 208 to 480 Volts in a single power supply.
• Storage compartment for convenient access to spare parts and consumables.
• Front Panel LEDs indicate status conditions for maximum efficiency.

Applications

• Construction
• General Manufacturing
• Repair and Maintenance
• HVAC
• Automotive Bodies
• Agricultural Equipment
• Training Schools
• Fabrication

Accessories

• Pinion Assembly 7 - 2827
• 3.7 m (12 ft) Track 0212 - 0018
• 1.8 m (6 ft )Track 0212 - 0005
• 2.7 m (9 ft) Track 0212 - 0019
• VCM 201 Cutting machine 0252 - 0125

Prop 65

• Yes

• Maximum Cutting Capacity: 1 3/4 in.
• Output Power: 12 kW
• Output DC Amps (Max): 100 A
• Input Voltage: 208-230 V
• Hz: 50/60 Hz
• Duty Cycle: 60% @ 100 A, 80% @ 80 A, 100% @ 70 A
• Physical Size (Inches): 15 x 12 x 30
• Weight: 62 lbs
• Maximum Pierce: 3/4 in.
• Recommended Cutting Capacity: 1 in.
• Phase: Single Phase
• Gas: Air
• Trade Name: Cutmaster 102i
• Country of Origin: Mexico
