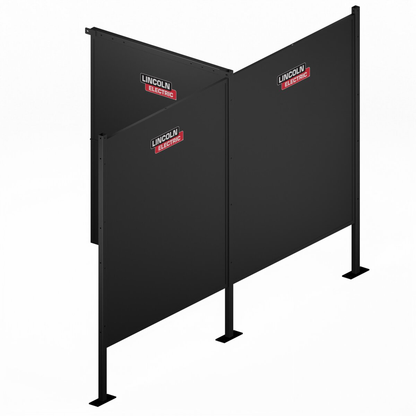

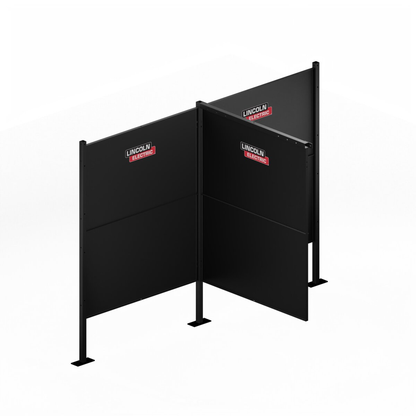

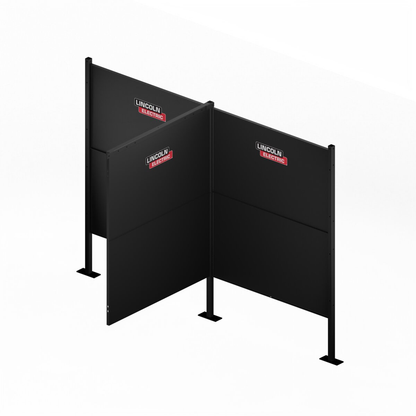

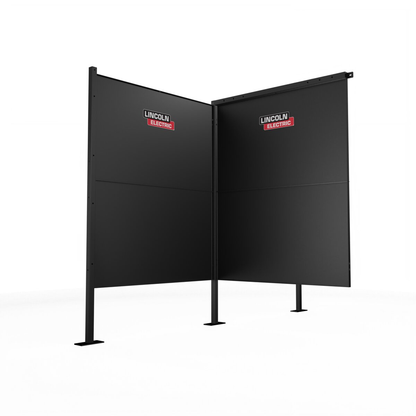

Lincoln Electric, K5737-4, Weld Booth, 5 ft; Heavy-Duty Steel, Black Powder-Coated, Back-to-Back

This should be paired with K5737-3 (Weld Booth, 5 ft., Back-to-Back Standalone (Back-to-Back Starter)) to create a row of more than one set of back-to-back booths.

Features

• Larger sized booths have enough floor space to comfortably fit both student and instructor
• Booth shape can be a square or rectangle
• Booth walls have an open space of 18 in. at the bottom of the weld booth for air circulation and safety. (Exceeds AWS EG2.0:2006 Recommendation of 12 in.)
• Adjacent booths (side-to-side or back-to-back) share dividing panels to minimize the number of panels and posts required for the layout
• Robust design, heavy-duty steel construction
• Powder-coated anti-reflective black finish paint is durable and reduces arc reflection

• Weight: 503 lbs
• Booth Size: 5 ft.
• Interior Dimensions: 5 x 5 ft (1.5 x 1.5 m)
• Exterior Dimensions: 5.5 x 11 ft (1.7 x 3.4 m)
• Height: 7.5 ft (2.23 m)
• Material: Heavy-duty Steel
• Finish: Powder-coated, Anti-reflective Black
• Panel Construction: 16 Gauge sheet metal
• Reinforced Frame: 11 Gauge angle
• Open Space at Bottom: 18 in.
• Booth Configuration: Back-to-Back Add On
• Booth Shape: Square or Rectangle
• Panel Sharing: Dividing panels shared for adjacent booths
• Compatibility: Pairs with K5737-3 Standalone Booth
• Country of Origin: United States
