Miller Electric, 951768, Multiprocess Welder, 5 A - 350 A, 208-575 V, 12 in. Spool, 10 ft. Cable

A versatile welder built for professionals in the manufacturing, fabrication, and education industries. This compact machine offers MIG, DC TIG, stick, and flux-cored capabilities.

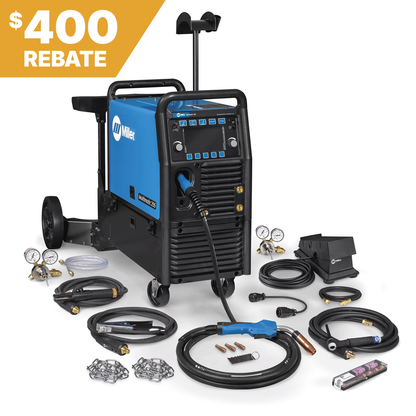

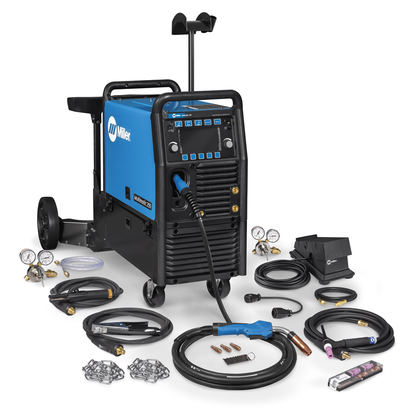

Includes

• Flow gauge regulator and gas hose for argon or AR/CO2 mix
• Power source with 10 ft. (3 m) industrial power cord
• 10 ft. (3 m) work cable w/clamp & 50 mm Dinse-style connector
• EZ-Latch™ dual cylinder running gear with elevated gun and cable rack
• 10 ft. (3 m) cable w/electrode holder & 50 mm Dinse-style connector
• Two chains to secure gas cylinders
• Material Thickness Gauge
• Multimatic 255 TIG kit
• 15 ft. (4.5 m) 250-amp MDX™-250 MIG gun w/Bernard® AccuLock™ S consumables for .035/.045 in. (0.9/1.2 mm) wire
• Extra contact tips

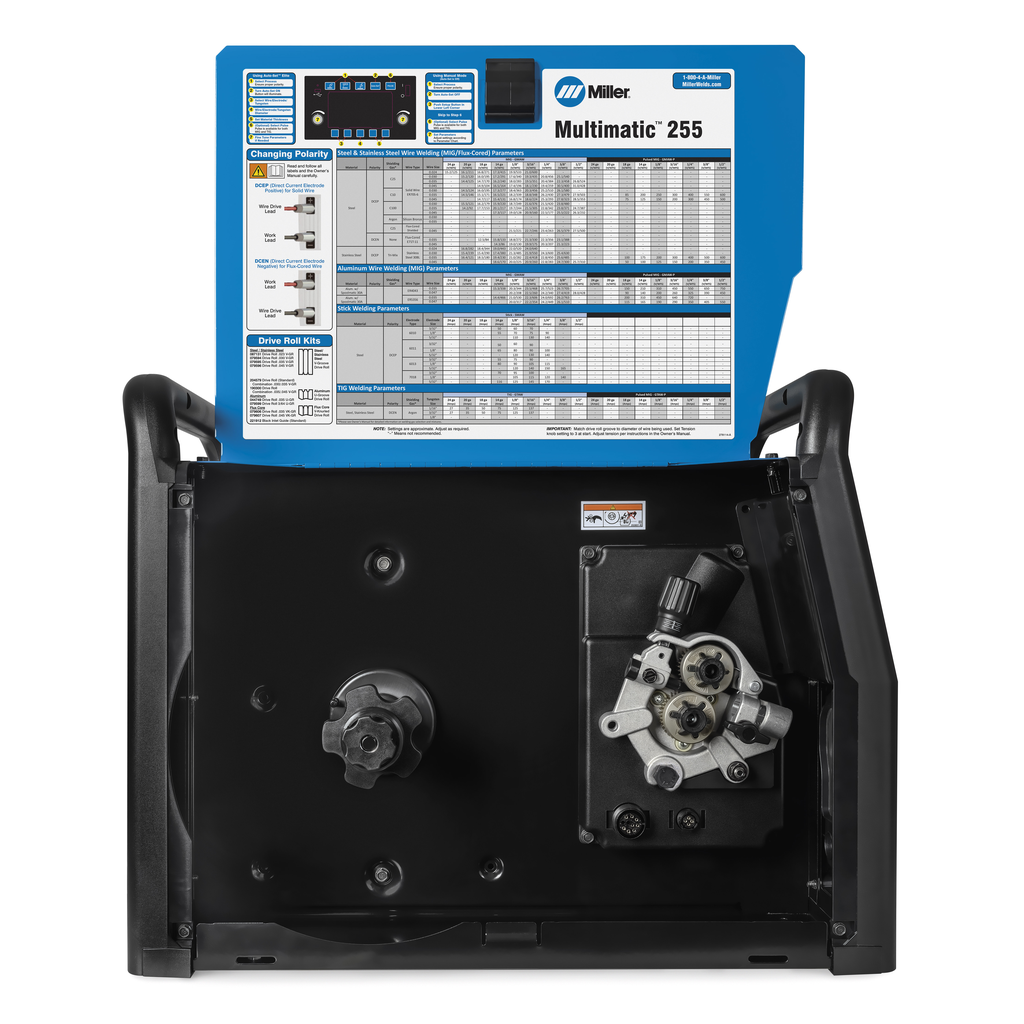

• .035/.045 in. (0.9/1.2 mm) reversible drive rolls

Features

• The Multimatic 255 will be able to operate and provide full output when powered by generators with 12000 Watt (12K) output or higher. Limited output will occur when used with smaller generators.

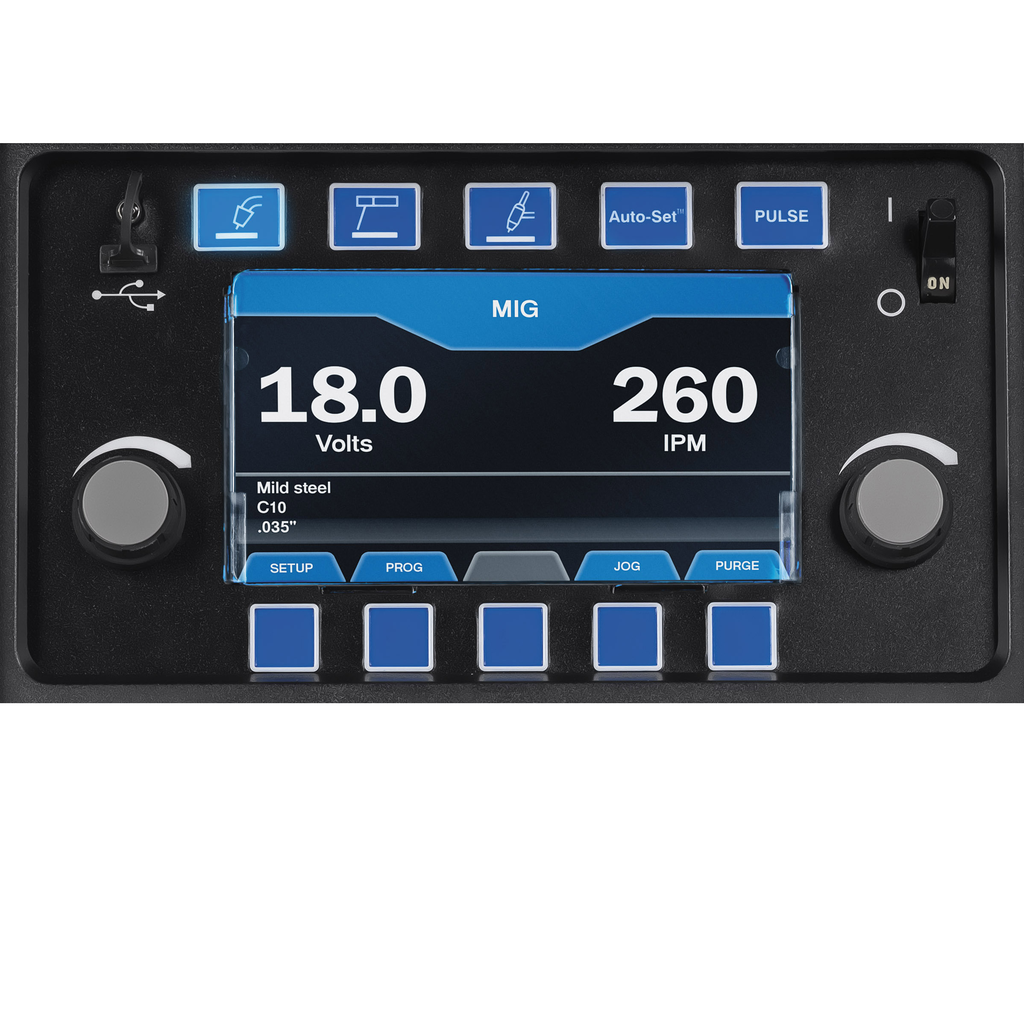

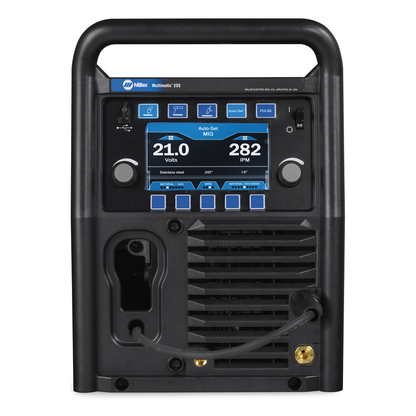

• 7-inch color LCD display ensures proper machine setup and parameter selection, reducing setup time and increasing weld time
• Offers predefined weld settings to increase ease of use and ensure that the job is done right for operators of all skill levels.
• Weight is reduced by more than 50 percent compared to transformer welding machines

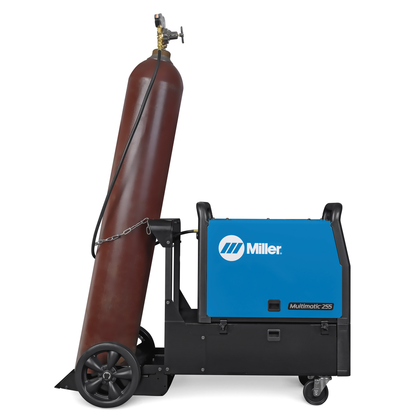

• Quickly disconnects from the machine and enables portability. Dual cylinder rack and storage compartment. Allows operator to easily store two gas cylinders. Includes elevated gun and cable rack to keep cables off the floor and tangle free.
• Lower heat input for less distortion on thin materials, less spatter minimizes post weld grinding and rework allowing more welding time. Perform welding applications that couldn’t be done in the past
• AccuLock liner loads from the front and locks at the front and back to insure proper alignment for flawless wire feed path. New rubber overmold and ball -and-socket handle design improves grip and reduces welder fatigue. New Industrial Bernard AccuLock™ S contact tips provide superior Spray and Pulsed MIG arc performance.
• Superior Stick arc performance even on the difficult-to-run electrodes like E6010.
• Deliver more productivity, consistent quality by welders of all skill levels by using prequalified weld settings. Minimize supervisor need to intervene.

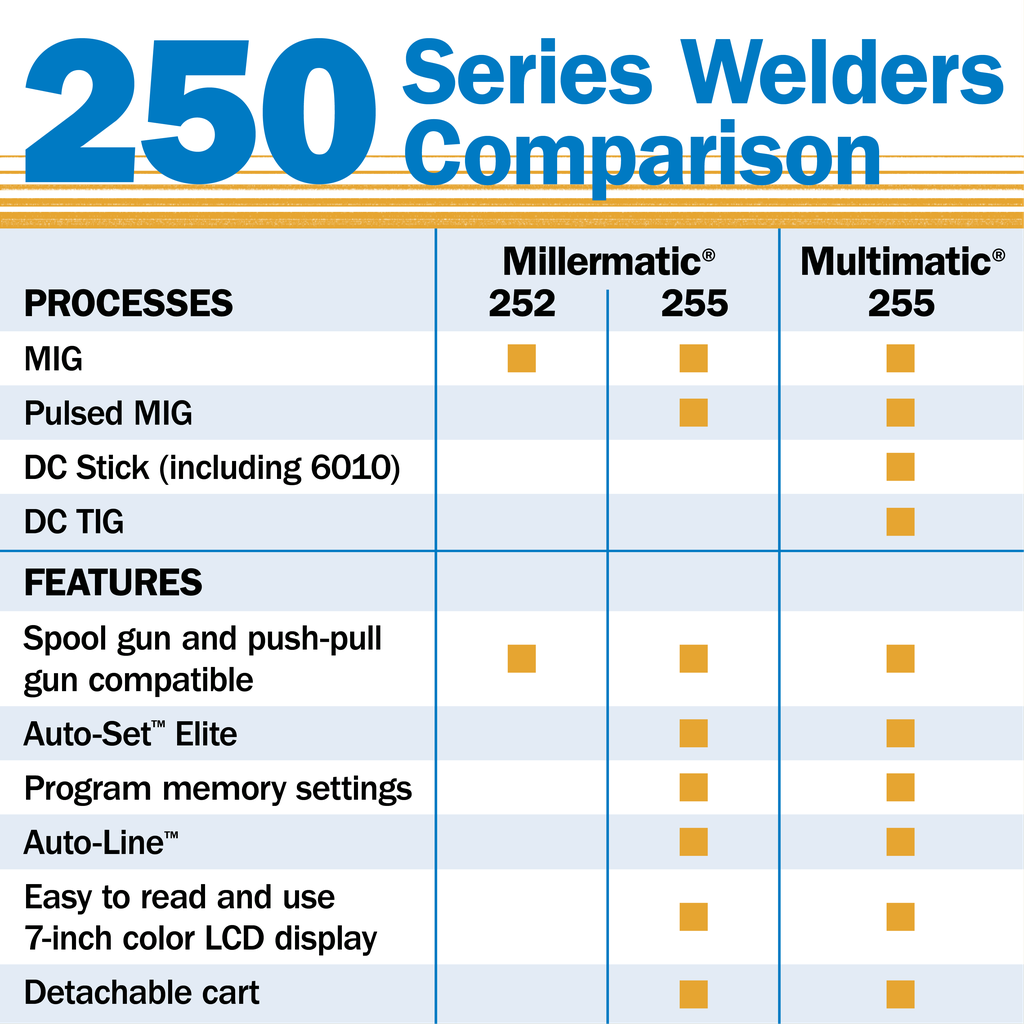

• Multiprocess Capabilities of MIG, Pulsed MIG, Stick (6010), DC Lift Arc TIG and DC Pulsed TIG
• Provides the ability to easily update software, back-up settings and transfer saved weld programs from one unit to the next.
• Provides control of the weld parameter ranges minimizing deviations from the welding procedure specifications (WPS).

Does Not Include

• Push-Pull Gun (for welding aluminum)
• Flux cored drive rolls (for welding with flux cored wire [FCAW])
• Spool Gun (for welding aluminum)
• Shielding gas (for welding with solid wire [GMAW])
• Personal safety products (helmet, gloves)
• Welding wire
• Weld leads

• Voltage: 208-575 V
• Amperage Range: 5 A - 350 A
• Amperage Min: 5 A
• Amperage Max: 350 A
• Weld Output: CC / CV
• Input Frequency: 50/60 Hz
• Max Open Circuit Voltage: 81 VDC
• Max Wire Feed Speed: 20 m/min (800 IPM)
• Min Wire Feed Speed: 1.3 m/min (50 IPM)
• Spool Size: 12 in.
• Material Thickness Range: Mild Steel 22 ga. - 1/2 in. (MIG), 24 ga. - 3/8 in. (TIG), 16 ga. - 5/16 in. (Stick), Aluminum 18 ga. - 1/2 in. (MIG)
• Display Min Thickness Mild Steel: 22 ga.
• Display Max Thickness Mild Steel: 1/2 in.
• Weldable Metals: Aluminum, Stainless Steel, Steel
• Welding Processes: MIG, Pulsed MIG, Stick, DC Lift Arc TIG, DC Pulsed TIG
• Wire Size: .035/.045 in (0.9/1.2 mm) reversible

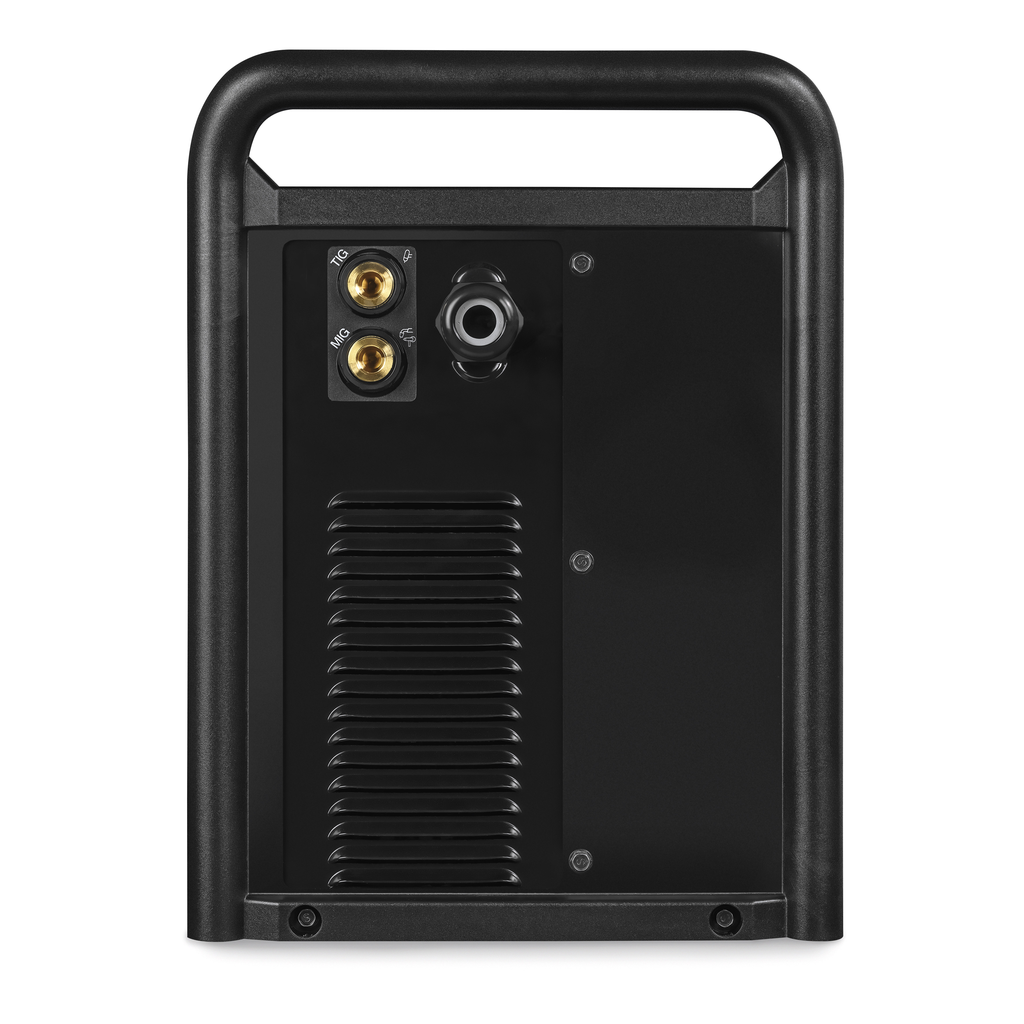

• Cable Connectors: 50 mm Dinse-style
• MIG Gun Length: 15 ft
• MIG Gun Amperage: 250 A
• Power Cord Length: 10 ft
• Work Cable Length: 10 ft
• Input Phase: 1-Phase
• Current Type: DC
• Display Size: 7 inch LCD
• Country of Origin: United States
