Miller Electric, 951767, Multiprocess Welder, 350 A Max, 208-575 V, MIG; Stick; TIG, EZ-Latch Running Gear

A versatile welder built for professionals in the manufacturing, fabrication, and education industries. This compact machine offers MIG, DC TIG, stick, and flux-cored capabilities.

Features

• AccuLock liner loads from the front and locks at the front and back to insure proper alignment for flawless wire feed path. New rubber overmold and ball -and-socket handle design improves grip and reduces welder fatigue. New Industrial Bernard AccuLock™ S contact tips provide superior Spray and Pulsed MIG arc performance.
• Lower heat input for less distortion on thin materials, less spatter minimizes post weld grinding and rework allowing more welding time. Perform welding applications that couldn’t be done in the past

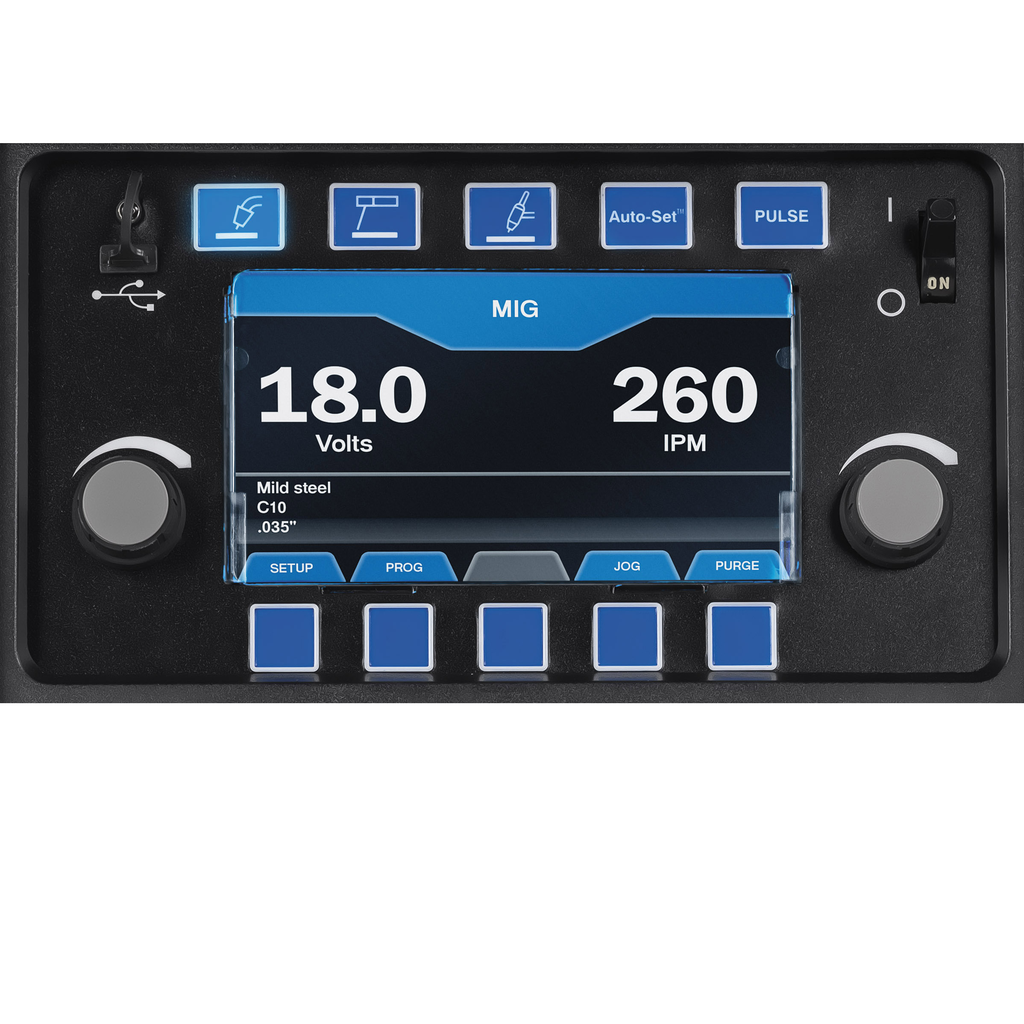

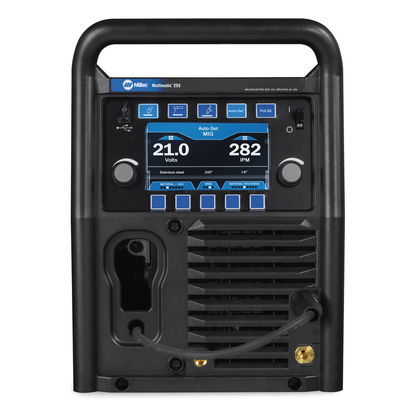

• 7-inch color LCD display ensures proper machine setup and parameter selection, reducing setup time and increasing weld time
• Weight is reduced by more than 50 percent compared to transformer welding machines
• Offers predefined weld settings to increase ease of use and ensure that the job is done right for operators of all skill levels.
• Provides control of the weld parameter ranges minimizing deviations from the welding procedure specifications (WPS).
• Superior Stick arc performance even on the difficult-to-run electrodes like E6010.

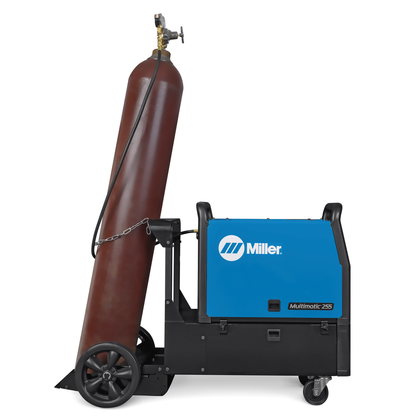

• Operators no longer need to use lift truck to load machine and running gear into the truck. Latches secure machine to running gear. Simply loosen the latch retaining knob and rotate latches to disengage machine from running gear for easy portability
• Provides the ability to easily update software, back-up settings and transfer saved weld programs from one unit to the next.
• Deliver more productivity, consistent quality by welders of all skill levels by using prequalified weld settings. Minimize supervisor need to intervene.
• The Multimatic 255 will be able to operate and provide full output when powered by generators with 12000 Watt (12K) output or higher. Limited output will occur when used with smaller generators.
• Multiprocess Capabilities of MIG, Pulsed MIG, Stick (6010), DC Lift Arc TIG and DC Pulsed TIG

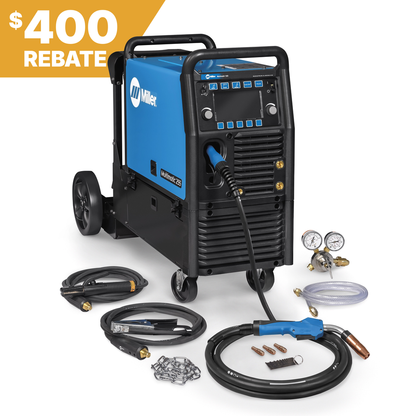

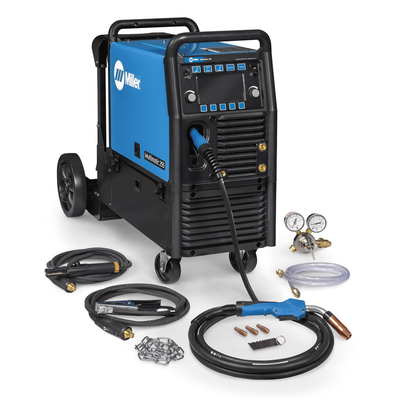

Includes

• Material Thickness Gauge
• Power source with 10 ft. (3 m) power cord
• Flow gauge regulator and gas hose for argon or AR/CO2 mix
• EZ-Latch™ single-cylinder running gear
• 15 ft. (4.5 m) 250-amp MDX™-250 MIG gun w/Bernard® AccuLock™ S consumables for .035/.045 in. (0.9/1.2 mm) wire
• 10 ft. (3 m) work cable w/clamp & 50 mm Dinse-style connector
• Extra contact tips
• .035/.045 in. (0.9/1.2 mm) reversible drive rolls
• 10 ft. (3 m) cable w/electrode holder & 50 mm Dinse-style connector
• Chain to secure gas cylinder

Does Not Include

• Personal safety products (helmet, gloves)
• Shielding gas (for welding with solid wire [GMAW])
• Push-Pull Gun (for welding aluminum)
• Welding wire
• Flux cored drive rolls (for welding with flux cored wire [FCAW])
• Spool Gun (for welding aluminum)

• Amperage Range: 5 A - 350 A
• Input Voltage: 208 V, 220/230/240 V, 460/480 V, 575 V
• Max Open Circuit Voltage: 81 VDC
• Min Wire Feed Speed: 50 IPM / 1.3 m/min
• Max Wire Feed Speed: 800 IPM / 20 m/min
• Weld Output: CC / CV
• Process Capabilities: MIG, Pulsed MIG, Stick (6010), DC Lift Arc TIG, DC Pulsed TIG
• Wire Diameter: .035/.045 in (0.9/1.2 mm)
• MIG Gun Length: 15 ft
• Power Cord Length: 10 ft
• Spool Size: 12 in.
• Material Thickness Display: Mild Steel 22 ga. - 1/2 in. (MIG), 24 ga. - 3/8 in. (TIG), 16 ga. - 5/16 in. (Stick); Aluminum 18 ga. - 1/2 in. (MIG)
• Display Size: 7 in
• Amperage Min: 5 A
• Amperage Max: 350 A
• Weldable Metals: Aluminum, Stainless Steel, Steel
• Input Phase: 1-Phase
• Current Type: DC
• Country of Origin: United States
