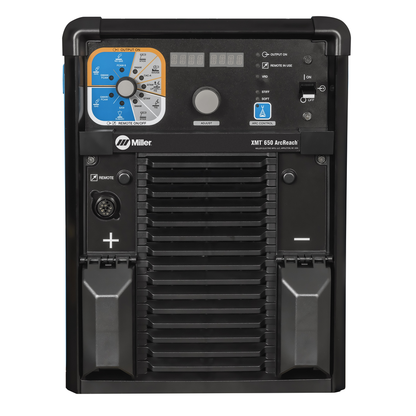

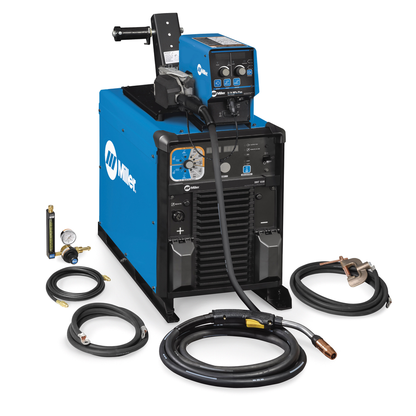

Miller Electric, 951000067, Multiprocess Welder, MIG; TIG; STICK, 650 A, 3-Phase, 460 V, ArcReach

Cuts expenses and maintenance with the new XMT 650® ArcReach® Systems, eliminating the need for control cables. Maximize productivity in the fabrication shop and in the field. The robust design withstands harsh environments common in the field. It is ideal for structural steel fabrication, general construction, and shipbuilding.

Features

• All aluminum construction makes the machine resist corrosion for long life. With exclusive technologies including Wind Tunnel Technology™ and Fan-On-Demand™, the Dimension 650 will withstand the elements and keep on working!
• High electrical efficiency and excellent power factor mean that you can get more welding done using less power. On 460 VAC input power, the Dimension 650 at rated output can operate on a 50-amp service. Four machines can work at maximum loads simultaneously, drawing less amperage than three previous models.
• Provides a quick, direct connection to Miller® wire feeders. Capable of remote voltage control.
• High-quality performance from power-intensive to precise.Gouging mode provides 800 amps of usable power, a full 650 amps of power at 100-percent duty cycle. Perfect for heavy gouging with 3/8-inch carbons.Three wire modes (GMAW/FCAW/SAW) for simplified setup and optimized arc performance. Solid and flux-cored wires with gas offer exceptional short-arc MIG precision to weld thin metals with less risk of distortion or burn-through, and premium Flux-Cored welding with gas. Flux-Cored (self-shielded) welding performance is exceptional, especially with wires commonly found in infrastructure construction. Sub Arc mode provides capability to retrofit into nondigital Sub Arc applications. Excellent Stick and Lift Arc TIG performance.Arc control is beneficial when welding with Stick and solid wires for easier fine-tuning of tough-to-weld materials and out-of-position applications.
• The standard 14-pin connector lets you choose your control for a customized experience, whether it’s a foot control, fingertip control, or wireless foot control.
• Enables unit to automatically use remote control if connected to remote control receptacle.
• Active in the Stick and Solid-Wire processes. Allows the operator to customize arc characteristics to match preference, electrode and joint design from a softer arc with more fluid puddle to a stiffer arc with a more controllable puddle. The Star setting is optimized for most applications and pointing the control at Soft or Stiff is optimal for most arc preferences. Control is fully adjustable from 0 to 25 Soft or 0 to 25 Stiff.
• ArcReach capabilities increase jobsite productivity and efficiency by eliminating the time spent tracing weld cables hundreds of feet back to the power source because weld operators can make voltage adjustments at the ArcReach wire feeder or remote.
• Reduced size and weight results in 40% less floor space than previous model giving a package that exceeds the welding performance of larger, heavier machines.

• Output Amperage: 650A
• Duty Cycle: 100%
• Gouging Power: 800A
• Input Voltage: 380/400/440 V, 460/480 V
• Input Current: 50A
• Input Phase: 3-Phase
• Input Frequency: 50/60 Hz
• Max Open Circuit Voltage: 87 VDC
• Process: MIG, TIG, STICK
• Welding Modes: GMAW, FCAW, SAW, Stick, Lift Arc TIG, Sub Arc
• Arc Control Range: 0-25 Soft, 0-25 Stiff
• Material: Aluminum
• Country of Origin: United States
