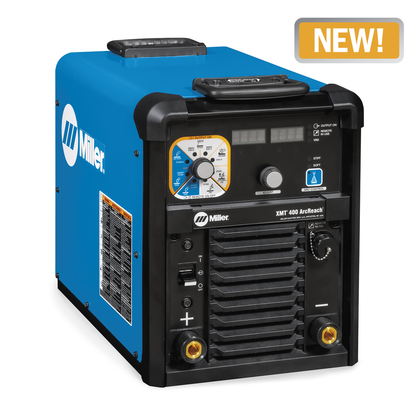

Miller Electric, 907865, Multiprocess Welder, 400 A; 1- and 3-Phase, 208-575 V, CC/CV

This multiprocess power source delivers 400 amps at 60% duty cycle and includes ArcReach®, Auto-Line™, and dedicated weld processes (e.g., gouging, flux core, self-shielded, etc.).

Features

• Weld operators have more control and can Adjust While Welding (AWW™) to make fast, easy weld parameter changes at the wire feeder or remote — even while the arc is on. Only Miller offers this advanced solution.
• Cable Length Compensation (CLC™) ensures that the voltage a weld operator sets is the voltage they get by automatically adjusting voltage based on weld cable length, even hundreds of feet away from the power source.
• Inadvertent parameter changes by other jobsite workers can be avoided because connecting an ArcReach accessory to the power source automatically locks out the power source’s panel controls.
• Take charge of your field preheat and bakeout applications up to 600 degrees Fahrenheit (315°C). This system uses induction heating to generate heat in workpieces, so welders can do their own preheating quickly and safely. A part of the ArcReach technology platform, the ArcReach Heater is an accessory for select ArcReach welding power sources.
• The chances of slip, trip and fall injuries are decreased because ArcReach technology allows weld operators to make parameter changes at the wire feeder or remote instead of having to travel through multistory and cluttered jobsites back to the power source.
• Allows hookup to either single-phase or three-phase primary input voltage, 208-600 volts dependent on the machine, with no manual linking, providing convenience in any job setting. An ideal solution for dirty or unreliable input power.
• ArcReach capabilities increase jobsite productivity and efficiency by eliminating the time spent tracing weld cables hundreds of feet back to the power source because weld operators can make voltage adjustments at the ArcReach wire feeder or remote.

• Amperage Max: 425 A
• Amperage Min: 15 A
• Amperage Range: 15 A - 425 A
• Input Voltage: 208 V, 208/230/460 V, 220/208 V, 220/230/240 V, 380/400 V, 380/400/440 V, 460 V, 460/480 V, 575 V, 575/600 V
• Input Phase: 1- and 3-Phase
• Input Hz: 50/60 Hz
• Max Open Circuit Voltage (VDC): 91 VDC
• Voltage Min (VDC): 10 VDC
• Voltage Max (VDC): 38 VDC
• Current Type: DC
• Rated Carbon Diameter: 5/16 in (7.9 mm)
• Welding Mode: CC/CV
• Metal Type: Most Metals
• Weldable Metals: Aluminum, Specialty Metals, Stainless Steel, Steel
• Country of Origin: United States
