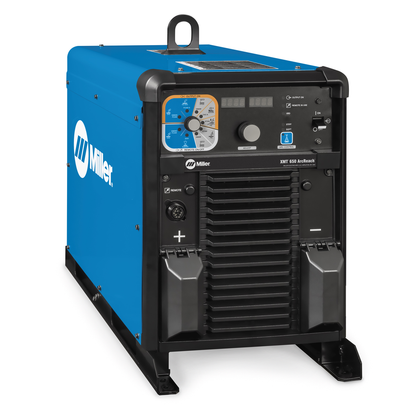

Miller Electric, 907823, Multiprocess Welder, 650 A at 44 VDC; 460 V; 3-Phase; Aluminum, Stainless Steel

Cuts expenses and maintenance with the new XMT 650® ArcReach® Systems, eliminating the need for control cables. Maximize productivity in the fabrication shop and in the field. The robust design withstands harsh environments common in the field. It is ideal for structural steel fabrication, general construction, and shipbuilding.

Features

• Enables unit to automatically use remote control if connected to remote control receptacle.
• ArcReach capabilities increase jobsite productivity and efficiency by eliminating the time spent tracing weld cables hundreds of feet back to the power source because weld operators can make voltage adjustments at the ArcReach wire feeder or remote.
• Provides a quick, direct connection to Miller® wire feeders. Capable of remote voltage control.
• Active in the Stick and Solid-Wire processes. Allows the operator to customize arc characteristics to match preference, electrode and joint design from a softer arc with more fluid puddle to a stiffer arc with a more controllable puddle. The Star setting is optimized for most applications and pointing the control at Soft or Stiff is optimal for most arc preferences. Control is fully adjustable from 0 to 25 Soft or 0 to 25 Stiff.

• Rated Output: 650 A at 44 VDC, 100% duty cycle
• Weld Output: 15 - 815 A, 10 - 65 V
• Amperage Range: 10 A - 815 A
• Voltage: 460 V
• Voltage Max (VDC): 65 VDC
• Voltage Min (VDC): 10 VDC
• Input Phase: 3-Phase
• Max Open Circuit Voltage: 87 VDC
• Current Type: DC
• Rated Carbon Diameter: 3/8 in (9.5 mm)
• Welding Mode: CC/CV
• Input Hz: 60 Hz
• Weldable Metals: Aluminum, Specialty Metals, Stainless Steel, Steel
• Country of Origin: United States
