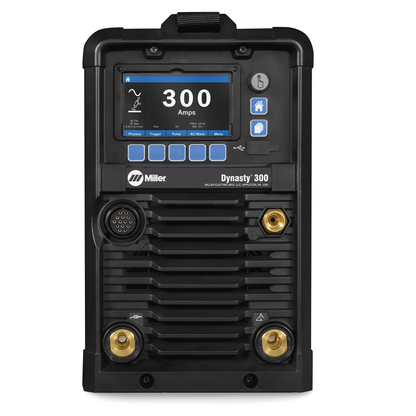

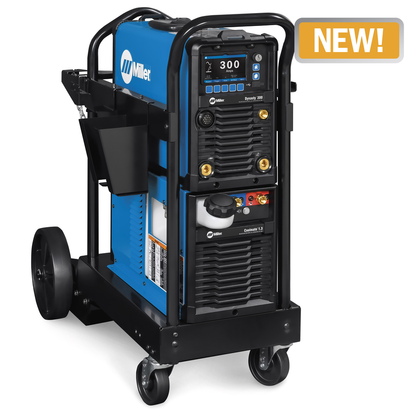

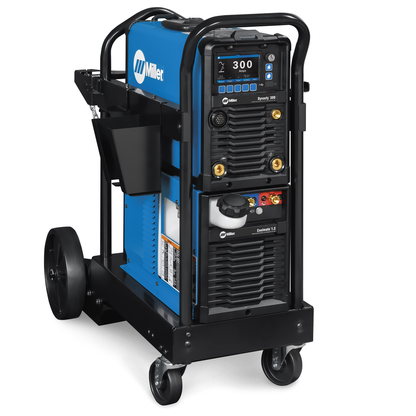

Miller Electric, 907819001, Multiprocess Welder, 300 A; 208-600 V; AC/DC; TIG/MIG

The Dynasty 300 Series has now expanded beyond the industry leading TIG and Stick performance by the additional CV output which allows for MIG capability - making this multiprocess line the perfect solution for ship building, construction, mechanical contractors, educational and more.

Includes

• 8 ft. (2.4 m.) Weld Cable with Tweco®-style connectors to power feeder
• Adjustable Shoulder Strap
• (2) Dinse/Tweco® Adapters (042465)
• Dynasty 300 Multiprocess
• Coolmate™ 1.3
• Small Runner Cart
• (2) 50 mm Dinse style connectors
• 8 ft. (2.4 m.) Primary Cord

Features

• This feature eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display. The Pro-Set feature is available for Balance, Frequency, Pulse and DIG parameters.
• Provides control of the weld parameter ranges minimizing deviations from the welding procedure specifications (WPS).
• Allows hookup to either single-phase or three-phase primary input voltage, 208-600 volts dependent on the machine, with no manual linking, providing convenience in any job setting. An ideal solution for dirty or unreliable input power.
• High-frequency (HF) arc starter for non-contact arc initiation. Provides more consistent arc starts and greater reliability compared to traditional HF arc starters.
• QuietPulse is activated by changing the waveshape for DC pulse welding, creating a slower, more fluid transition between the background and peak amperage to create the least possible audible noise.
• Ensure proper machine setup and parameter selection with informative on-screen explanations and dynamic images.
• CV output of the power source gives this unit MIG process capabilities when paired with an ArcReach® 8 or 12 (or other voltage-sensing feeder).
• Provides the ability to easily update software, back-up settings and transfer saved weld programs from one unit to the next.
• Feature operates the auxiliary cooling system only when needed, reducing noise, energy use, and airborne contaminants pulled through the cooler.
• Tailored arc control (DIG) allows the arc characteristics to be changed for specific applications and electrodes. Smooth running 7018 or stiffer, more penetrating 6010. Hot Start™ adaptive control provides positive arc starts without sticking.
• Cooling system operates only when needed, reducing noise, energy use and the amount of contaminants pulled through machine.
• Control the width of the arc cone and can improve directional control of the arc with adjustments between 50-150 Hertz.
• Allows easy naming, saving and recalling of favorite weld settings.

Does Not Include

• Work cables
• Weldcraft™ torch kit
• TIG remote fingertip/foot control
• Coolant (043810)
• TIG torch adapter

• Input Voltage: 208 V, 220/230/240 V, 380/400 V, 460/480 V, 575/600 V, single-phase or three-phase
• Amperage Range: 1 A - 300 A
• Current Type: AC / DC
• Max Open Circuit Voltage: 60 VDC
• Frequency: 50/60 Hz
• Weld Output: CC/CV (Constant Current / Constant Voltage)
• Processes: TIG, Stick, MIG Multiprocess
• Length: 39.5 in.
• Width: 8.5 in.
• Height: 34.75 in.
• Weight: 147 lbs
• Cable Length: 8 ft (2.4 m)
• Rated Carbon Diameter: 3/16 in (4.8 mm)
• Connector Type: Dinse/Tweco, 50 mm
• Weldable Metals: Aluminum, Specialty Metals, Stainless Steel, Steel
• Country of Origin: United States
