Miller Electric, 907693, Multiprocess Welder, 20 A - 230 A, 58 VDC, 3/8 in Mild Steel, 20.5 in Length

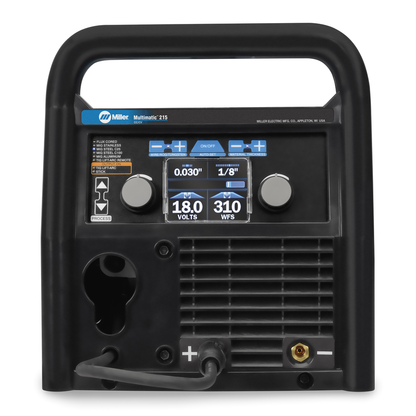

Easy-to-use and versatile MIG, Stick and DC TIG welder that helps build skills. Color screen featuring Auto-Set™ Elite. This all-in-one welder connects to 120 or 240 volt input power. Welds up to 3/8” mild steel.

Features

• Inverter technology combines best-in-class arc characteristics with the portability of a 38-pound machine. The arc is extremely forgiving to variations in arc length and travel speeds.
• MIG, flux-cored, DC stick and DC TIG processes, allowing you to build your skills.
• Auto-Set Elite can be used on multiple materials and multiple processes with the ability to fine-tune your settings. Simple to set up and use!

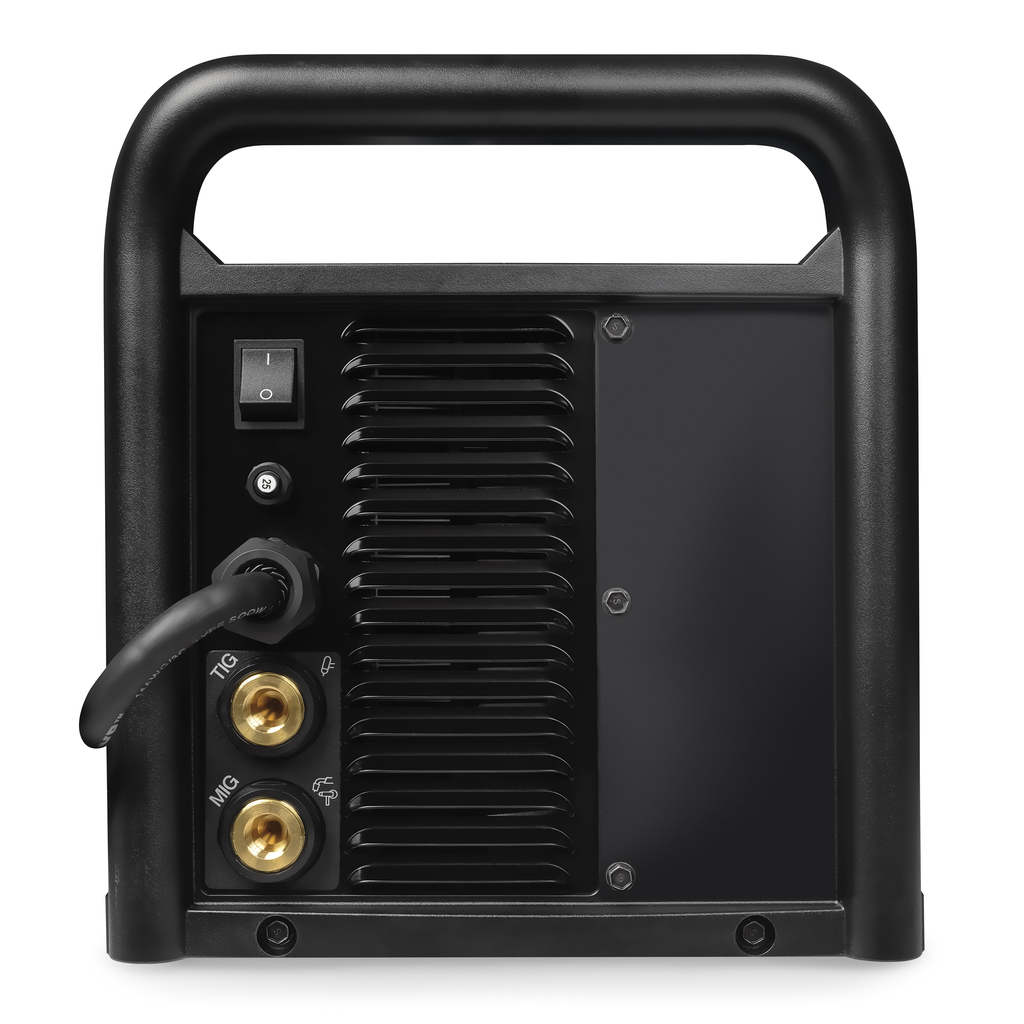

• There are two gas connections on the back of the machine—one for MIG and one for TIG.
• Cooling system operates only when needed, reducing noise, energy use and the amount of contaminants pulled through machine.
• Automatically detects when a MIG gun or spool gun is connected eliminating the need for a switch.
• Smooth-Start™ provides smooth, spatter-free MIG starts.

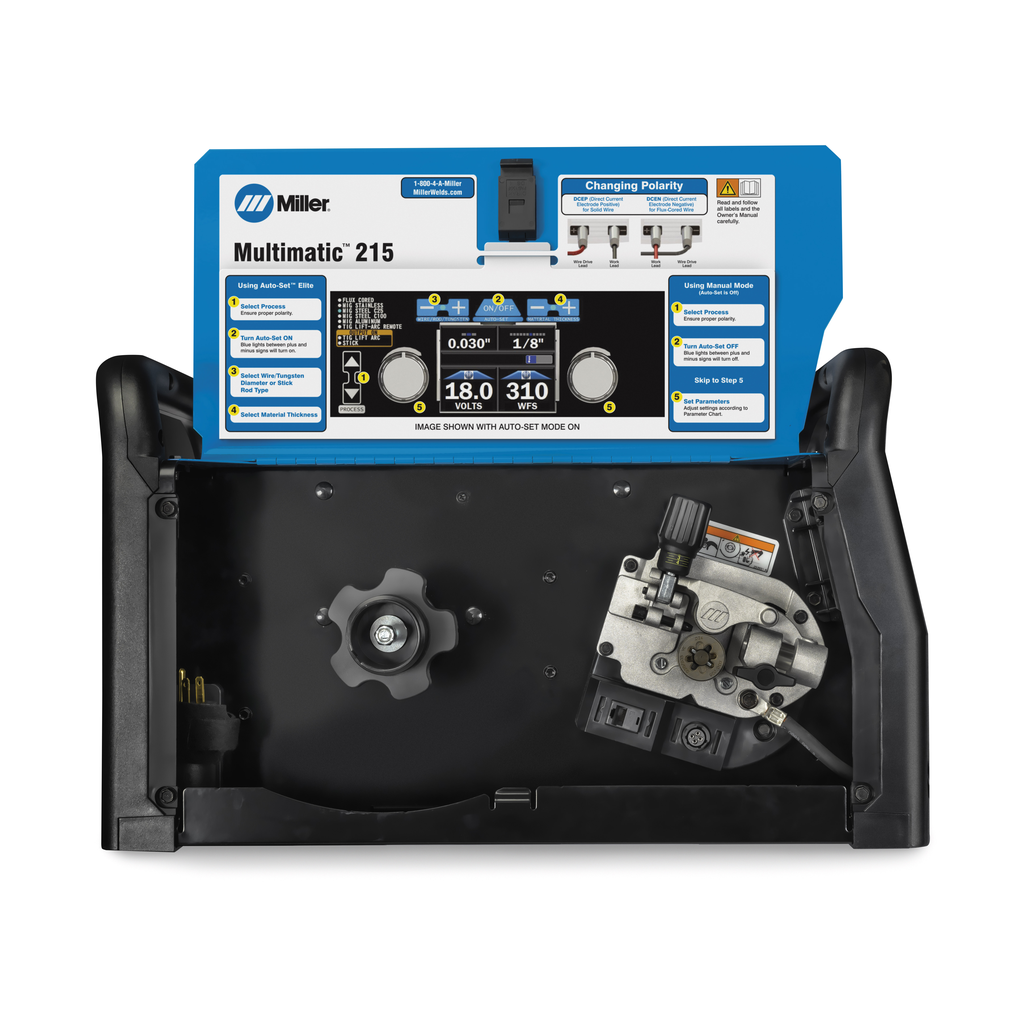

• Robust, angled wire drive with Quick Select™ drive roll. The Quick Select drive roll offers three grooves- two for different size solid wire and a third for flux-cored wire.
• The Multimatic 215 will be able to operate and provide full output when powered by generators with 10000 Watt (10K) output or higher, such as a Miller Bobcat or Trailblazer series generator. Limited output will occur when used with smaller generators.
• Allows for connection to 120- or 240-volt receptacles without tools. Choose the plug that fits the receptacle and connect it to the power cord.

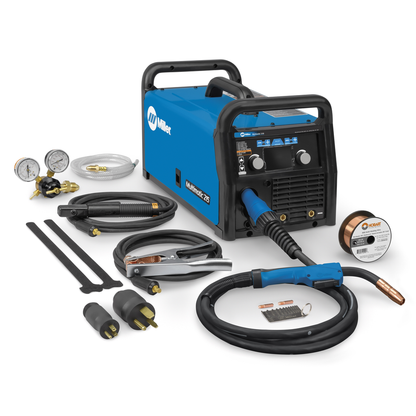

Includes

• 10 ft (3 m) work cable with clamp and 25 mm Dinse-style connector
• Multimatic® 215
• 13 ft (4 m) cable electrode holder and 25 mm Dinse-style connector
• Hook-and-loop cord wraps
• Argon and AR/CO2 mix regulator/flow gauge with hose
• 6.5 ft (2 m) power cord and MVP™ adapter plugs for 120V and 240V
• Spool of Hobart® .030 in (0.8 mm) solid wire
• Material thickness gauge #229895
• Two contact tips for .030 in (0.8 mm) wire
• Quick Select™ drive roll for .024 in (0.6 mm) or .030/.035 in (0.8/0.9 mm) solid wire, and .030/.035 (0.8/0.9 mm) flux cored wire
• 10 ft (3 m) MDX™-100 MIG gun

Does Not Include

• TIG Kit for TIG welding
• Power cord and strain relief
• Shielding gas
• Spool gun for aluminum welding
• Safety Equipment

• Amperage Range: 20 A - 230 A
• Input Voltage: 110/115/120 V, 220/230/240 V
• Max Open Circuit Voltage: 58 VDC
• Min Wire Feed Speed: 60 IPM (1.2 m/min)
• Max Wire Feed Speed: 600 IPM (10.8 m/min)
• Material Thickness Capacity: 24 ga. - 3/8 in. mild steel
• Welding Processes: MIG, flux-cored, DC stick, DC TIG
• Weight: 38 lb
• Length: 20.5 in.
• Height: 12.5 in.
• Width: 11.25 in.
• Wire Size: .024 in, .030/.035 in solid; .030/.035 in flux-cored
• Current Type: DC
• Weldable Metals: Aluminum, Stainless Steel, Steel
• Input Frequency: 50/60 Hz
• Input Phase: 1-Phase
• Country of Origin: United States
