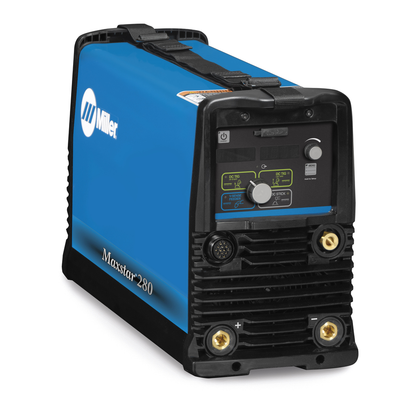

Miller Electric, 907552001, Multiprocess Welder, 208/230/240/380/400/460/480/575 V, DC, 8 ft Primary Cord, TIG Torch

With multiprocess capabilities and features like Auto-Line™, pulse and high-frequency arc starts, the Maxstar 280 Multiprocess is the most versatile, portable machine in its class. Includes tweco-style connectors

Does Not Include

• Weld leads
• TIG torch
• Work cables
• Quick Reference Guide
• TIG remote fingertip/foot control
• ArcReach® SuitCase® 8 or 12 feeder
• TIG torch adapter

Features

• Eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of preset controls. Simply select the feature and adjust until Pro-Set appears on the display.
• Tailored arc control (DIG) allows the arc characteristics to be changed for specific applications and electrodes. Smooth running 7018 or stiffer, more penetrating 6010. Hot Start™ adaptive control provides positive arc starts without sticking.
• High-frequency (HF) arc starter for non-contact arc initiation. Provides more consistent arc starts and greater reliability compared to traditional HF arc starters.
• Cooling system operates only when needed, reducing noise, energy use and the amount of contaminants pulled through machine.
• CV output of the power source gives this unit MIG process capabilities when paired with an ArcReach® 8 or 12 (or other voltage-sensing feeder).
• MIG, flux-cored, DC stick and DC TIG processes, allowing you ultimate versatility.
• QuietPulse is activated by changing the waveshape for DC pulse welding, creating a slower, more fluid transition between the background and peak amperage to create the least possible audible noise.

Includes

• 8 ft. (2.4 m.) Primary Cord
• Maxstar® 280 Multiprocess, Tweco
• Adjustable Shoulder Strap

• Input Voltage: 208 V, 220/230/240 V, 380/400 V, 460/480 V, 575 V
• Input Frequency: 50/60 Hz
• Current Type: DC
• Weld Output: CC / CV
• Processes: MIG, Flux-Cored, DC Stick, DC TIG
• Rated Carbon Diameter: 3/16 in (4.8 mm)
• Weight: 47 lbs
• Height: 13.625 in
• Length: 22.5 in
• Width: 8.625 in
• Primary Cord Length: 8 ft (2.4 m)
• Connector Style: Tweco
• Output Type: Constant Voltage (CV)
• Cooling System: Demand-based operation
• Arc Starter Type: High-frequency (HF)
• Country of Origin: United States
• Weldable Metals: Specialty Metals, Stainless Steel, Steel
• Control: Tailored arc control (DIG), Hot Start Adaptive Control
