Hobart Welding Products, 500578, Multiprocess Welder, MIG; DC TIG; Stick, 30-200 A, 24 ga. to 3/8 in., 120/240 V

This Multiprocess welder includes MIG, Flux cored, Stick, and DC TIG processes in one machine. The versatile machine is made to work on a variety of projects. Weld materials up to 3/8". Choose between 120 V or 240 V input power.

Features

• Versatility with one machine that provides MIG, DC TIG and stick capabilities.
• Spool guns enhance feedability and reduce “bird-nesting” associated with soft aluminum wires. No additional control box or adapter is required to connect the SpoolRunner™ 100 spool gun.
• Allows you to connect to common 115 or 230 V power receptacles without the use of any tools - simply choose the plug that fits the receptacle.
• Five-year warranty on transformers, stabilizers and main rectifiers; three years on generators, PC boards and drive systems; and one year on guns (MIG, plasma and TIG torches).
• Makes setup quicker by offering three grooves — two for different size solid wire and a third for flux-cored wire.
• Experience smooth, spatter-free starts. The run-in feature automatically slows the wire feed speed to a pre-set speed prior to arc initiation, improving arc starts.
• With two knobs and a process button, setting up or changing over this machine is quick.

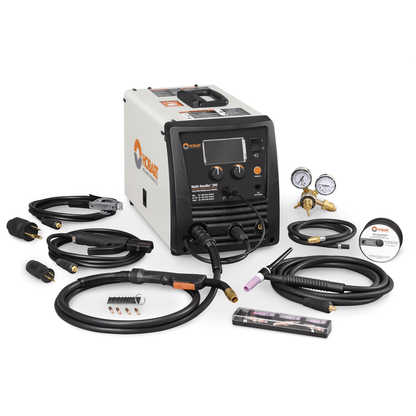

Includes

• Quick Select (TM) drive roll for .024 in (0.6mm) or .030/.035 in. (0.8/0/9 mm) solid wire, and .030/.035 in. (0.8/0.9 mm) flux-cored wire
• Power cord and MVP plugs for 120 and 240 V
• .030 and .035 contact tips
• Material Thickness Gauge
• Insulator nozzles (#4,#5,#6), collet, collet body, electrode with 1/16 and 3/32 in. tungsten
• Built-in gas solenoid valve and dual-gauge regulator with gas hose.
• Comfortable 10 ft. (3m) HR-100 gun
• 12.5 ft. (3.8 m) TIG torch with backcap, nozzle
• 10 ft.(3m) work cable with clamp
• 10 ft. (3 m) electrode cable with heavy-duty holder
• Sample spool of .030 in. (0.8 mm) solid wire

Does Not Include

• Shielding gas and safety equipment not included.
• RFCS-RJ45 remote foot control

• Amperage: 30 A - 200 A
• Material Thickness: Mild Steel 24 ga. (0.5 mm) - 3/8 in. (9.5 mm)
• Voltage: 120/240 V, 1-Phase, 50/60 Hz
• Processes: MIG (GMAW), Flux Cored (FCAW), Stick (SMAW), DC TIG (GTAW-DC)
• Gun Length: 10 ft (3 m)
• TIG Torch Length: 12.5 ft (3.8 m)
• Work Cable Length: 10 ft (3 m)
• Electrode Cable Length: 10 ft (3 m)
• Min Wire Feed Speed: 60 IPM
• Max Wire Feed Speed: 650 IPM
• Weight: 38.4 lbs
• Length: 20.8 in.
• Width: 10.6 in.
• Height: 13.4 in.
• Max Open Circuit Voltage: 63 VDC
• Welding Mode: CC/CV
• Material: Most Metals
• Spool Size: 4 in (101.6 mm) and 8 in (203.2 mm)
• Country of Origin: China
