PROFESSIONAL-GRADE PERFORMANCE Experience the ultimate in professional-grade performance with the POWER MIG® 262MP. With a max output of 300 Amps and multi-process functionality including MIG, Pulsed MIG, Stick, Flux-Cored, and TIG, the 262MP delivers all the performance and versatility you expect from the POWER MIG family. Equipped with cutting-edge technology like Ready.Set.Weld®, ArcFX®, and Weld Set Memory, the POWER MIG 262MP puts precise machine control at your fingertips. Navigate effortlessly through its features with the intuitive 7-inch LCD display, ensuring seamless operation and unparalleled operator control. From autobody projects to all-day fabrication, trust the POWER MIG 262MP to deliver the unmatched performance and reliability you need.
Features
- 300 Amp Max Output- Perfect for autobody, light fabrication, education, and more.
- Aluminum Pulse Process - Welds 4XXX and 5XXX series aluminum for superior quality welding.

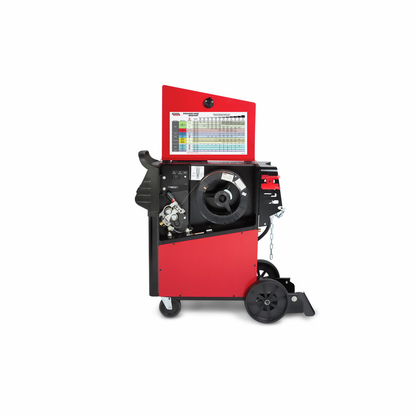

- Rugged MAXTRAC® Industrial Wire Drive - Allows for constant wire feed speed and consistent welds.
- Memory Recall- Easily save and access memories with the enhanced UI.
- Stick Settings for 6010 + 6011- Superior performance with cellulosic electrodes.

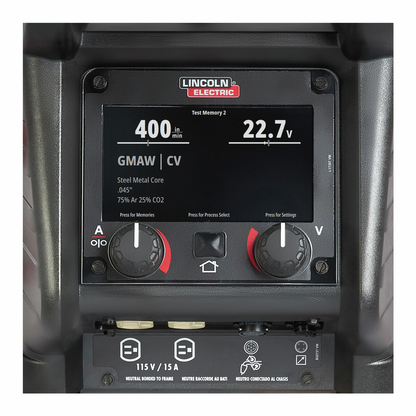

- 7-Inch Color Display - Enhances communication between operator and machine.
- Multi-Process Capable - Welds MIG, flux-cored, stick, TIG, and pulsed MIG.
- 3 Ways to Feed Aluminum - Electronics built in for all three methods using a Push Gun, Spool Gun or a Push-Pull Gun.
- Synergic Control - Set weld procedures with one control.
What's Included?

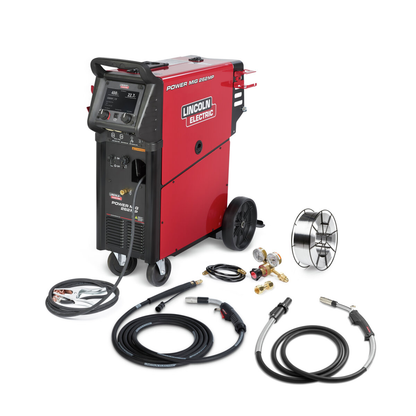

- (1) POWER MIG 262MP Welder, (1) K4530-2 Magnum PRO 250L Welding Gun, (1) K586-1 Adjustable Gas Regulator and Hose, (1) KP1696-1 Drive Roll Kit 0.035/0.045 in, (1) Quick Storage Accessories, (1) 10 ft Work Cable with Clamp, (1) 10 ft Power Cable with Plug, (1) K4700-1-6-116A Magnum Pro Curve 300AL, (1) ED029573 3/64 in SuperGlaze® 5554 16 lb Spool, (1) KP1695-3/64A Aluminum Drive Roll Kit
-
Max Output: 300 Amps
-
Rated Output / Duty Cycle: 230A/26.5V/60%
-
Output Range: 5-300 A
-
Input Voltage: 208/230/460/575 V, Single Phase, 60 Hz
-
Open Circuit Voltage: 90 V
-
Welding Processes: Stick (SMAW), Flux-Cored (FCAW), TIG (GTAW), MIG (GMAW), Pulsed MIG (GMAW-P), Flux-Cored Self-Shielded (FCAW-S), Flux-Cored Gas-Shielded (FCAW-G)
-
Length: 37.5 in (952.5 mm)
-
Width: 18 in (457.2 mm)
-
Height: 37.5 in (947.42 mm)
-
Weight: 258 lb (117 kg)
-
Output Polarity: DC
-
Output Mode: CC/CV
-
Input Phase: Single Phase
-
Input Frequency: 60 Hz
-
Material: Aluminum Pulse Process (4XXX and 5XXX series)
-
Display Size: 7 in LCD Color Display
-
Wire Feed Speed Range: 50-700 ipm (1.3-17.7 m/min)
-
Wire Drive: Rugged MAXTRAC Industrial Wire Drive
-
Stick Settings: 6010 + 6011 cellulosic electrodes
-
Memory Function: Weld Set Memory with Memory Recall
-
Synergic Control: Yes
-
Country of Origin: United States
-
Amphenol Pins (Type of Connector): 12
-
Warranty Length: 3 Years
Downloads
Specsheet
