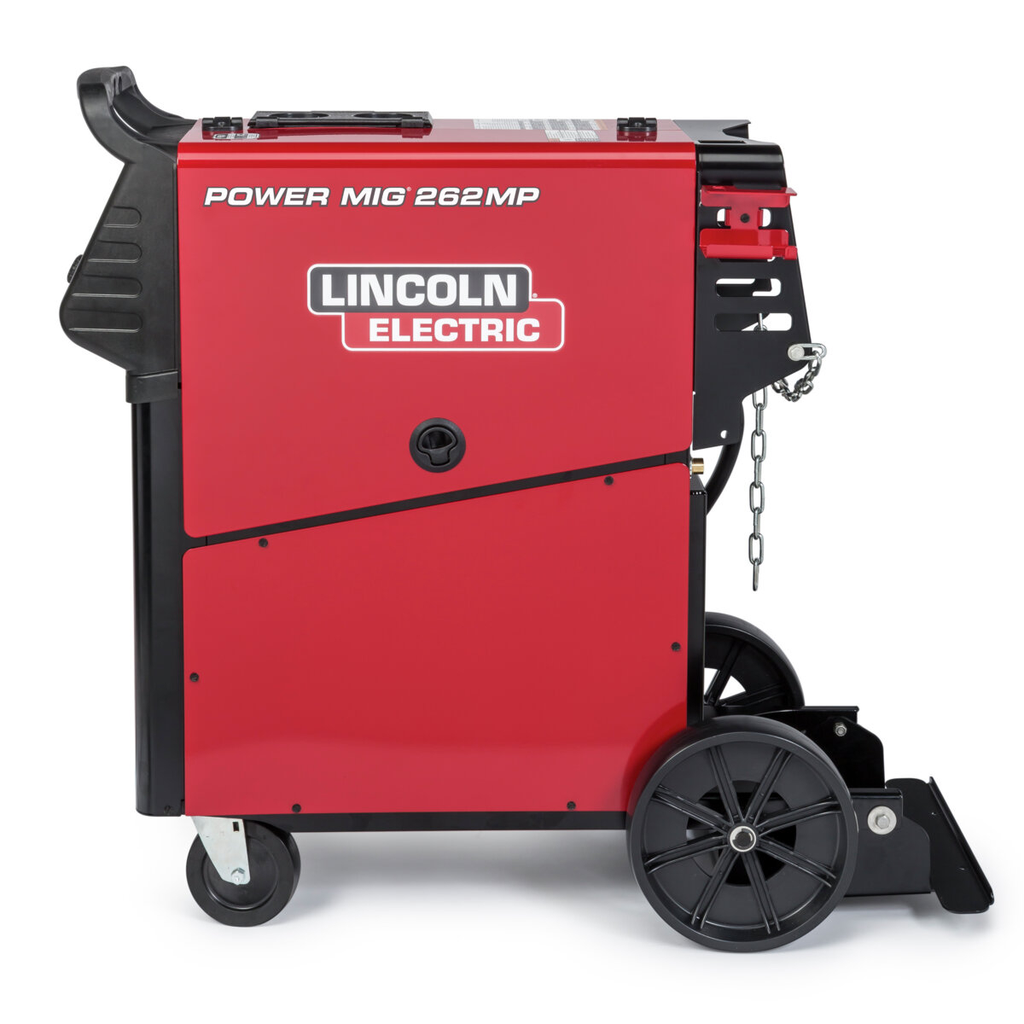

PROFESSIONAL-GRADE PERFORMANCE Experience the ultimate in professional-grade performance with the POWER MIG® 262MP. With a max output of 300 Amps and multi-process functionality including MIG, Pulsed MIG, Stick, Flux-Cored, and TIG, the 262MP delivers all the performance and versatility you expect from the POWER MIG family. Equipped with cutting-edge technology like Ready.Set.Weld®, ArcFX®, and Weld Set Memory, the POWER MIG 262MP puts precise machine control at your fingertips. Navigate effortlessly through its features with the intuitive 7-inch LCD display, ensuring seamless operation and unparalleled operator control. From autobody projects to all-day fabrication, trust the POWER MIG262MP to deliver the unmatched performance and reliability you need.
Features
- Aluminum Pulse Process - Welds 4XXX and 5XXX series aluminum for superior quality welding.
- Multi-Process Capable - Welds MIG, flux-cored, stick, TIG, and pulsed MIG.
- Stick Settings for 6010 + 6011- Superior performance with cellulosic electrodes.

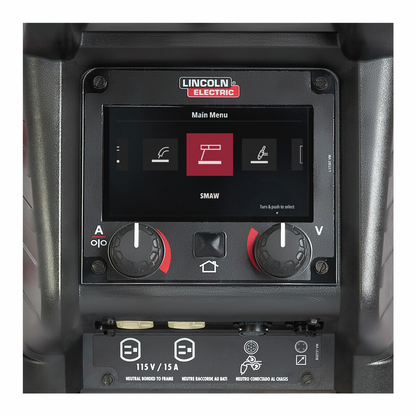

- 7-Inch Color Display - Enhances communication between operator and machine.
- 300 Amp Max Output- Perfect for autobody, light fabrication, education, and more.

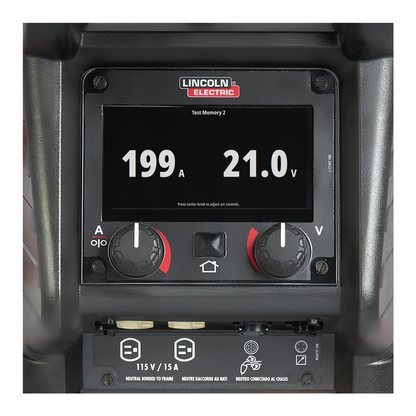

- Memory Recall- Easily save and access memories with the enhanced UI.
- Rugged MAXTRAC® Industrial Wire Drive - Allows for constant wire feed speed and consistent welds.
- 3 Ways to Feed Aluminum - Electronics built in for all three methods using a Push Gun, Spool Gun or a Push-Pull Gun.
- Synergic Control - Set weld procedures with one control.

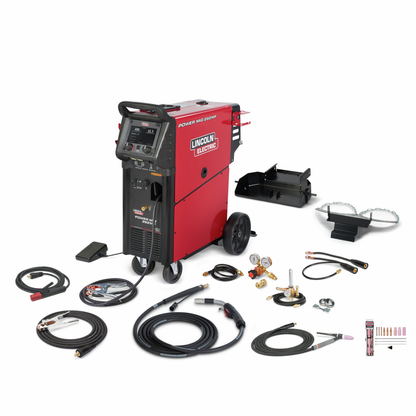

What's Included?
- (1) POWER MIG 262MP Welder, (1) K4530-2 Magnum PRO 250L Welding Gun, (1) K586-1 Adjustable Gas Regulator and Hose, (1) KP1696-1 Drive Roll Kit 0.035/0.045 in, (1) Quick Storage Accessories, (1) 10 ft Work Cable with Clamp, (1) 10 ft Power Cable with Plug, (1) K3676-1 Dual Cylinder Cart, (1) K2505-3 TIG Torch Twist-Mate to Stud Adaptor, (1) K2374-1 Stick Electrode Holder, (1) K1803-3 Work Lead/Ground Clamp, (1) K870 Foot Amptrol, (1) K1782-14 TIG Torch Ready Pak, (1) KP508 Parts Kit for PTA 17 TIG Torch, (1) 3100211 Flowmeter Regulator
-
Amperage: 300A Max Output
-
Output Mode: CC/CV
-
Max Output: 300-399 A
-
Input Power: 208/230/460/575V, Single Phase, 60 Hz
-
Output Polarity: DC
-
Processes: MIG, Pulsed MIG, Stick, Flux-Cored, TIG
-
Rated Output Current/Voltage/Duty Cycle: 230A/26.5V/60%
-
Max Open Circuit Voltage: 90V
-
Wire Feed Speed: 50-700 ipm (1.3-17.7 m/min)
-
Dimensions (H x W x D): 37.5 x 18 x 37.5 in (952.5 x 457.2 x 952.5 mm)
-
Weight: 250 lb (113.4 kg)
-
Material: Aluminum 4XXX and 5XXX series
-
Display: 7-inch Color LCD
-
Control: Synergic Control with Memory Recall
-
Wire Drive: Rugged MAXTRAC Industrial Wire Drive
-
Feed Methods: Push Gun, Spool Gun, Push-Pull Gun
-
Stick Electrode Compatibility: 6010, 6011 electrodes
-
Advanced Features: Ready.Set.Weld , ArcFX , Weld Set Memory
-
Accessory Compatibility: Includes TIG torch, foot amptrol, stick electrode holder, flowmeter regulator, dual cylinder cart
-
Warranty Length: 3 Years
-
Country of Origin: United States
Downloads
Specsheet
