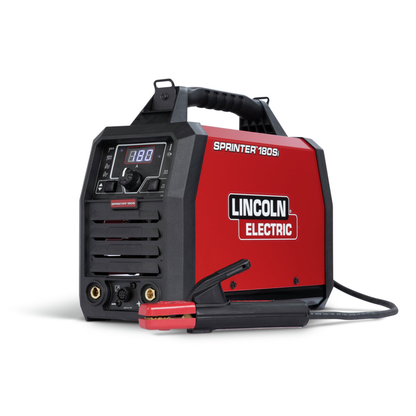

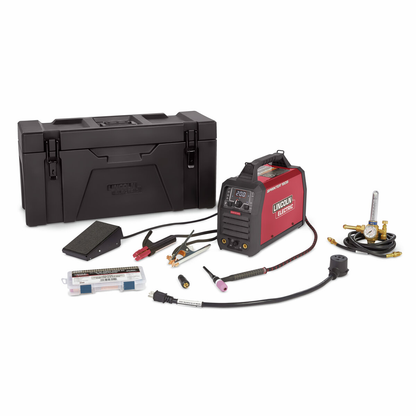

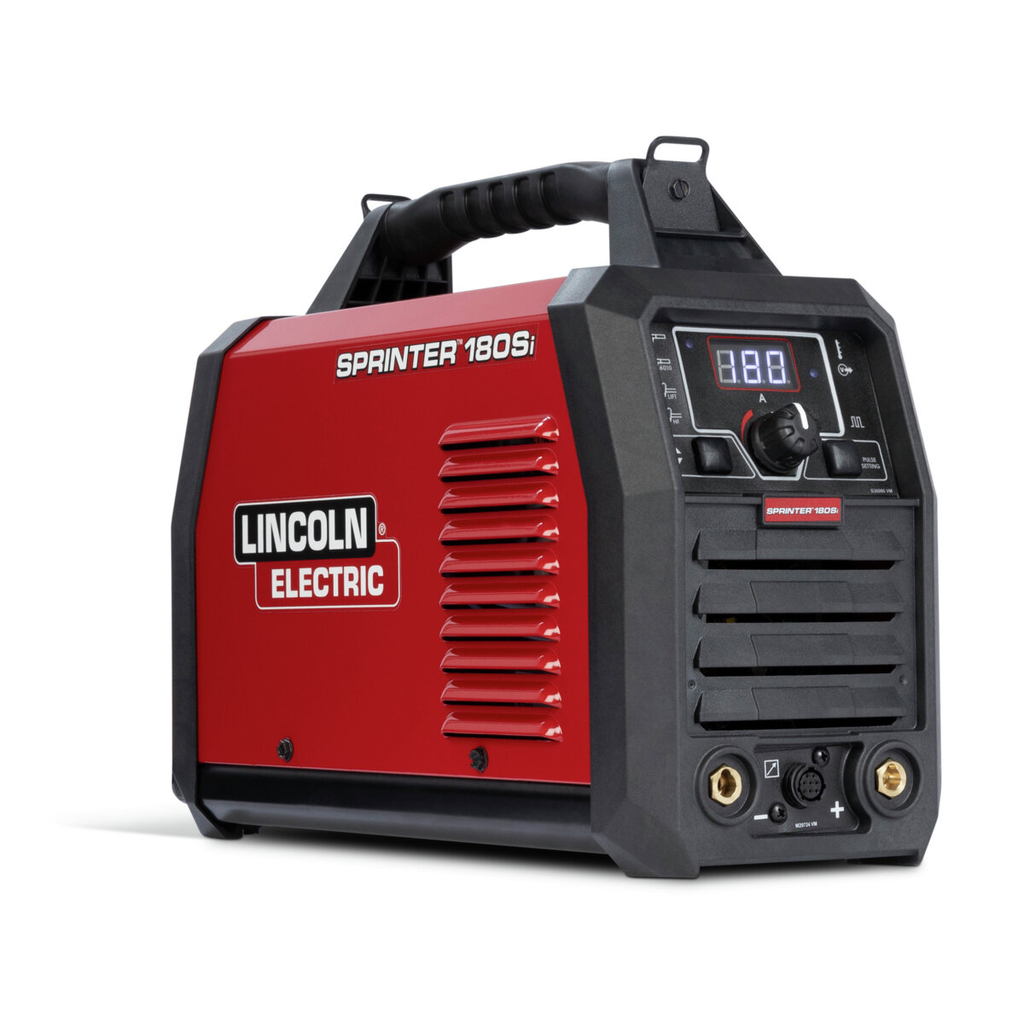

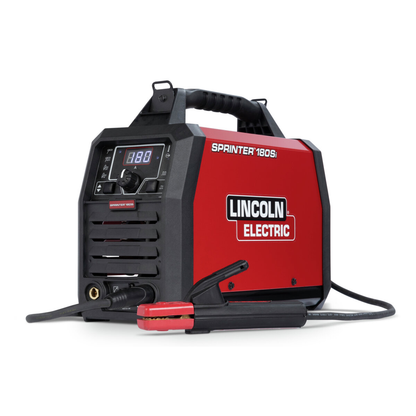

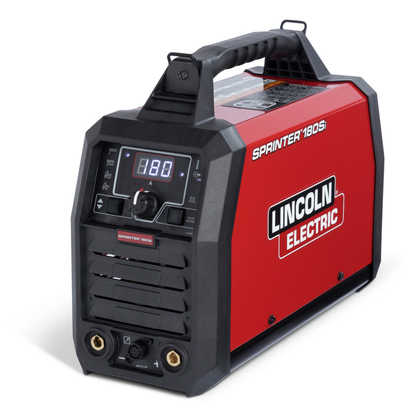

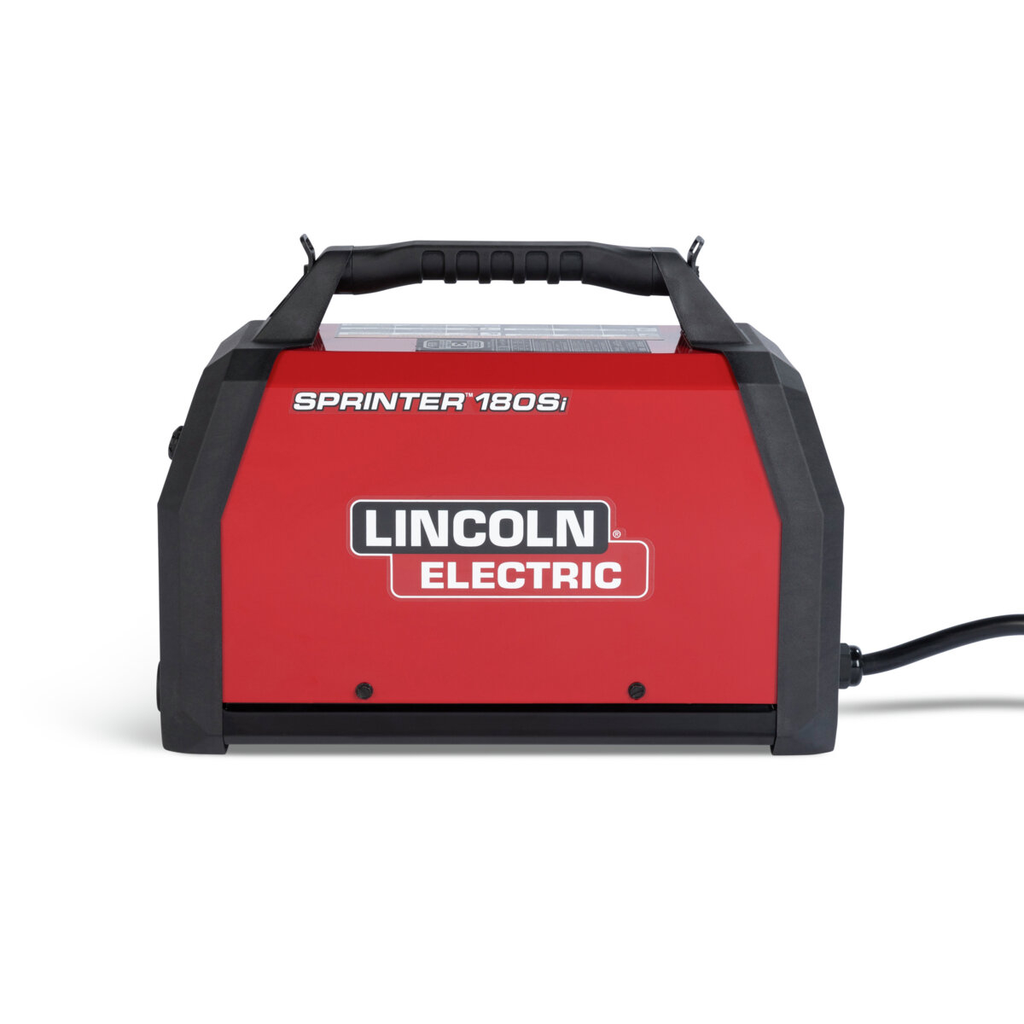

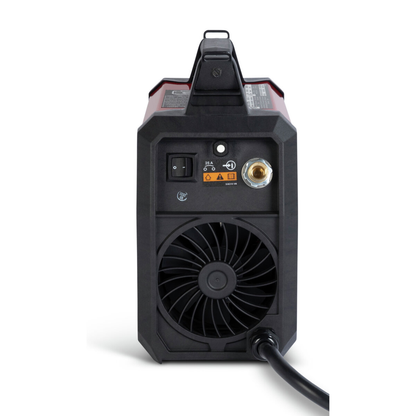

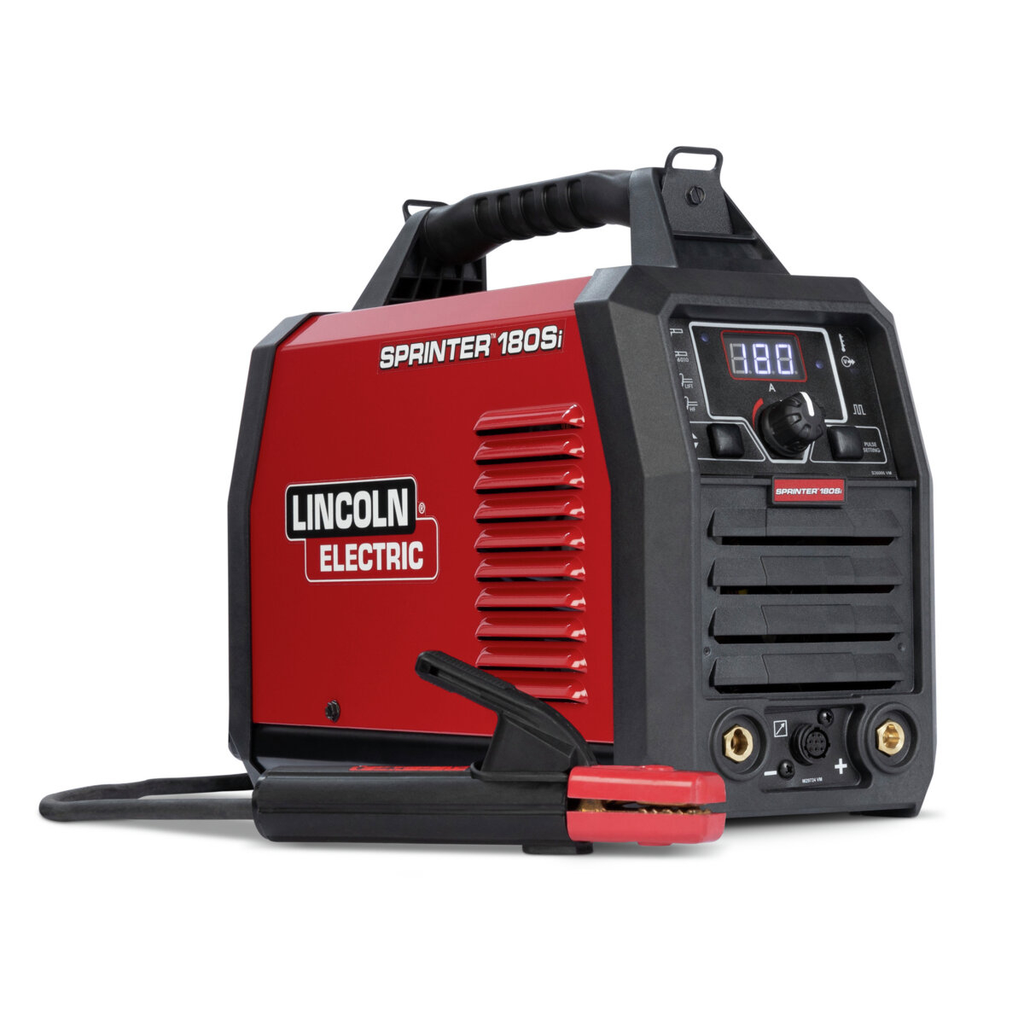

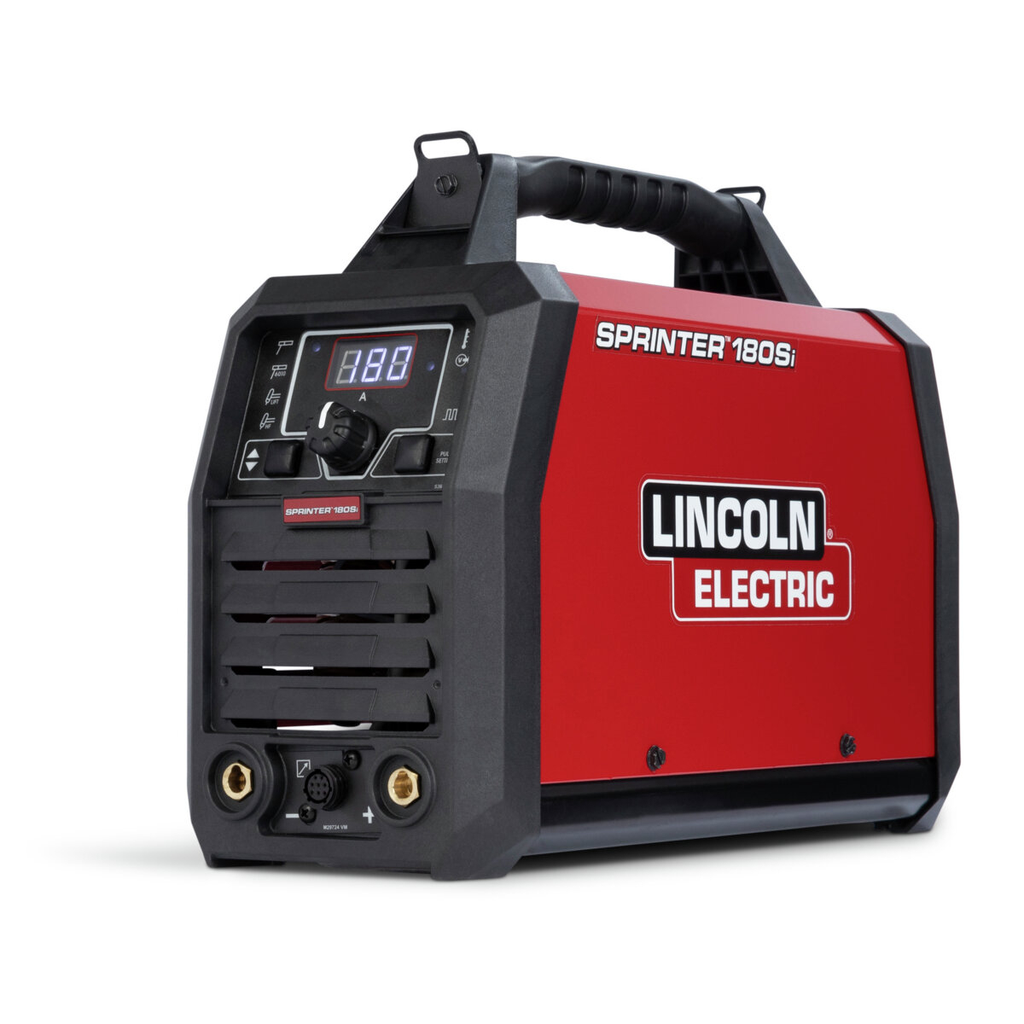

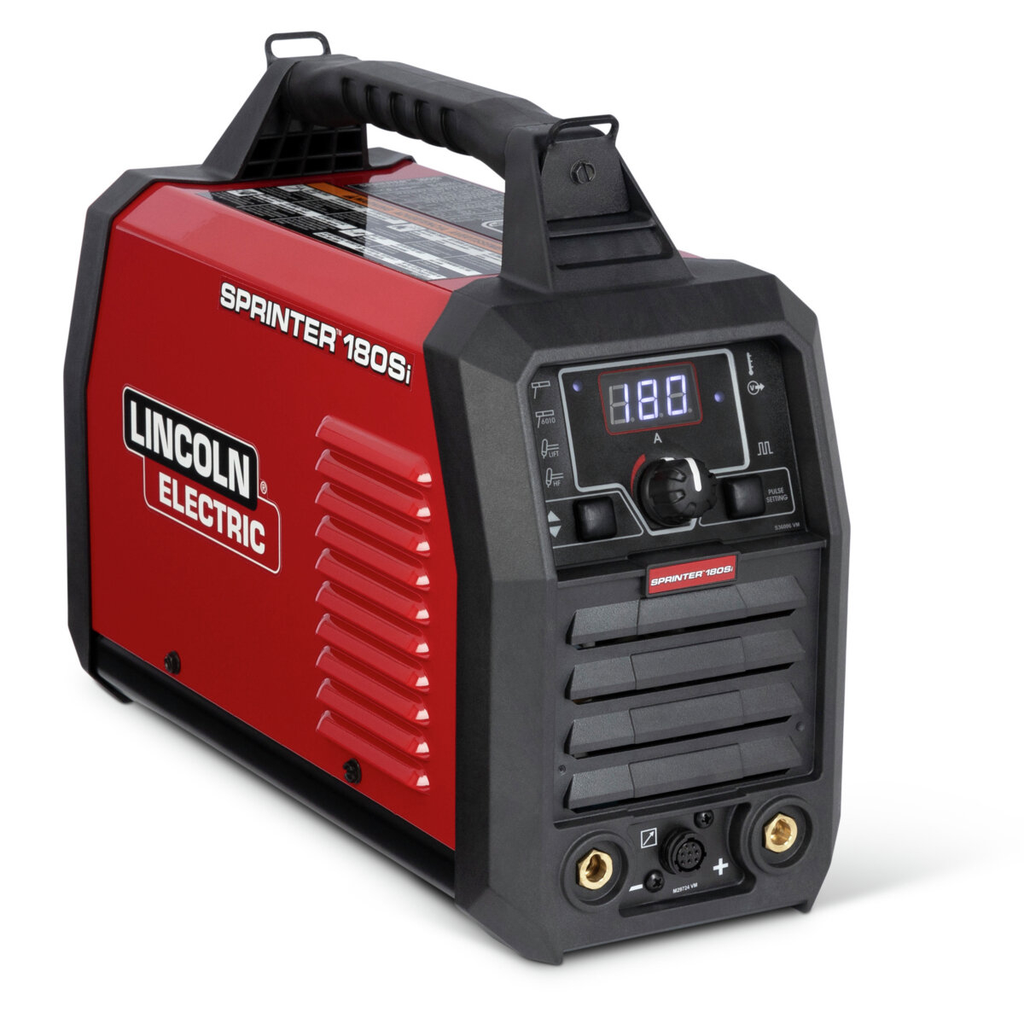

The Sprinter 180Si gives you power in a small package. Weighing in under 20 lbs., it's lightweight and portable, and the 180-amp output enables you to weld electrodes up to 5/32 inches, including 7018 and 6010. This machine is more than just a stick welder, the Sprinter 180Si combines superior stick capabilities with high-frequency TIG starting, pulsed TIG mode, amptrol compatibility, and dual input voltage (120V/230V). A simple display allows you to dial the weld settings so you can get started quickly and easily on any job anywhere – maintenance work, light-fabrication, light structural, and everything in between. The Sprinter 180Si is a stick/TIG welder that has an environmental rating of IP23 for outdoor use and has a rugged, impact resistant case.
Features
- Lightweight Portability - This durable machine weighs under 20 lbs. and is easy to carry with its ergonomic handle or included shoulder strap.
- Pulsed TIG Mode - Provides heat management and enhanced control when making thin, precise welds.
- Multi-Process Capable - Welds DC Stick and DC TIG.
- Dual Input Voltage - 120V and 230V inputs so you can plug into any common power supply.
- High Frequency Start - Strike a precise arc every time while TIG welding
- Two Stick Modes - Crisp arc allows for greater welding versatility and superior performance on E6010 and E6011 electrodes while soft arc allows for dependable E7018 arc starting.
-
Amperage: 180 A
-
Output Current Range: 10-140 A DC TIG (120 V), 10-200 A DC TIG (230 V), 20-110 A DC STICK (120 V), 20-180 A DC STICK (230 V)
-
Duty Cycle: 40% @ 110 A (120 V), 25% @ 200 A (230 V)
-
Open Circuit Voltage: Average 65 V, Peak 110 V, VRD Peak 14 V
-
Electrode Size: Up to 5/32 in
-
Input Voltage: 120 V, 230 V
-
Stick Modes: E6010, E6011, E7018
-
Processes: DC Stick, DC Touch-Start TIG, DC High Frequency TIG, DC Pulsed TIG
-
Height: 11.8 in
-
Width: 6.25 in
-
Length: 16 in
-
Weight: Under 20 lbs
-
Environmental Rating: IP23
