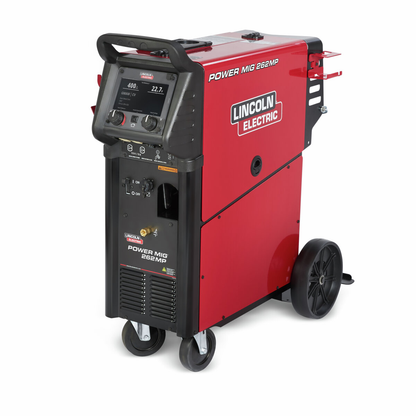

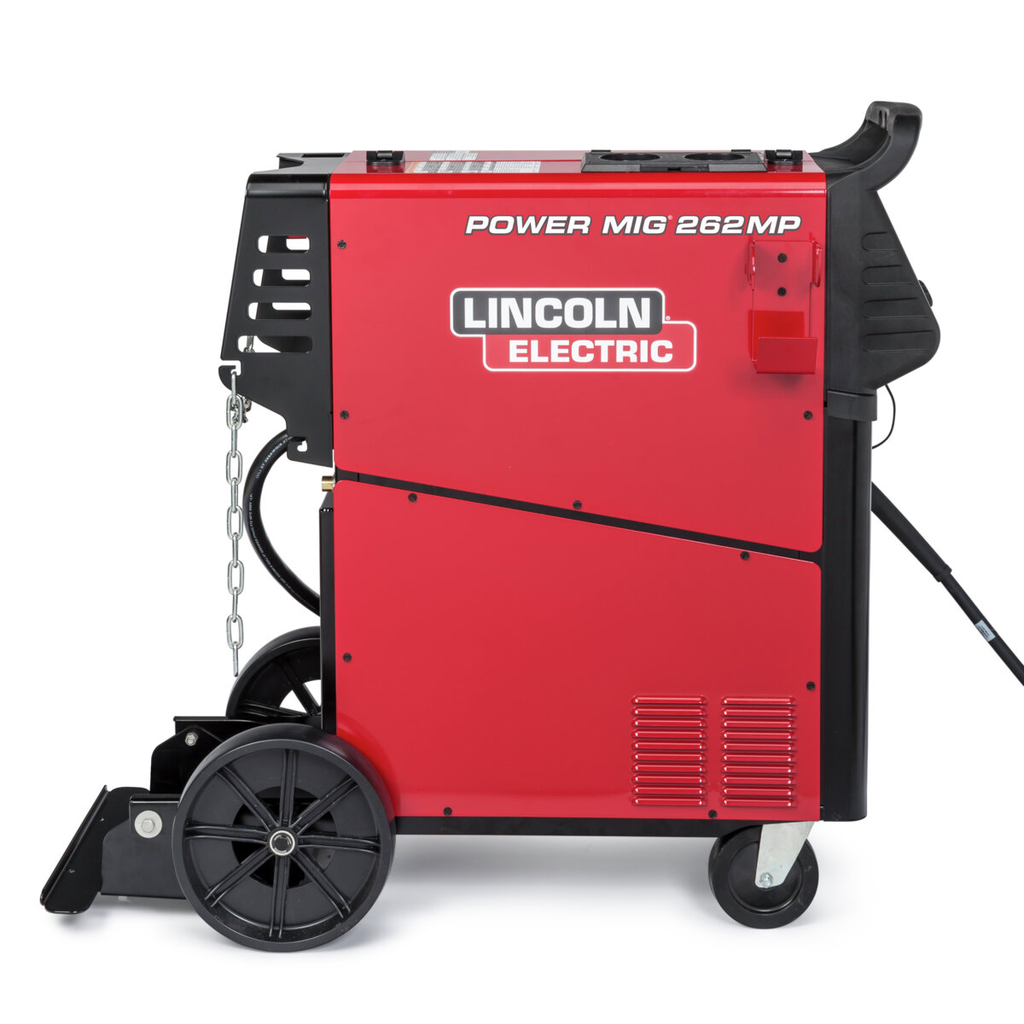

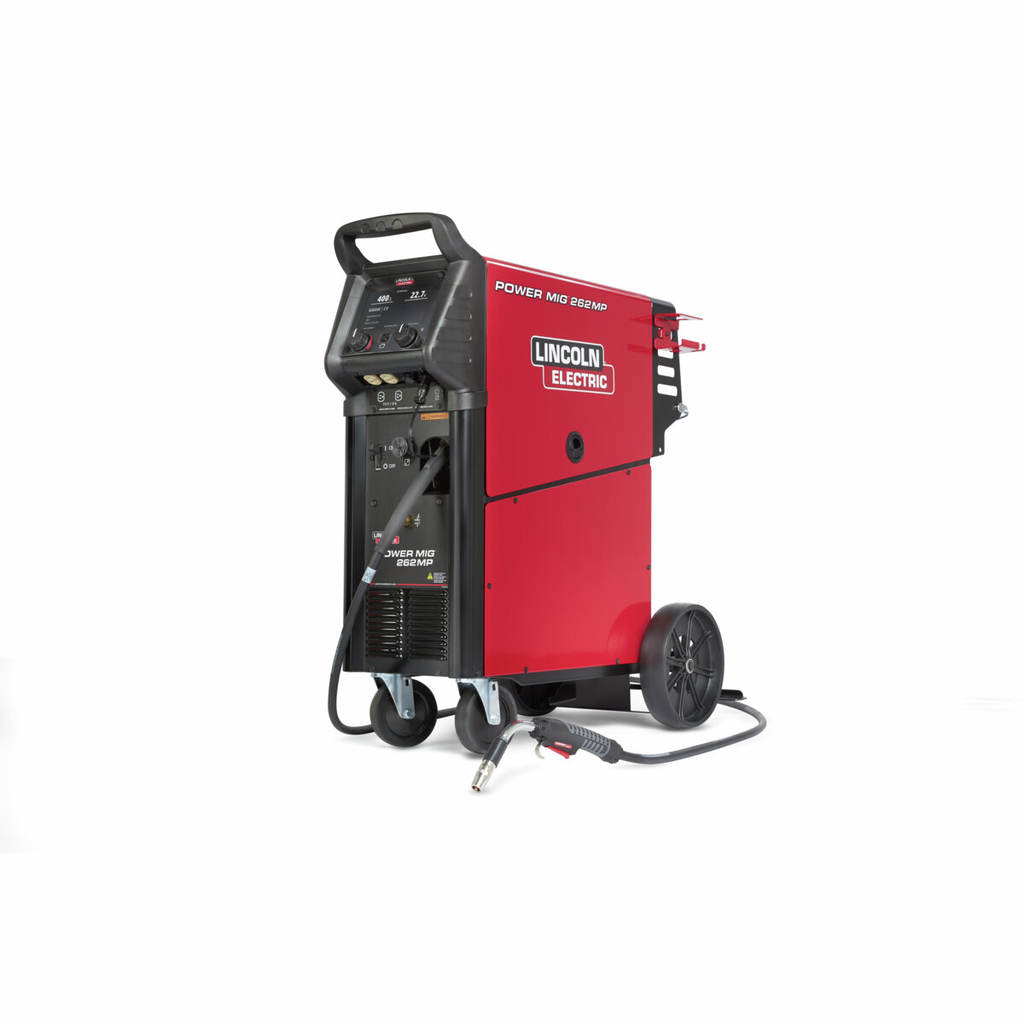

PROFESSIONAL-GRADE PERFORMANCE Experience the ultimate in professional-grade performance with the POWER MIG® 262MP. With a max output of 300 Amps and multi-process functionality including MIG, Pulsed MIG, Stick, Flux-Cored, and TIG, the 262MP delivers all the performance and versatility you expect from the POWER MIG family. Equipped with cutting-edge technology like Ready.Set.Weld®, ArcFX®, and Weld Set Memory, the POWER MIG 262MP puts precise machine control at your fingertips. Navigate effortlessly through its features with the intuitive 7-inch LCD display, ensuring seamless operation and unparalleled operator control. From autobody projects to all-day fabrication, trust the POWER MIG262MP to deliver the unmatched performance and reliability you need.
Features
- 3 Ways to Feed Aluminum - Electronics built in for all three methods using a Push Gun, Spool Gun or a Push-Pull Gun.
- Memory Recall- Easily save and access memories with the enhanced UI.
- 300 Amp Max Output- Perfect for autobody, light fabrication, education, and more.
- Multi-Process Capable - Welds MIG, flux-cored, stick, TIG, and pulsed MIG.
- Stick Settings for 6010 + 6011- Superior performance with cellulosic electrodes.
- Synergic Control - Set weld procedures with one control.

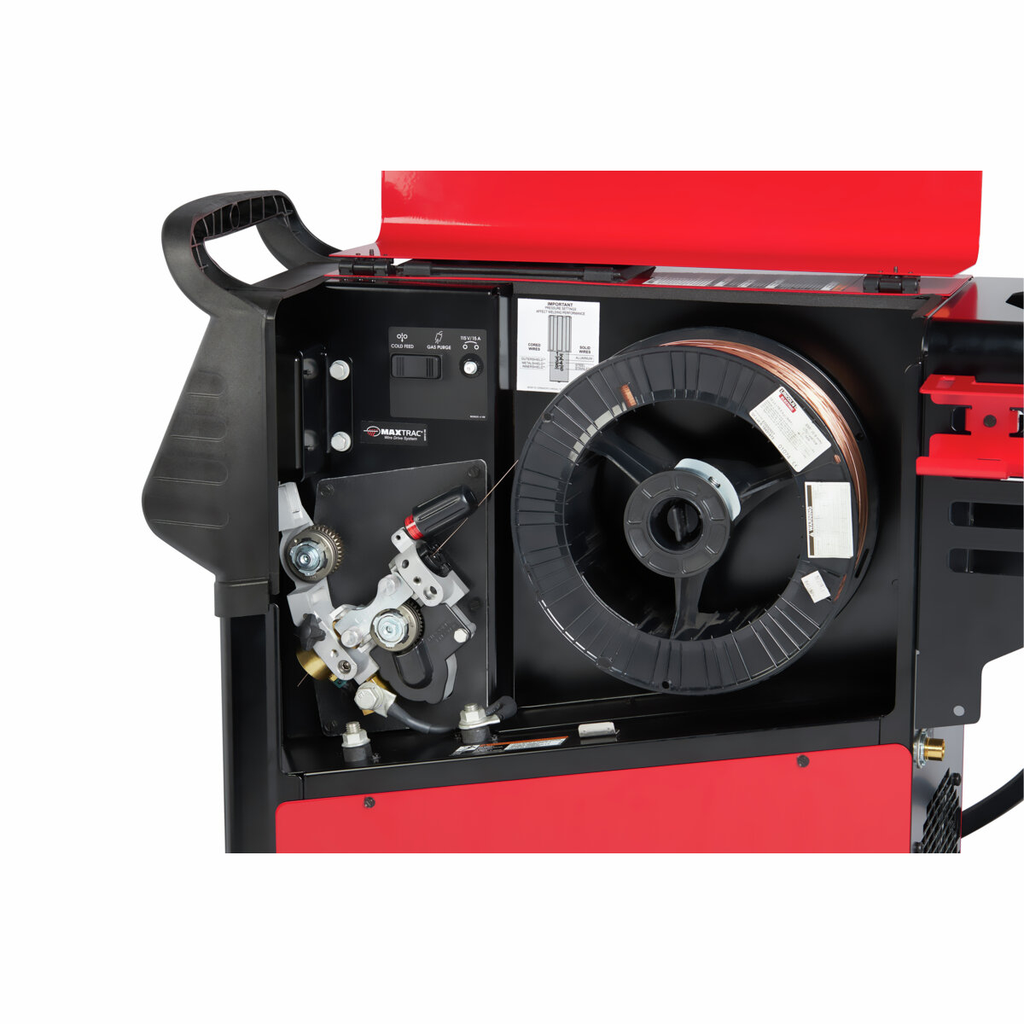

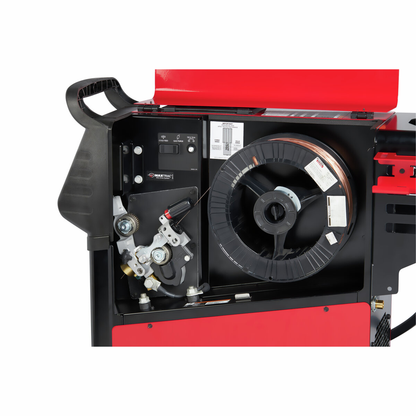

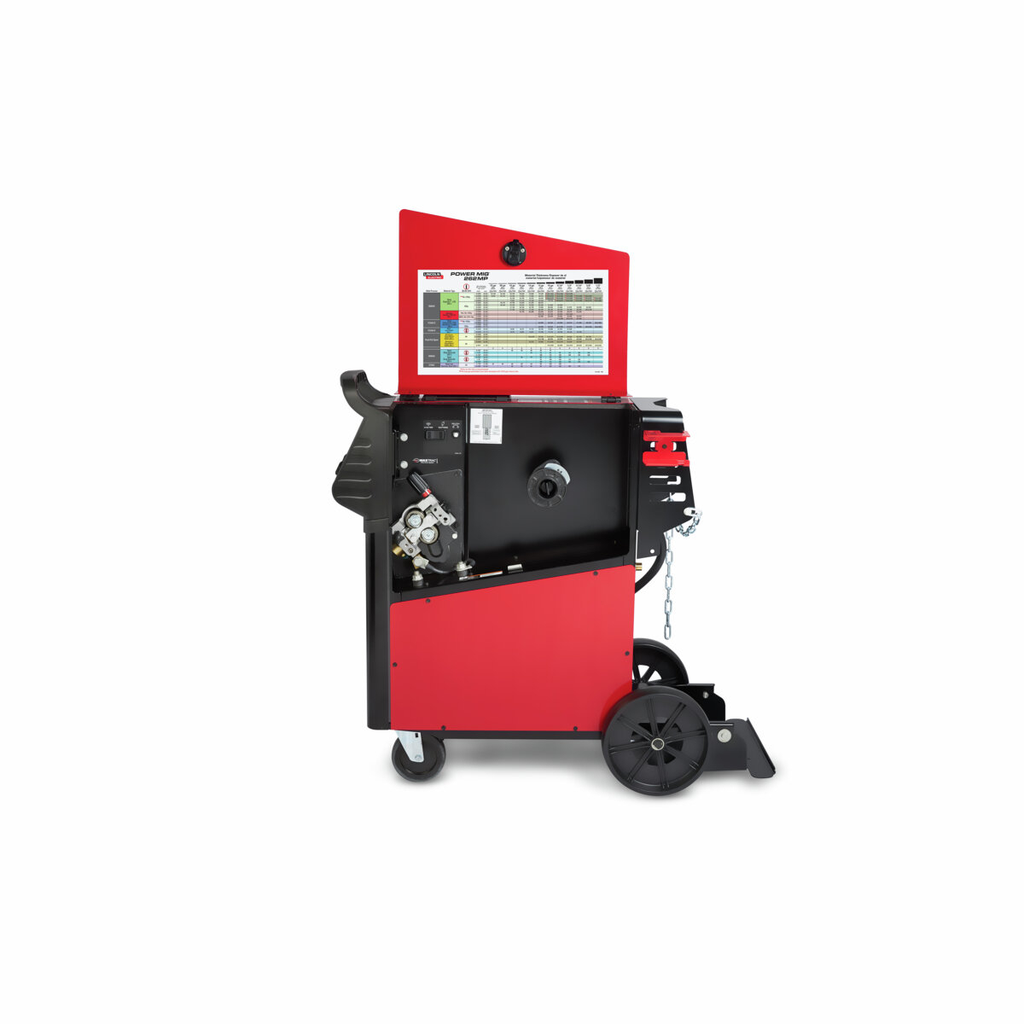

- Rugged MAXTRAC® Industrial Wire Drive - Allows for constant wire feed speed and consistent welds.

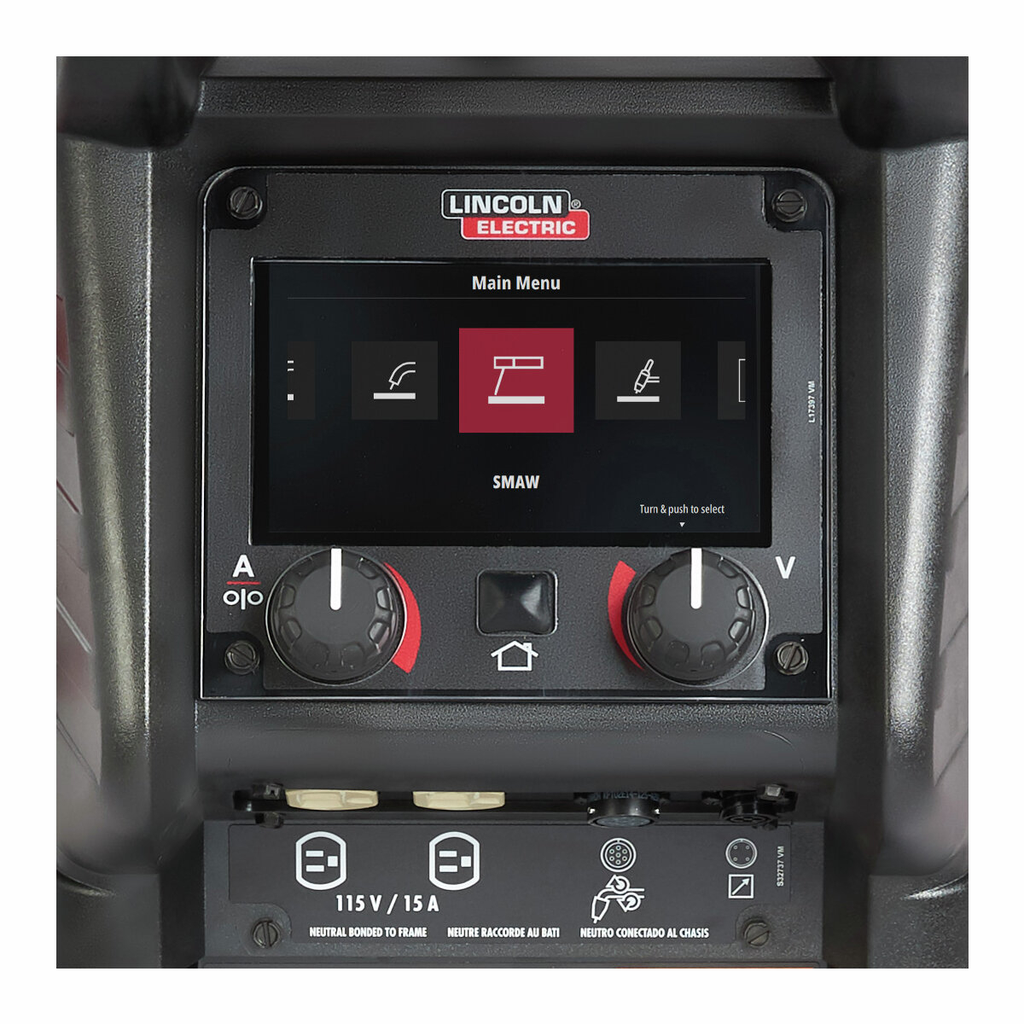

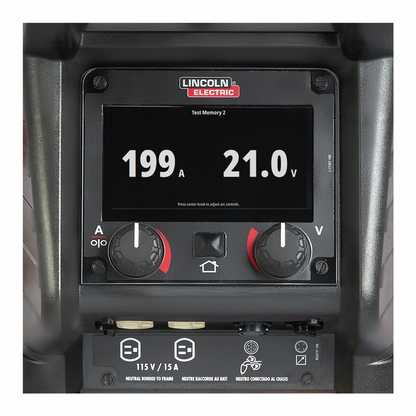

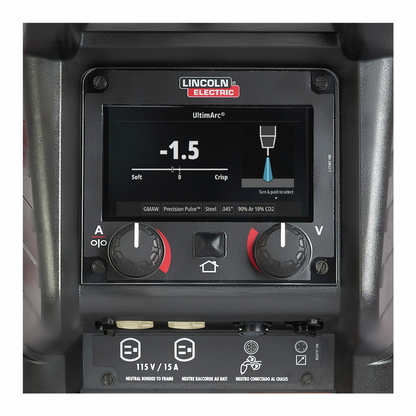

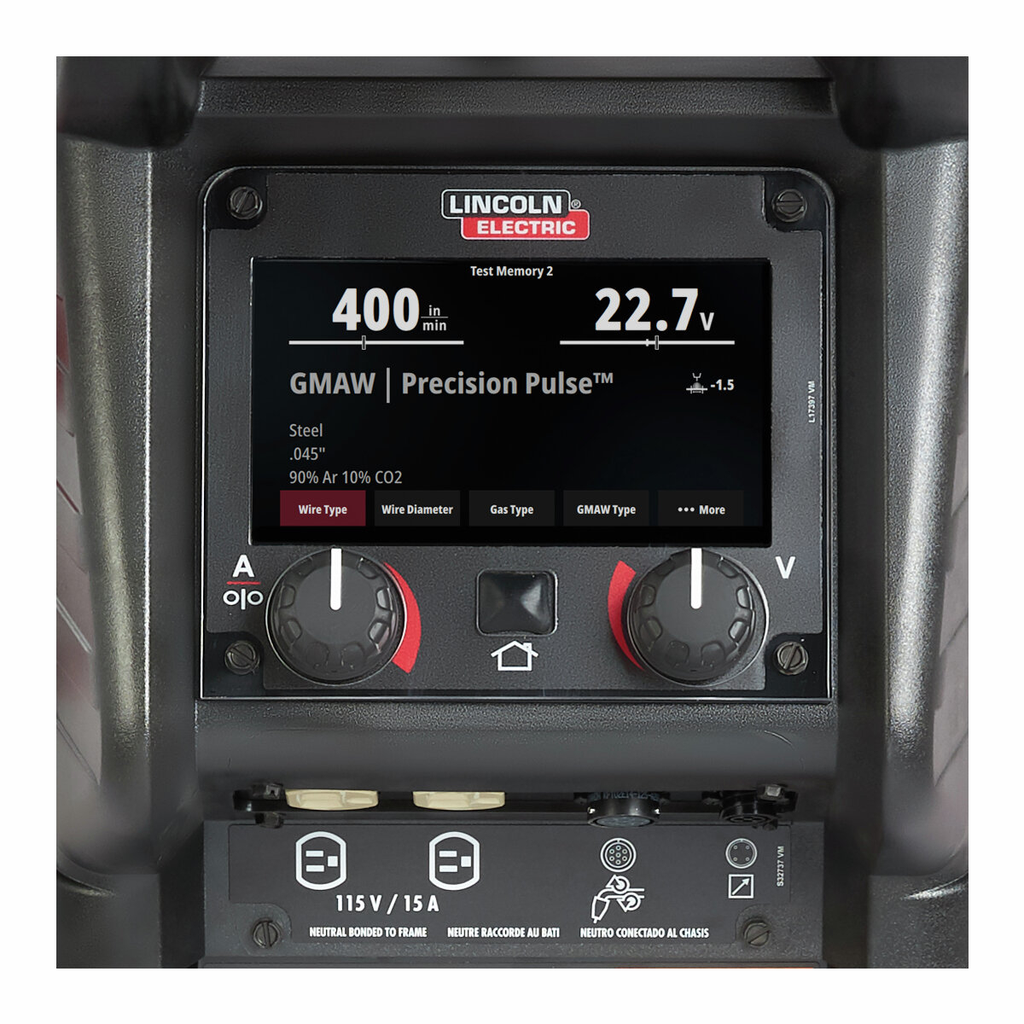

- 7-Inch Color Display - Enhances communication between operator and machine.
- Aluminum Pulse Process - Welds 4XXX and 5XXX series aluminum for superior quality welding.
What's Included?

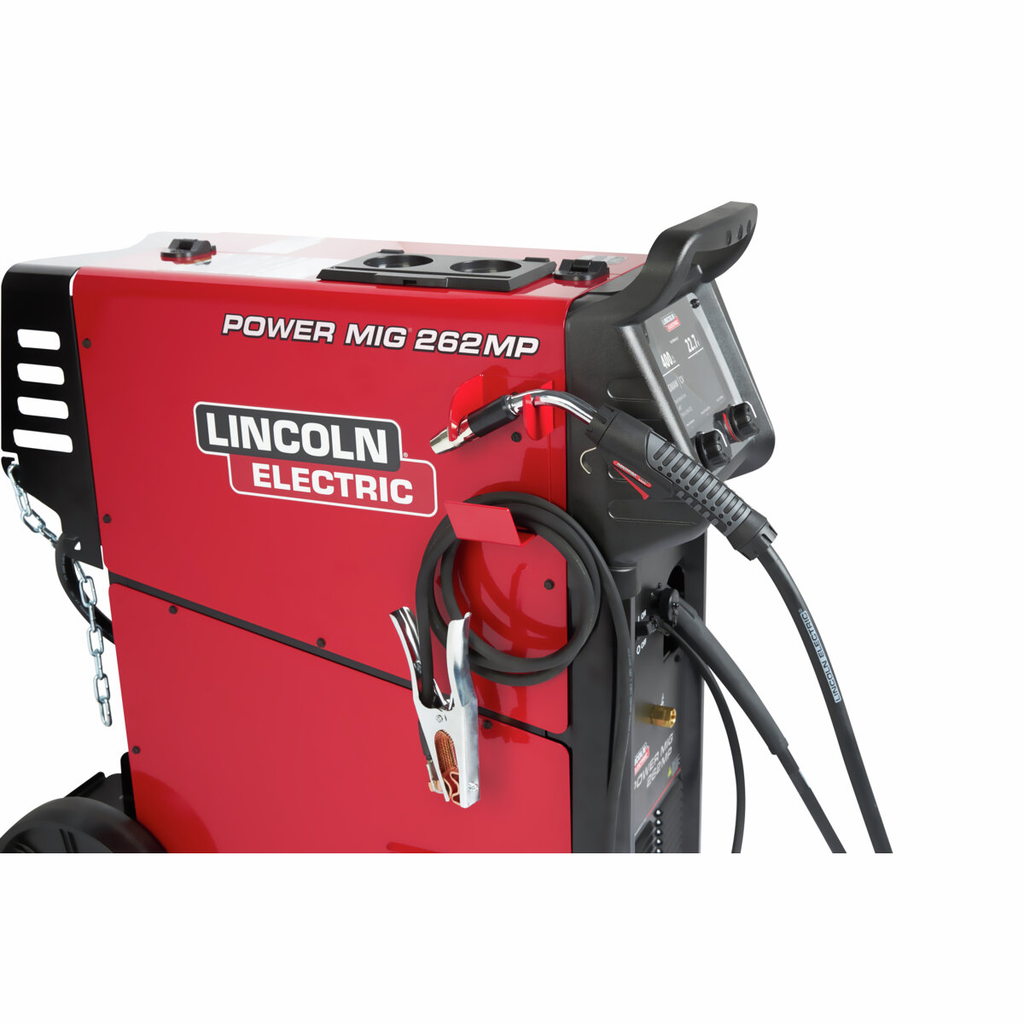

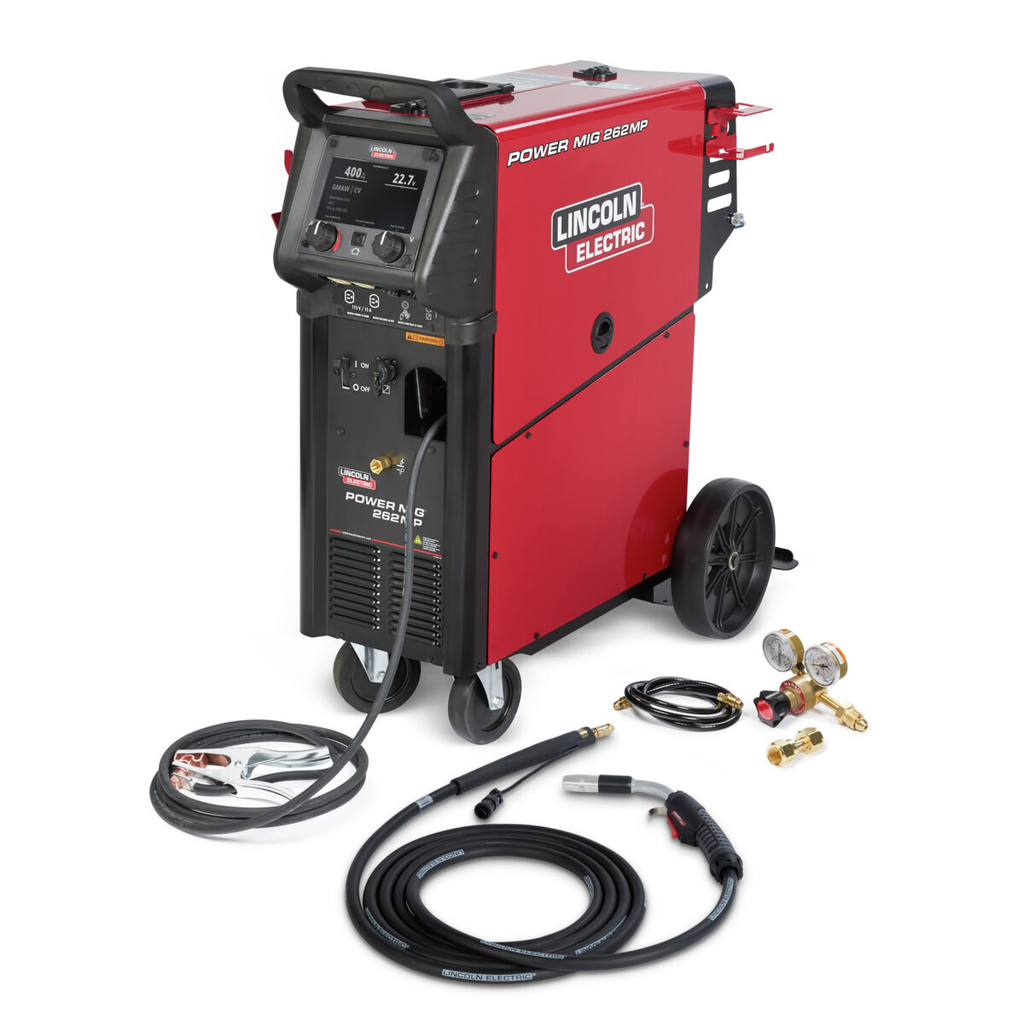

- (1) POWER MIG 262MP Welder, (1) K4530-2 Magnum PRO 250L Welding Gun, (1) K586-1 Adjustable Gas Regulator and Hose, (1) KP1696-1 Drive Roll Kit 0.035/0.045 in, (1) Quick Storage Accessories, (1) 10 ft Work Cable with Clamp, (1) 10 ft Power Cable with Plug
-
Output Range: 5-300 A
-
Max Output: 300 A Max Output
-
Rated Output: 230 A / 26.5 V / 60% Duty Cycle
-
Open Circuit Voltage: 90 V Max OCV
-
Input Power: 208/230/460/575 V, 1 Phase, 60 Hz
-
Input Current: 49.1/44/22.1/17.6 A
-
Processes: Stick (SMAW); Flux-Cored (FCAW); TIG (GTAW); MIG (GMAW); Pulsed MIG (GMAW-P); Flux-Cored Self-Shielded (FCAW-S); Flux-Cored Gas-Shielded (FCAW-G)
-
Wire Feed Speed: 50-700 ipm (1.3-17.7 m/min)
-
Wire Drive Type: Rugged MAXTRAC Industrial Wire Drive
-
Stick Electrode Settings: 6010, 6011
-
Wire Feed Methods: Push Gun, Spool Gun, Push-Pull Gun
-
Aluminum Welding Capability: Welds 4XXX and 5XXX series aluminum
-
Dimensions (HxWxD): 37.5 x 18 x 37.5 in (952.5 x 457.2 x 952.5 mm)
-
Weight: 250 lb (113.4 kg)
-
Output Mode: CC/CV
-
Output Polarity: DC
-
Work Lead Connector Type: Dinse
-
Amphenol Pins (Connector Type): 12
-
Display Size: 7 in Color LCD
-
Equipment Technologies: Digital UI
-
Country of Origin: United States
-
Warranty Length: 3 Years
