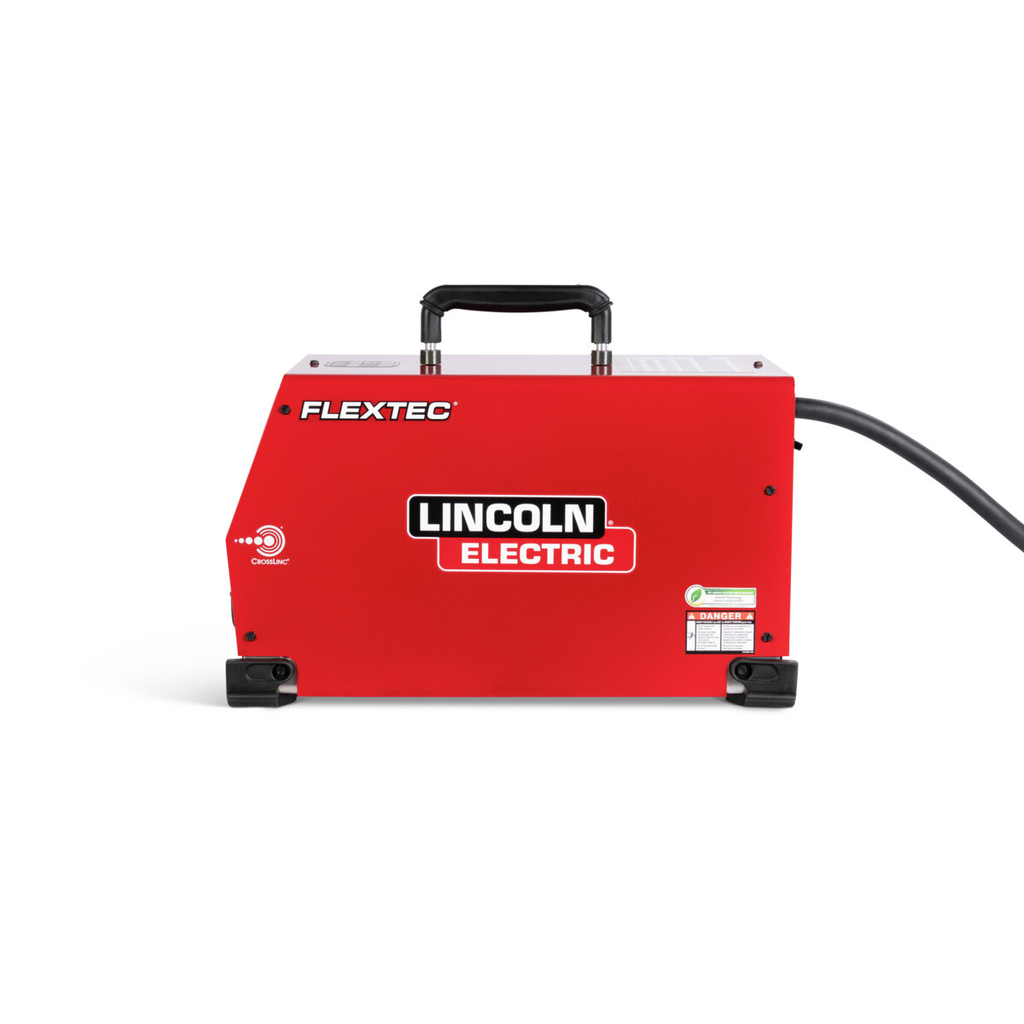

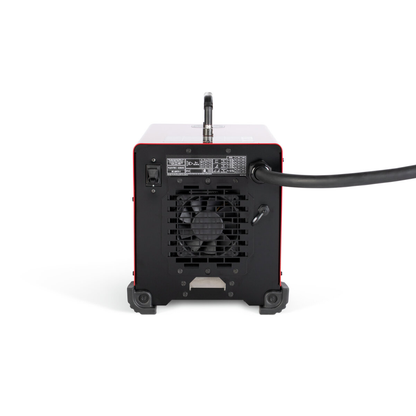

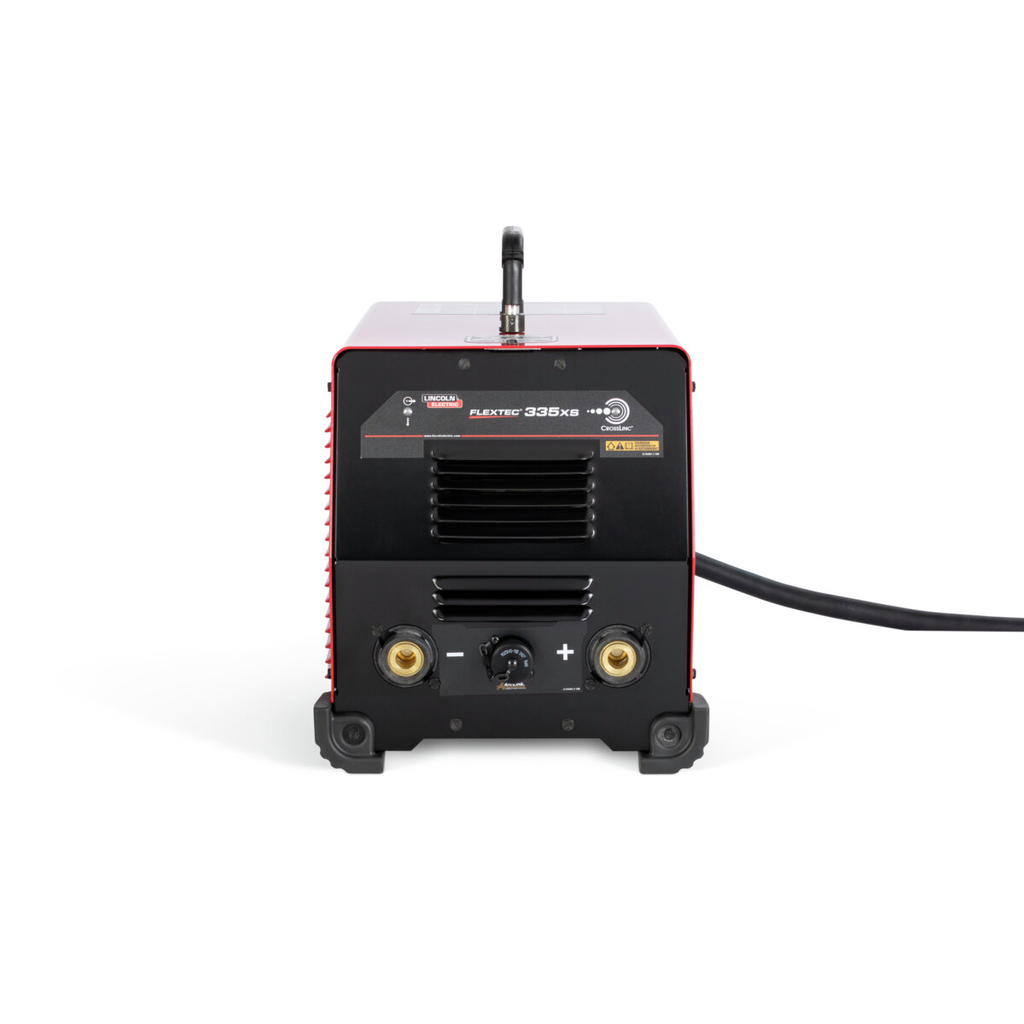

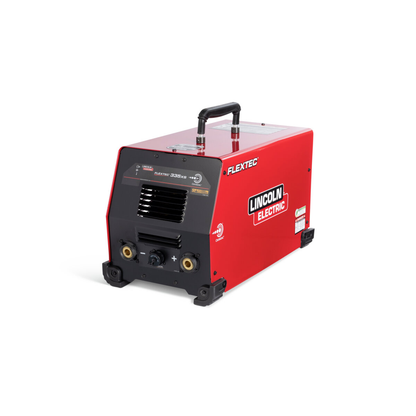

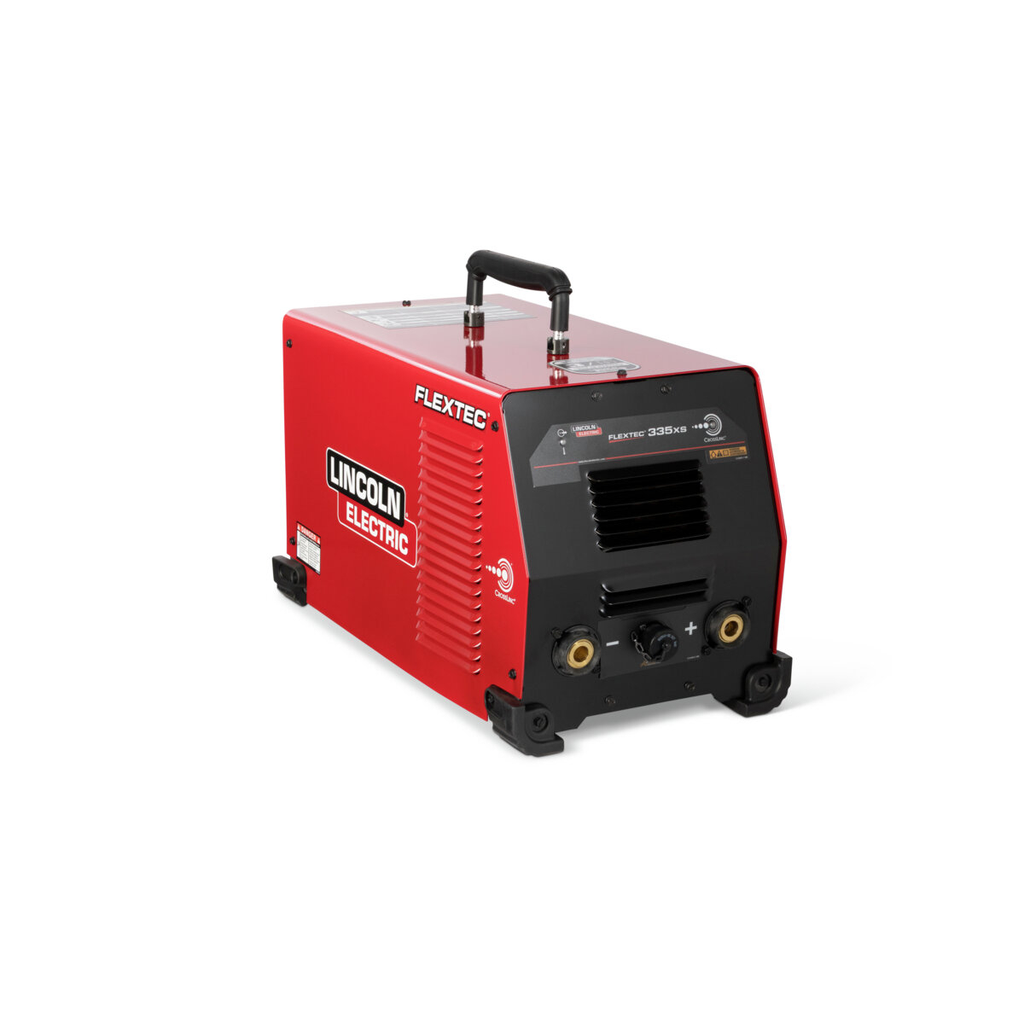

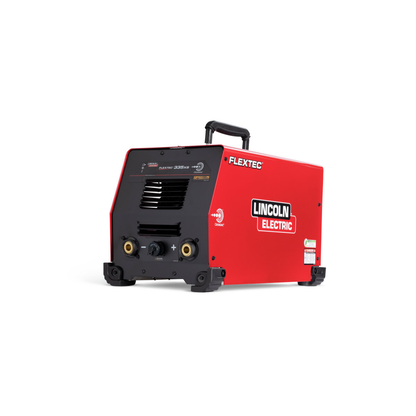

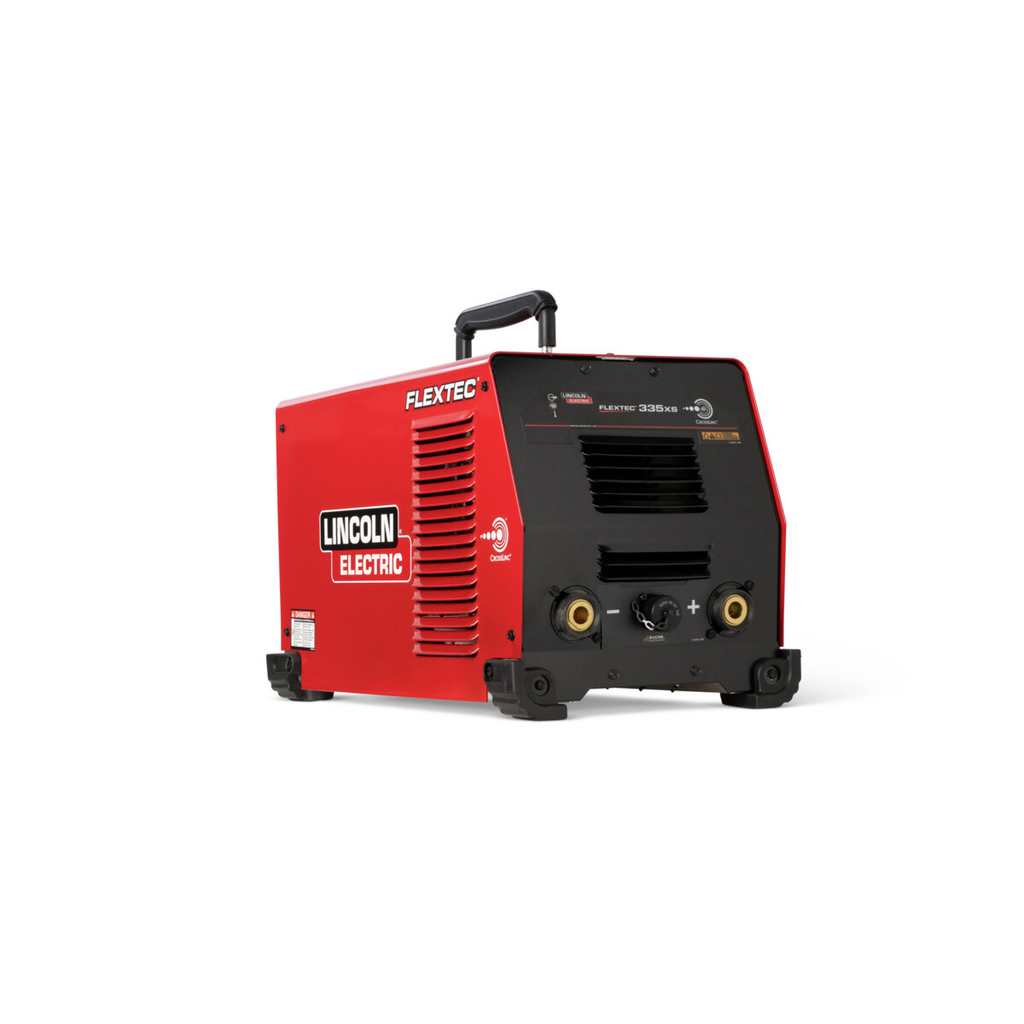

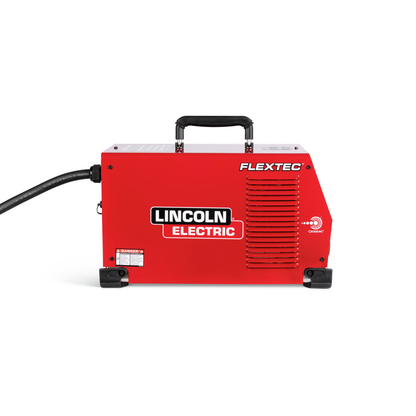

Lincoln Electric, K4851-1, Multi-Process Welder, Portable, 335A, CrossLinc Compatible, 23.37 in x 23.37 in x 13.16 in

The Flextec 335XS is a lightweight and compact multi-process power source optimized for working with Crosslinc accessories. With minimal front controls and automatic weld mode selection based on polarity and the connected CrossLinc accessory (Process Select Assist), setup is straightforward and intuitive. Operators also have the option of utilizing ArcLink compatible feeders for synergic pulse capabilities.

Features

• Portable - Compact and lightweight design at just 50lbs with an ergonomic handle for one person lifting
• Intuitive - Minimal front controls and automatic weld mode selection based on polarity and connected CrossLinc accessory (Process Select Assist).
• Supports CrossLinc feeders and accessories as well as 5-pin ArcLink feeders
• Durable - IP23 rated to withstand the extreme conditions of field environments

• Rated Output Current: 335A
• Duty Cycle: 60%
• Output Voltage at Rated Output: 33.4V
• Output Range: 5-425A
• Input Power: 380/460/575V, 3 phase, 50/60 Hz
• Input Current at Rated Output: 25A/24A/22A
• Height: 13.16 in
• Width: 23.37 in
• Length: 23.37 in
• Weight: 60 lb
• Ingress Protection Rating: IP23
• Compatibility: CrossLinc and 5-pin ArcLink feeders
• Country of Origin: United States
