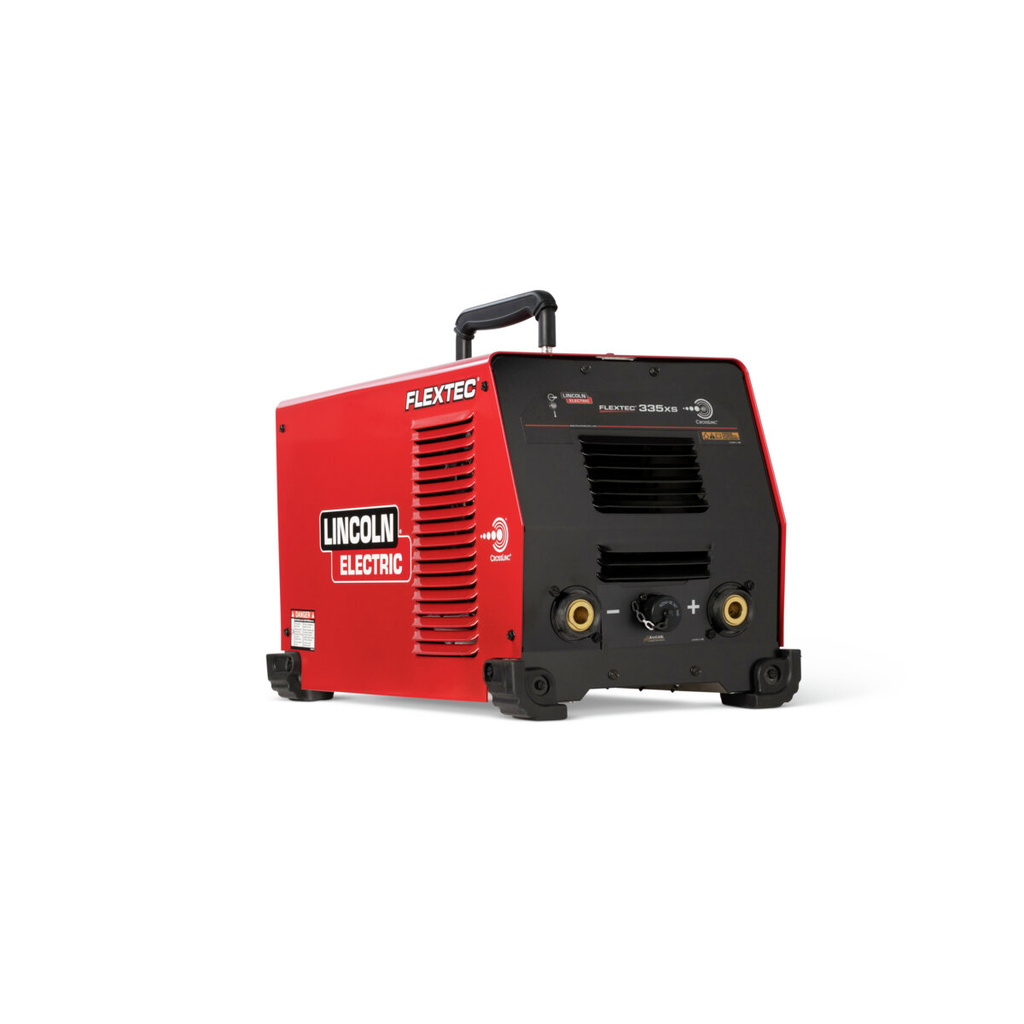

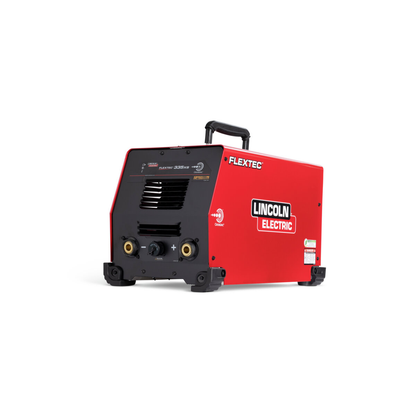

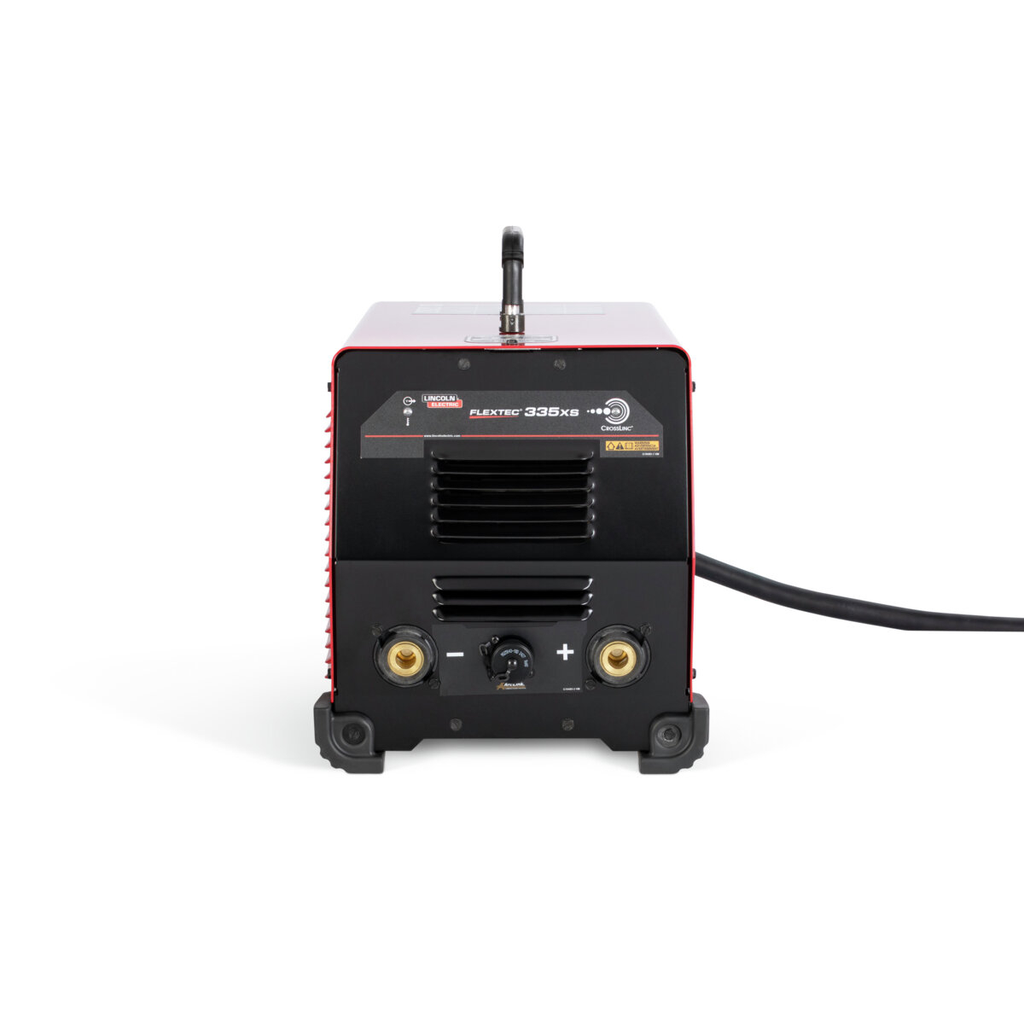

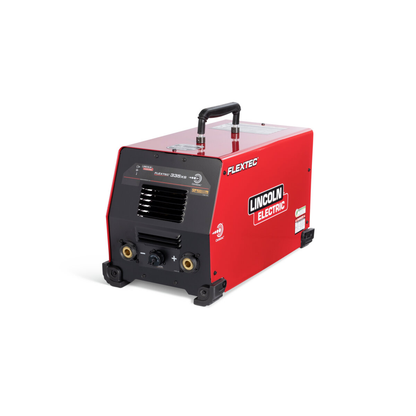

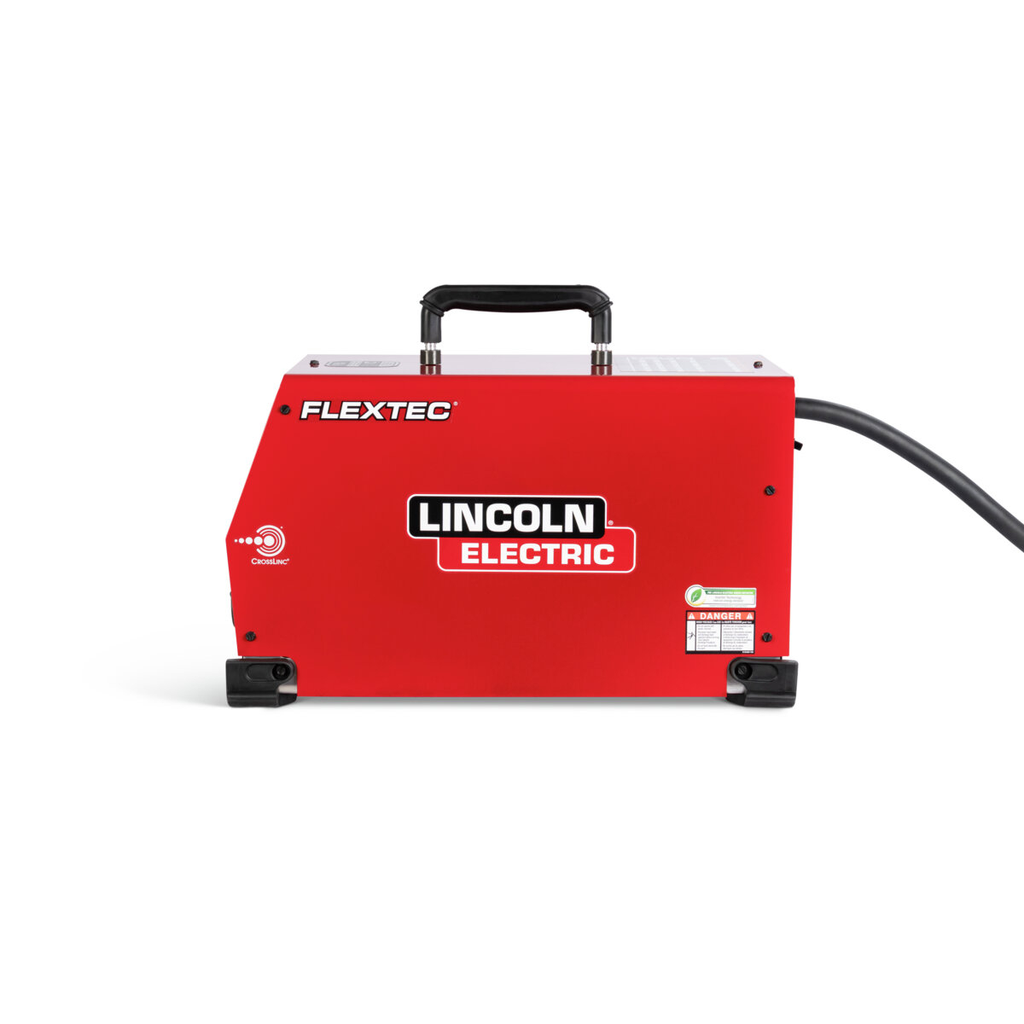

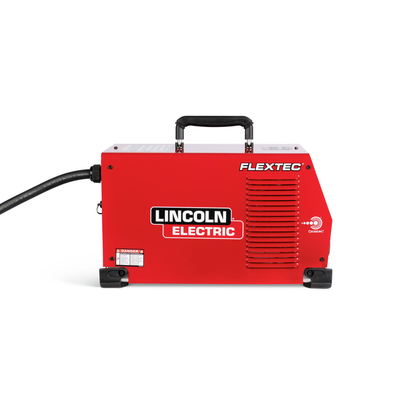

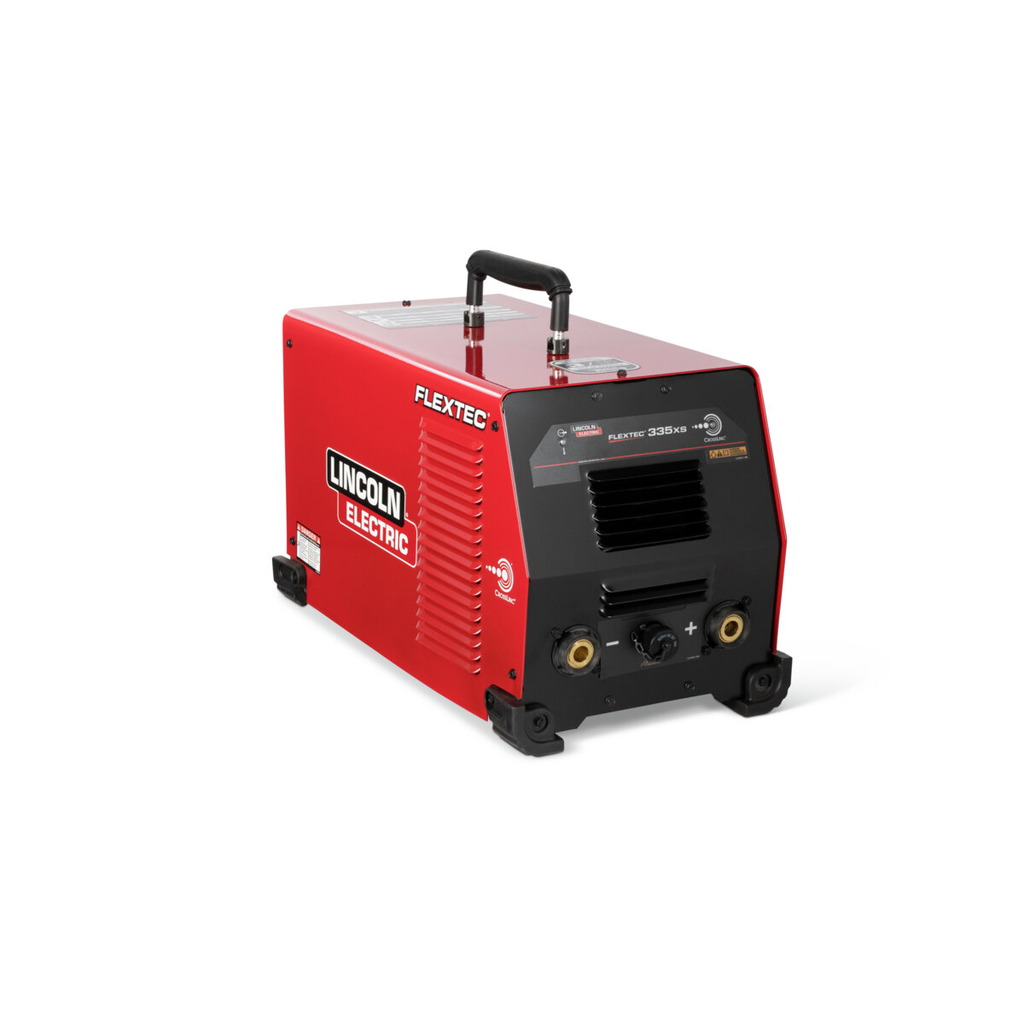

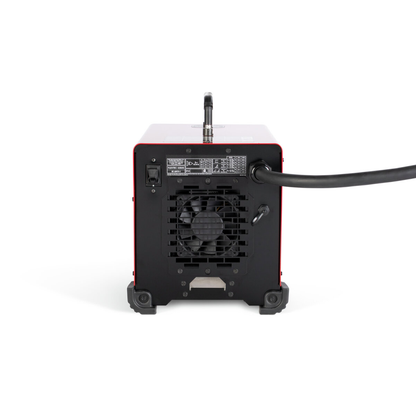

Lincoln Electric, K4850-1, Welding Machine, Multi-process, 335 A, Lightweight, Compact, CrossLinc compatible

The Flextec 335XS is a lightweight and compact multi-process power source optimized for working with Crosslinc accessories. With minimal front controls and automatic weld mode selection based on polarity and the connected CrossLinc accessory (Process Select Assist), setup is straightforward and intuitive. Operators also have the option of utilizing ArcLink compatible feeders for synergic pulse capabilities.

Features

• Durable - IP23 rated to withstand the extreme conditions of field environments
• Intuitive - Minimal front controls and automatic weld mode selection based on polarity and connected CrossLinc accessory (Process Select Assist).
• Portable - Compact and lightweight design at just 50lbs with an ergonomic handle for one person lifting
• Supports CrossLinc feeders and accessories as well as 5-pin ArcLink feeders

• Weight: 60 lbs
• Height: 13.16 in
• Length: 23.37 in
• Width: 23.37 in
• Input Power: 300 A / 32 V / 100%
• Rated Output Current: 335 A
• Rated Output Voltage: 33.4 V
• Duty Cycle: 60%
• Input Current @ Rated Output: 23 A
• Compliance: IP23 Rated
• Country of Origin: United States
