Lincoln Electric, K4785-1, Multi-Process Welder, 300-399 A, 1 Ph, Inverter/Chopper, Push Gun; Spool Gun; 7 in Display

THE MULTI-PROCESS WORKHORSE. More than just a MIG machine, the POWER MIG® 360MP is a professional grade multi-process welding solution for you. This machine is capable of Stick, TIG, MIG and Flux-Cored welding, and is packed with advanced features such as MIG and TIG Pulse Welding, Ready Set Weld quick set up, ArcFX technology and Memory Capability. All of these features are communicated through an easy to use, highly visible, 7 Inch color display.

Features

• Multi-Process Capable - Welds MIG, flux-cored, stick, TIG, pulsed MIG, and advanced processes like Pulse-On-Pulse®and Power Mode®.
• Rugged MAXTRAC® Industrial Wire Drive - Allows for constant wire feed speed and consistent welds.
• 3 Ways to Feed Aluminum - Electronics built in for all three methods using a Push Gun, Spool Gun or a Push-Pull Gun.
• Synergic Control - Set weld procedures with one control.
• Aluminum Pulse Process - Welds 4XXX and 5XXX series aluminum for superior quality welding.
• Pulse-on-Pulse® - Delivers a stacked dime appearance when welding aluminum.
• 7-Inch Color Display - Enhances communication with the operator
• Power Mode® - Maintains a stable, smooth arc for short arc welding on steel.

What's Included?

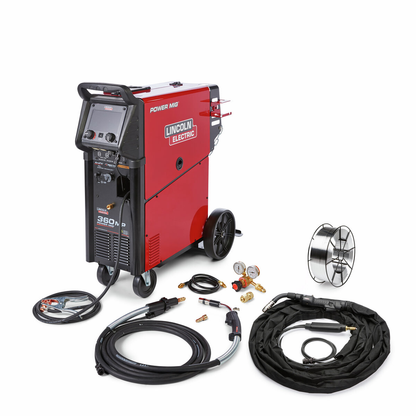

• (1)POWER MIG 360MP Multi-Process Welder, (1) K2951-2 Magnum® PRO Curve™ 300 Gun 15 ft (4.5 m), (1) K4797-2 Magnum PRO AL Front Trigger Gun 25 ft (7.6 m), (1) ED029573 3/64 in SuperGlaze® 5554 16 lb Spool, (1) KP1695-3/64A Aluminum Drive Roll Kit 3/64 in, (1) K2910-2 Connector Cable 12F to 7M, (1) Drive Rolls 0.035 in (0.9 mm), (1) Drive Rolls 0.045 in (1.2 mm), (1) Wire Guides 0.035 in (0.9 mm), (1) Wire Guides 0.045 in (1.2 mm), (1) Gas Regulator and Hose, (1) Work Clamp and Cable, (1) 230V Input Cord and Plug, (1) 115V AC Auxiliary Power Receptacle, (1) Storage Compartment

• Output Current: 5-360 Amps
• Max Open Circuit Voltage: 70V
• Duty Cycle: 60%
• Input Voltage: 208/230/460/575V, Single Phase, 50/60 Hz
• Input Phase: 1Ph
• Output Mode: CC; CV; CC/CV
• Output Polarity: DC
• Processes: MIG, Stick, TIG, Flux-Cored, Pulsed MIG, Pulse-On-Pulse
• Welding Technology: Inverter/Chopper
• Wire Feed Speed: 50-700 ipm (1.3-17.7 m/min)
• Material Compatibility: 4XXX and 5XXX series aluminum, Steel
• Wire Feeding Methods: Push Gun, Spool Gun, Push-Pull Gun
• Display Size: 7 in Color Display
• Cooling: Air
• Dimensions (H x W x D): 37.3 x 18 x 40.4 in (947 x 457 x 1026 mm)
• Net Weight: 265 lb (120.2 kg)
• Country of Origin: United States
• Warranty Length: 3 Years
