Lincoln Electric, K4778-1, Multi-Process Welder, 208/230/460/575V Input, 300-399A Output, 7 in Display, DC Output

THE MULTI-PROCESS WORKHORSE. More than just a MIG machine, the POWER MIG® 360MP is a professional grade multi-process welding solution for you. This machine is capable of Stick, TIG, MIG and Flux-Cored welding, and is packed with advanced features such as MIG and TIG Pulse Welding, Ready Set Weld quick set up, ArcFX technology and Memory Capability. All of these features are communicated through an easy to use, highly visible, 7 Inch color display.

Features

• Power Mode® - Maintains a stable, smooth arc for short arc welding on steel.
• Pulse-on-Pulse® - Delivers a stacked dime appearance when welding aluminum.
• 7-Inch Color Display - Enhances communication with the operator
• Aluminum Pulse Process - Welds 4XXX and 5XXX series aluminum for superior quality welding.
• Synergic Control - Set weld procedures with one control.
• Multi-Process Capable - Welds MIG, flux-cored, stick, TIG, pulsed MIG, and advanced processes like Pulse-On-Pulse®and Power Mode®.
• Rugged MAXTRAC® Industrial Wire Drive - Allows for constant wire feed speed and consistent welds.
• 3 Ways to Feed Aluminum - Electronics built in for all three methods using a Push Gun, Spool Gun or a Push-Pull Gun.

What's Included?

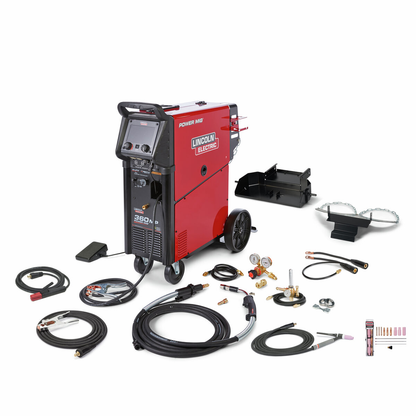

• POWER MIG® 360MP Multi-Process Welder, Magnum® PRO Curve™ 300 Gun 15 ft (4.5 m), Drive Rolls and Guide for Steel 0.035 in (0.9 mm) and 0.045 in (1.2 mm), Gas Regulator and Hose, Work Clamp and Cable, 230V Input Cord and Plug, 115V AC Auxiliary Power Receptacle, Storage Compartment, PTA-17F TIG Torch Ready-Pak 12.5 ft, Stick Electrode Holder and Cable, Foot Amptrol 25 ft, Dual Cylinder Cart, Weld Cable Package, Gas Regulator, TIG Torch Twist-mate to Stud Adapter Cable, Parts Kit for PTA-17 TIG Torch

• Input Power: 208/230/460/575 V, 1 Phase, 50/60 Hz
• Rated Output Current: 320 A at 30 V, 60% duty cycle
• Output Range: 5-360 A
• Input Current: 55/50/25/20 A
• Max Output: 300-399 A
• Output Polarity: DC
• Output Mode: CC; CV; CC/CV
• Welding Technology: Inverter/Chopper
• Wire Feed Speed: 50-700 ipm (1.3-17.7 m/min)
• Max Open Circuit Voltage: 70 V
• Cooling: Air
• Dimensions (HxWxD): 37.3 x 18 x 40.4 in (947.4 x 457.2 x 1026.2 mm)
• Weight: 327.25 lb (148.4 kg)
• Polarity: DC
• Input Voltage Type: Multiple
• Input Phase: 1
• Input Voltage: 208/230/460/575 V
• Input Hertz: 50/60 Hz
• Welding Processes: MIG, Pulsed MIG, Flux-Cored, Stick, TIG
• Material Capability: 4XXX and 5XXX series aluminum
• Control Type: Synergic Control with Memory Capability
• Wire Feed Drive: Rugged MAXTRAC4 Industrial Wire Drive
• Aluminum Feed Options: Push Gun, Spool Gun, Push-Pull Gun
• Advanced Welding Features: Power Mode4, Pulse-On-Pulse4, TIG Pulse, ArcFX4 Technology
• Display: 7-Inch Color Display
• Country of Origin: United States
• Warranty Length: 3 Years
• Work Clamp Included: No
