Lincoln Electric, K4467-1, Multi-Process Welder, 350 Max Rating; 320A/30V/60%; Inverter/Chopper; 5-360A

THE MULTI-PROCESS WORKHORSE. More than just a MIG machine, the POWER MIG® 360MP is a professional grade multi-process welding solution for you. This machine is capable of Stick, TIG, MIG and Flux-Cored welding, and is packed with advanced features such as MIG and TIG Pulse Welding, Ready Set Weld quick set up, ArcFX technology and Memory Capability. All of these features are communicated through an easy to use, highly visible, 7 Inch color display.

Features

• Power Mode® - Maintains a stable, smooth arc for short arc welding on steel. Improved penetration on thicker aluminum sections.
• Rugged MAXTRAC® Industrial Wire Drive - Allows for constant wire feed speed and consistent welds.
• Aluminum Pulse Process - Welds 4XXX and 5XXX series aluminum for superior quality welding.
• Synergic Control - Set weld procedures with one control.
• 3 Ways to Feed Aluminum - Electronics built in for all three methods using a Push Gun, Spool Gun or a Push-Pull Gun.
• Pulse-on-Pulse® - Delivers a stacked dime appearance when welding aluminum.
• 7-Inch Color Display - Enhances communication with the operator
• Multi-Process Capable - Welds MIG, flux-cored, stick, TIG, pulsed MIG, and advanced processes like Pulse-On-Pulse® and Power Mode®.

What's Included?

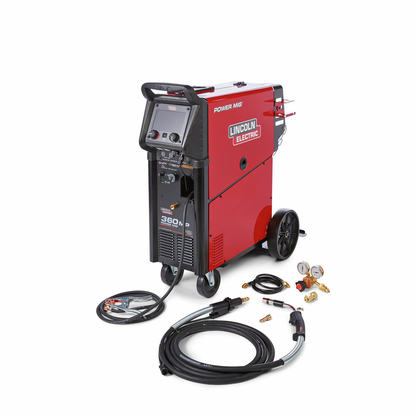

• (1) POWER MIG 360MP Multi-Process Welder, (1) K2951-2 Magnum® PRO Curve™ 300 Gun 15 ft (4.5 m), (1) Drive Rolls 0.035 in (0.9 mm), (1) Drive Rolls 0.045 in (1.2 mm), (1) Wire Guides 0.035 in (0.9 mm), (1) Wire Guides 0.045 in (1.2 mm), (1) Gas Regulator and Hose, (1) Work Clamp and Cable, (1) 230V Input Cord and Plug, (1) 115V AC Auxiliary Power Receptacle, (1) Storage Compartment

• Rated Output: 320A, 30V, 60% Duty Cycle
• Output Range: 5-360 Amps
• Max Output: 350A
• Input Power: 208/230/460/575V, 1 Phase, 50/60 Hz
• Input Current: 55A/50A/25A/20A
• Output Polarity: DC
• Output Mode: CC, CV, CC/CV
• Max Open Circuit Voltage: 70V
• Width: 18 in
• Height: 37.3 in
• Length: 40.4 in
• Weight: 265 lb (120.2 kg)
• Material: Industrial Wire Drive Components (Rugged MAXTRAC4)
• Cooling: Air
• Welding Technology: Inverter/Chopper
• Processes: MIG, Pulsed MIG, Flux-Cored, Stick, TIG
• Multi-Process Capable: MIG, Flux-Cored, Stick, TIG, Pulsed MIG, Pulse-On-Pulse4, Power Mode4
• Control Type: Synergic Control
• Welding Aluminum: Welds 4XXX and 5XXX series aluminum with Aluminum Pulse Process Pulse-on-Pulse4
• Aluminum Feeding Methods: Push Gun, Spool Gun, Push-Pull Gun
• Display Size: 7 in Color Display
• Country of Origin: United States
• Warranty Length: 3 Years
