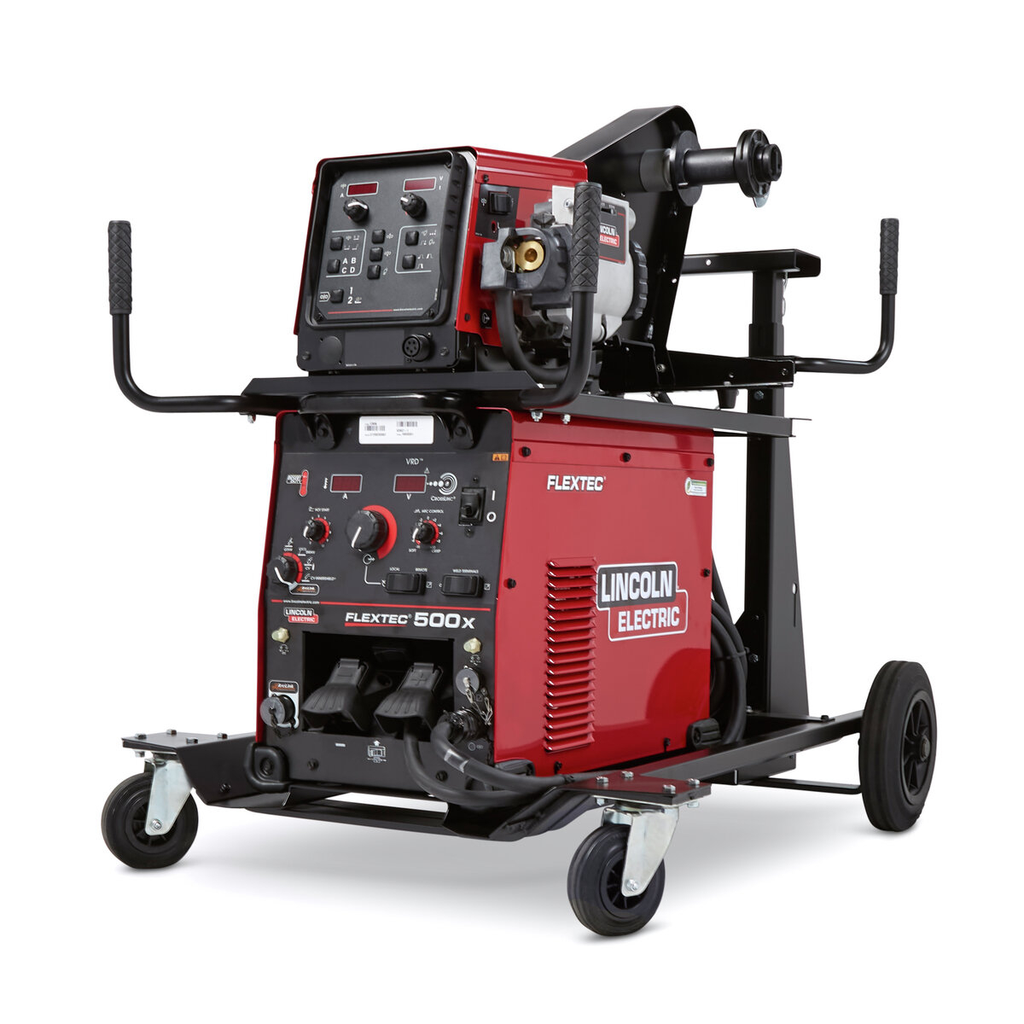

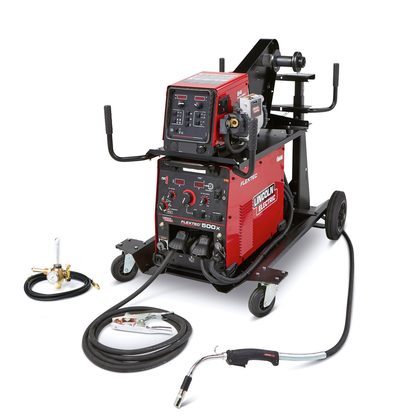

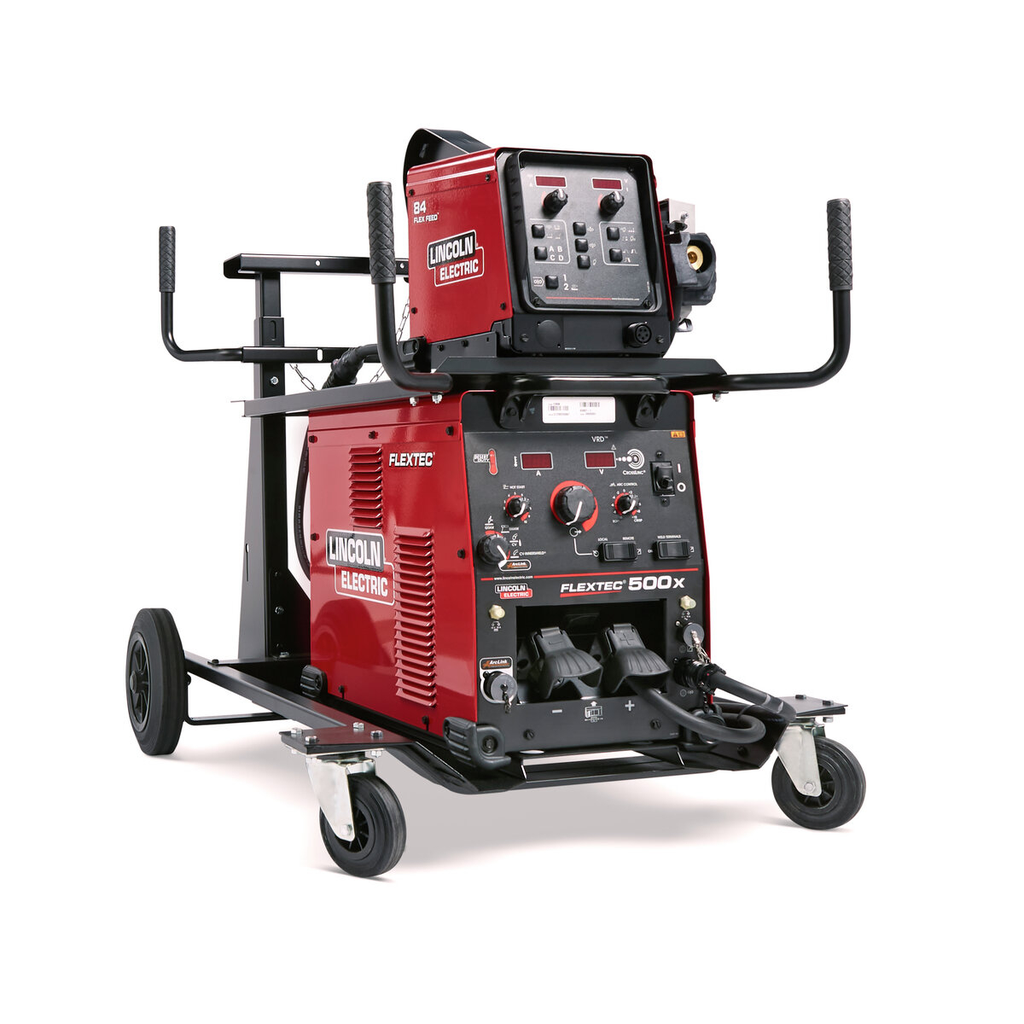

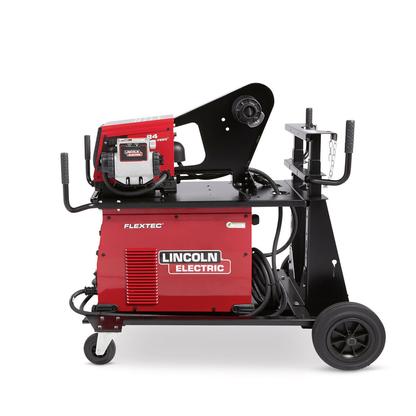

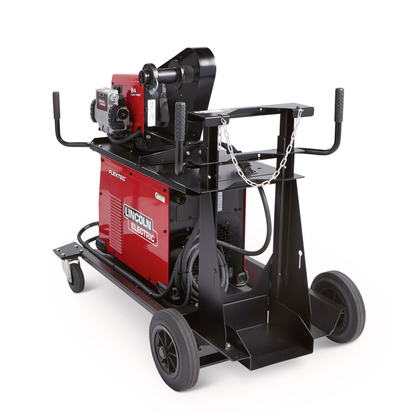

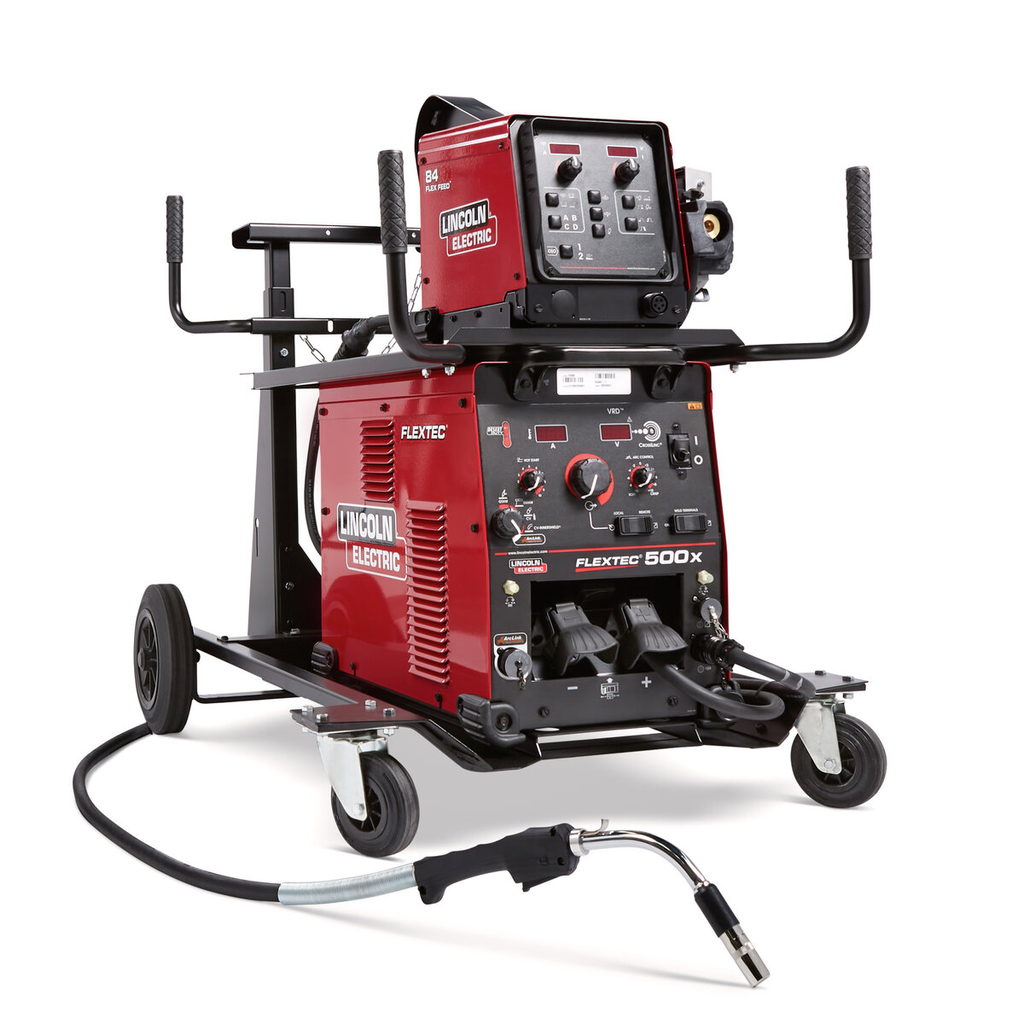

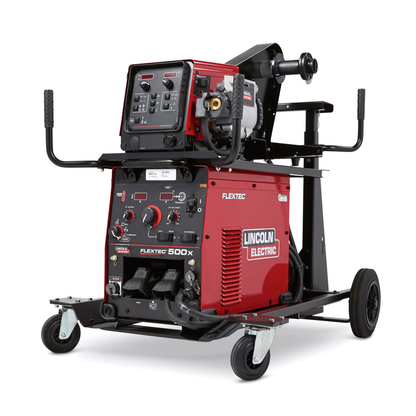

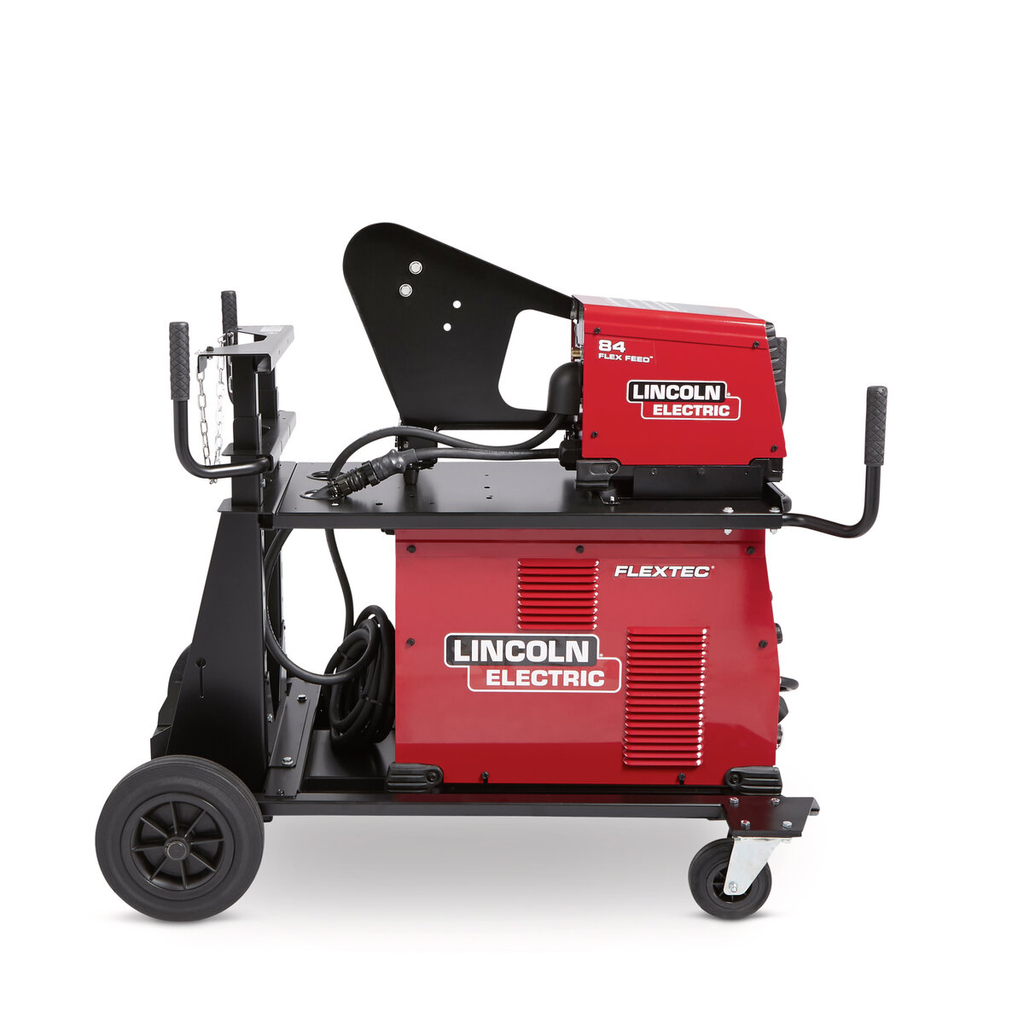

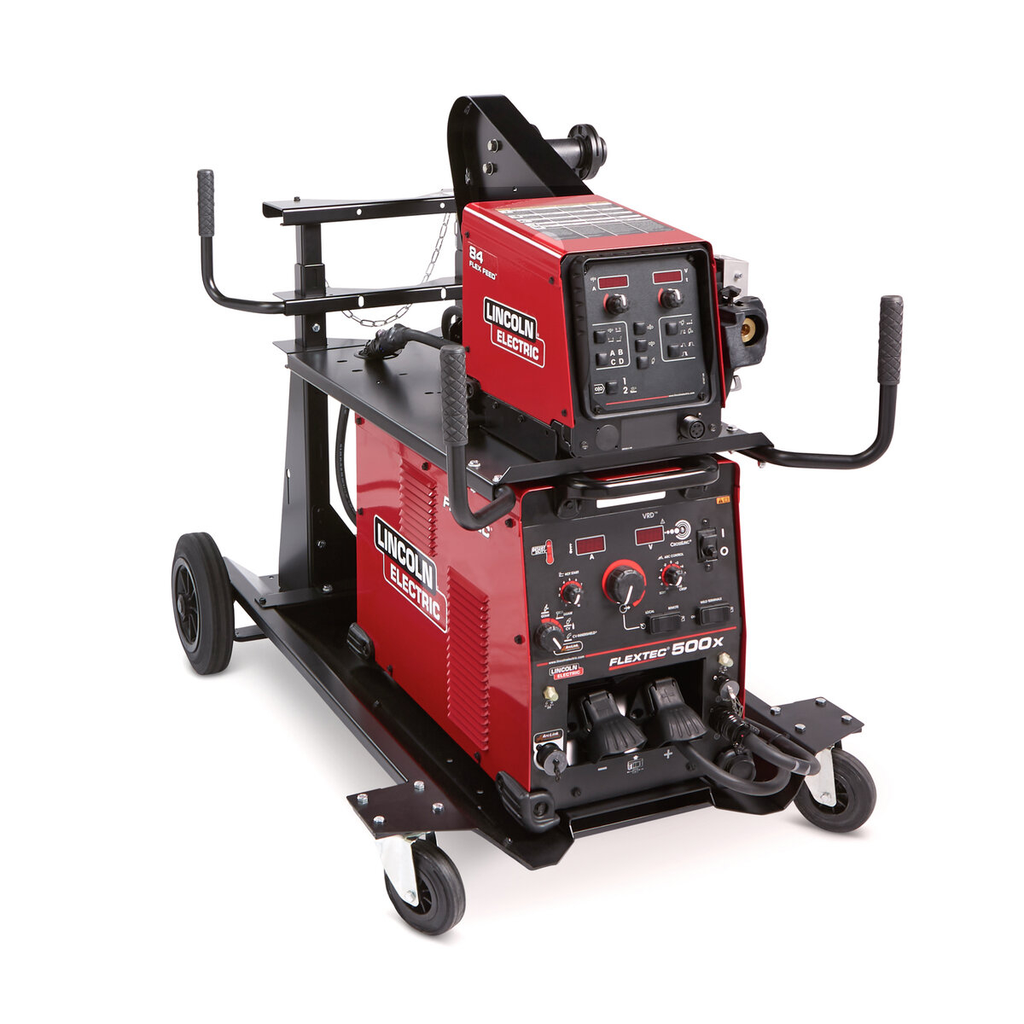

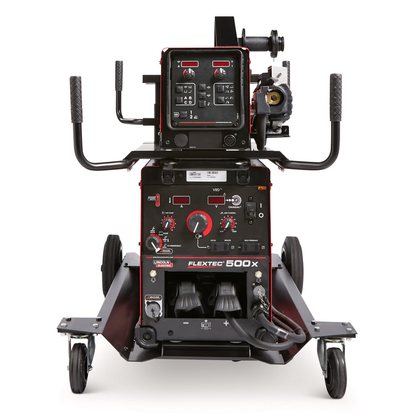

Powerful Performance From the Ground Up. Out in the shipyards, construction sites and fabrication shops, it pays to keep it simple. The Flextec 500X multi-process welder is easy to set up and operate, yet rugged enough to stand up to heavy-duty indoor and outdoor applications. Basic pulse MIG capability is standard on the Flextec 500X , including weld modes for carbon steel, stainless steel, aluminum and metalcore electrodes. The Flextec 500X welder is also equipped with CrossLinc® technology giving you the flexibility to control the machine from hundreds of feet away without a control cable. Ready-Pak ships fully assembled and comes with the Flex Feed 84 wire feeder that features consistent feeding over long conduit runs, 4 user memories, and advanced MaxTrac® wire drive design. This bundle also includes the Magnum PRO Curve 400 welding gun, inverter and feeder cart, flowmeter regulator and hose, and the necessary cables and connectors.
Features
- Compatible with all 42VAC wire feeders for MIG and Flux-Cored welding
- IP 23 rating means the Flextec 500X welder will excel in outdoor environments, such as construction sites and shipyards.
- Arclink® enabled power source provides synergic pulse modes.
- Flextec power sources support multiple weld processes: MIG, TIG, Stick, Gouging and FCAW. Flextec welders can be used with nearly all Lincoln Electric wire feeders due to available feeder communication connections.
- Durable trayed and potted PC boards for electronics environmental protection
- Ready-Pak ships fully assembled and comes with the Flex Feed 84 industrial wire feeder for high-productivity, heavy fabrication applications.
- CrossLinc Technology communicates through a standard weld cable to enable voltage or current control at the arc without a control cable.
What's Included?
- (1) K3607-1 Flextec 500X Welder, (1) K5000-2 Flex Feed 84 Wire Feeder, (1) KP1505-1 4 Roll Drive and Wire Guide Kit 0.035-0.045 in, (1) K2952-2-10-45 Magnum PRO Curve 400 Gun and Cable Ready-Pak, (1) 3100211 Harris Flowmeter Regulator and Hose, (1) K1797-10 Control Cable Extension - Male 14-Pin to Female 14-Pin - 10 ft, (1) K1842-10 3/0 Welding Cable 10 ft, (1) K2149-1 Work Lead Package 15 ft, (1) K4068-1 Inverter Cart Mounting Bracket Kit, (1) K3056-2 Flextec 500 Locking Foot Kit, (1) K3059-4 Inverter and Wire Feeder Cart
-
Input Power: 380/460/575 V, 3 Phase, 50/60 Hz
-
Rated Output Current: 500A at 40V, 60% Duty Cycle; 450A at 38V, 100% Duty Cycle
-
Output Range: 5-500A
-
Input Current: 39/31/31 A, 33/27/27 A
-
Max Rated Output Capable: 600A
-
Input Voltage: 380/400/415/460/575 V
-
Input Phase: 3 Phase
-
Temperature Rating at Rated Output: 55 C
-
Length: 27.5 in (699 mm)
-
Width: 14 in (356 mm)
-
Height: 18.8 in (477 mm)
-
Weight: 352 lb (160 kg)
-
Max Spool Size: 60 lb (30 kg)
-
Max Wire Diameter (Solid): 3/32 in (2.4 mm)
-
Max Wire Diameter (Cored): 0.120 in (3 mm)
-
Number of Driven Rolls: 4 rolls
-
Welding Technology: Inverter/Chopper
-
Configuration: Single
-
Wire Configuration: Single
-
Feedhead Configuration: Single
-
Feeder Type: Bench
-
Work Lead Connector Type: Lug
-
Wire Feeder Supply Voltage: 42 VAC
-
Arclink Connector: Yes
-
Machines Communication Technology: Analog, Digital, CrossLinc, ArcLink
-
Communication Technology: Analog
-
Power Source to Feeder Communication Connector Type: 14-pin
-
Input Icon: 3 Phase; 50/60 Hz
-
Output Icon: DC; CC/CV
-
Amphenol Pins (Type of Connector): 5; 12
-
Gun Bushing: Tweco #2-#4
-
Input Current at Rated Output: 39/31/31 A, 33/27/27 A
-
Technology: CrossLinc with True Voltage Technology (TVT), Pulse MIG, Arclink Synergic Pulse Modes
-
Welding Processes: MIG, TIG, Stick, Gouging, FCAW
-
Material Compatibility: Carbon Steel, Stainless Steel, Aluminum, Metalcore Electrodes
-
Protection Rating: IP23, Desert Duty rated up to 55 C
-
Country of Origin: United States
-
Warranty Length: 3 Years
