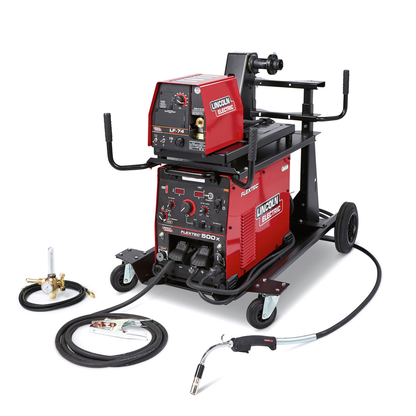

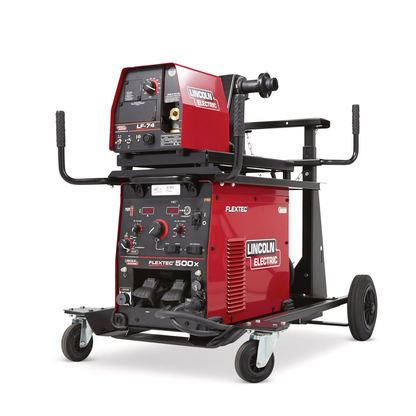

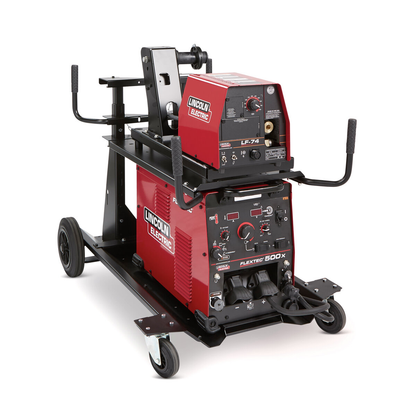

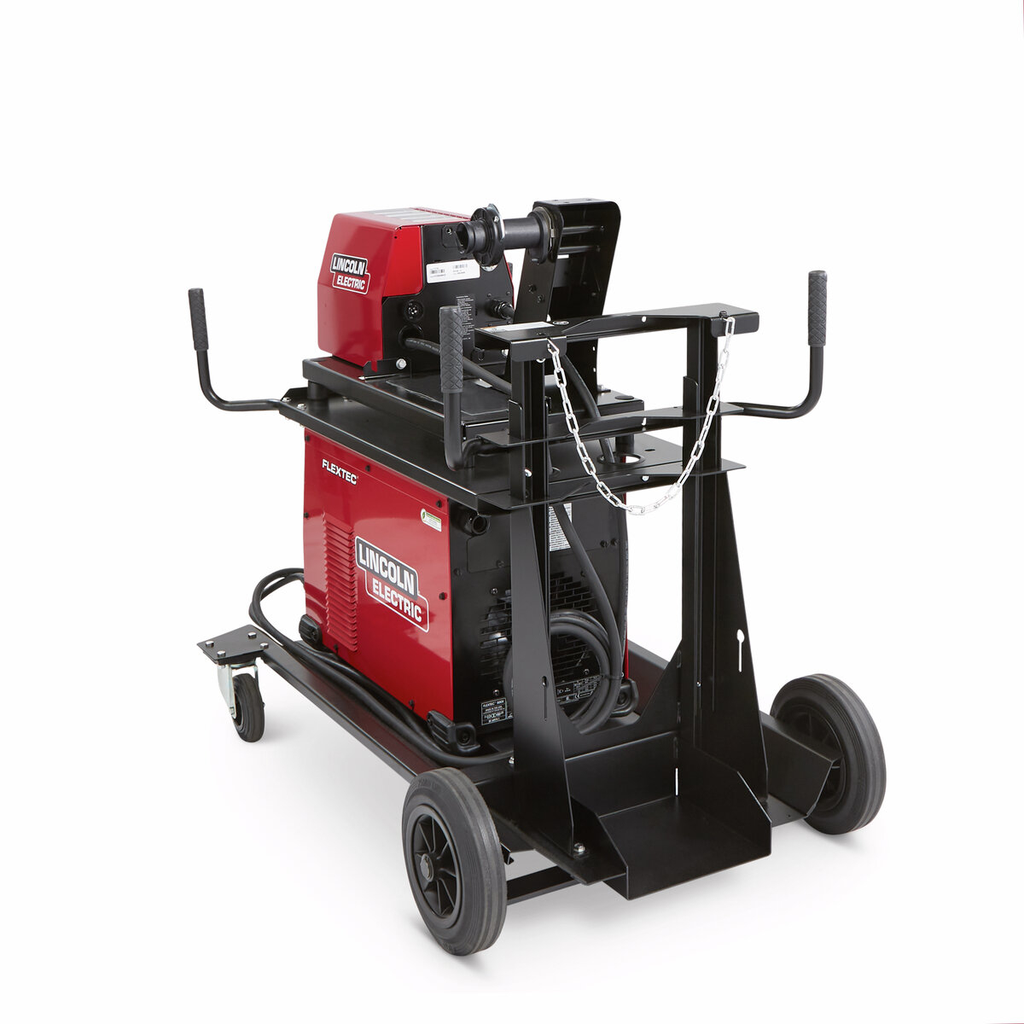

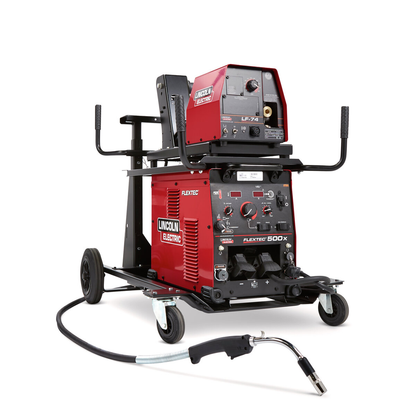

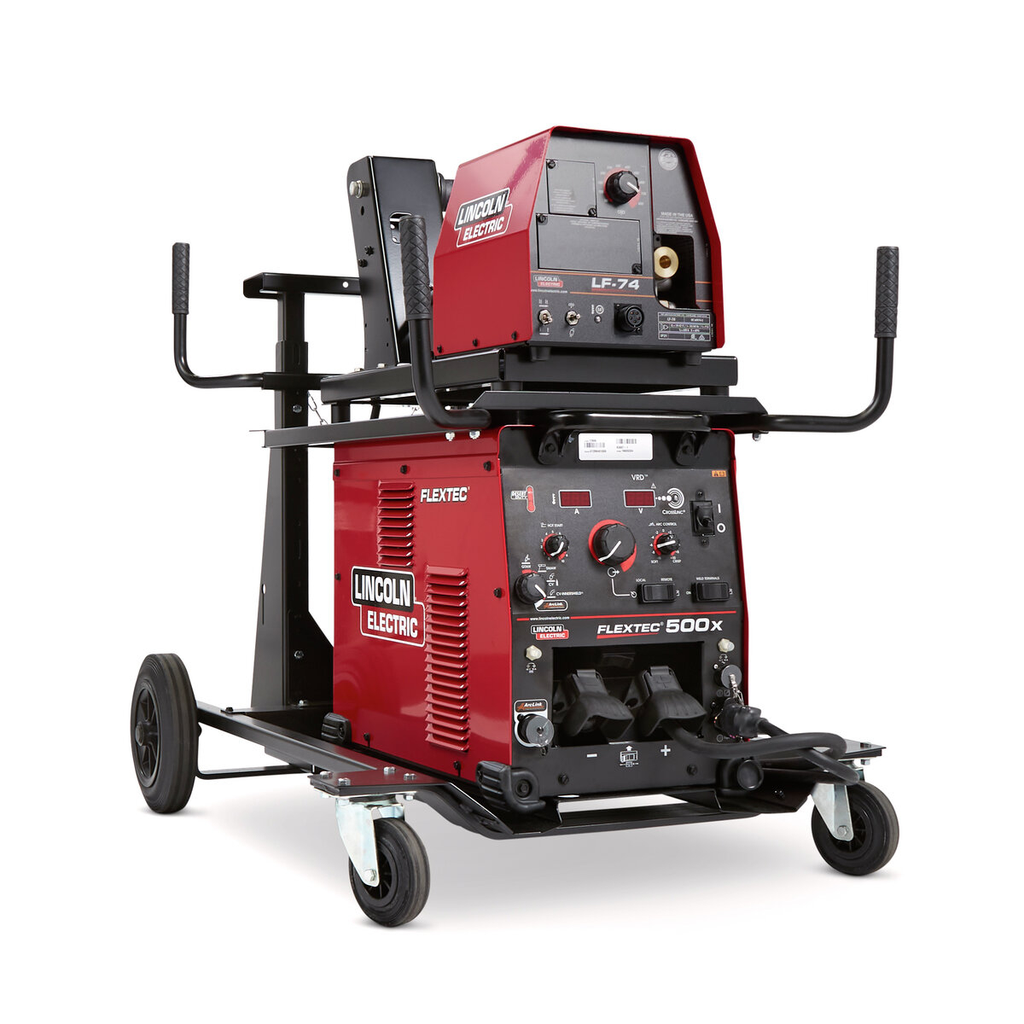

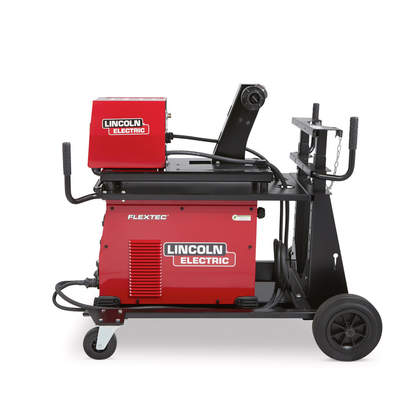

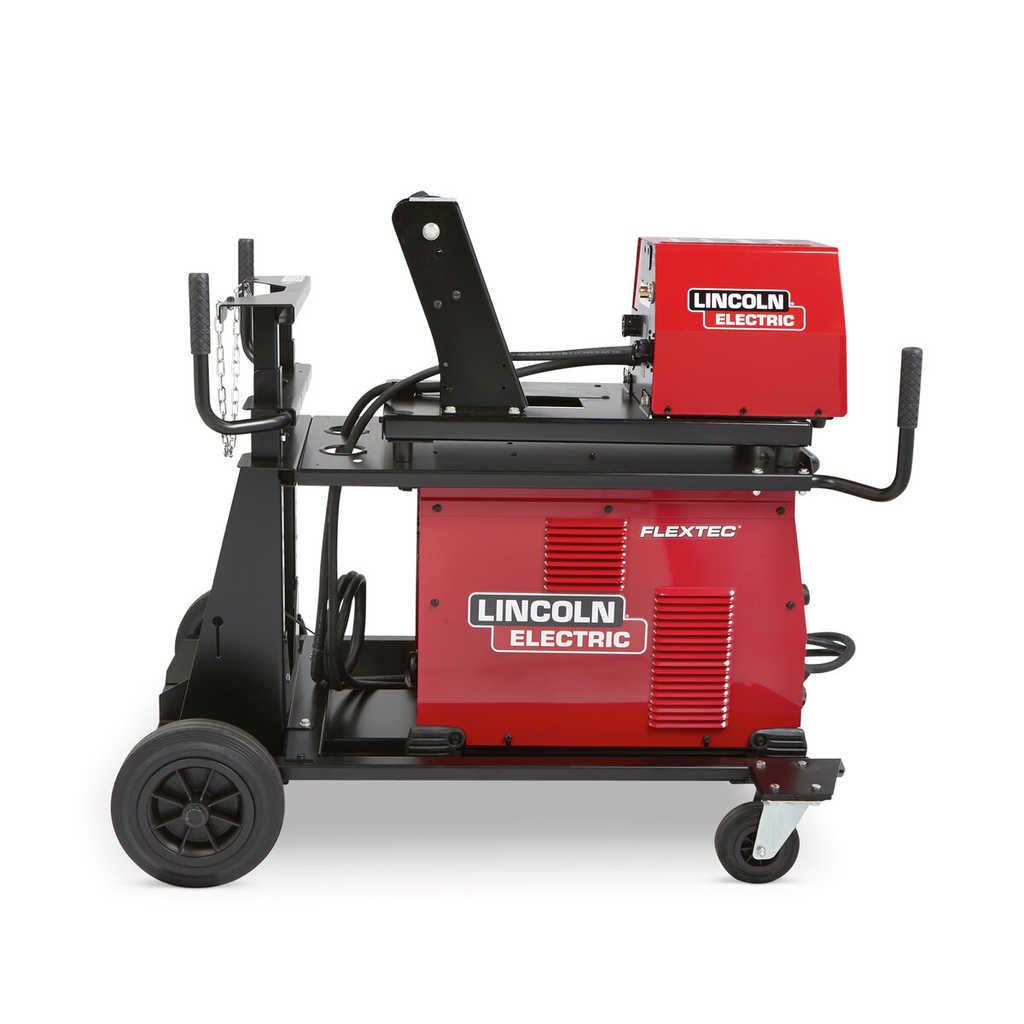

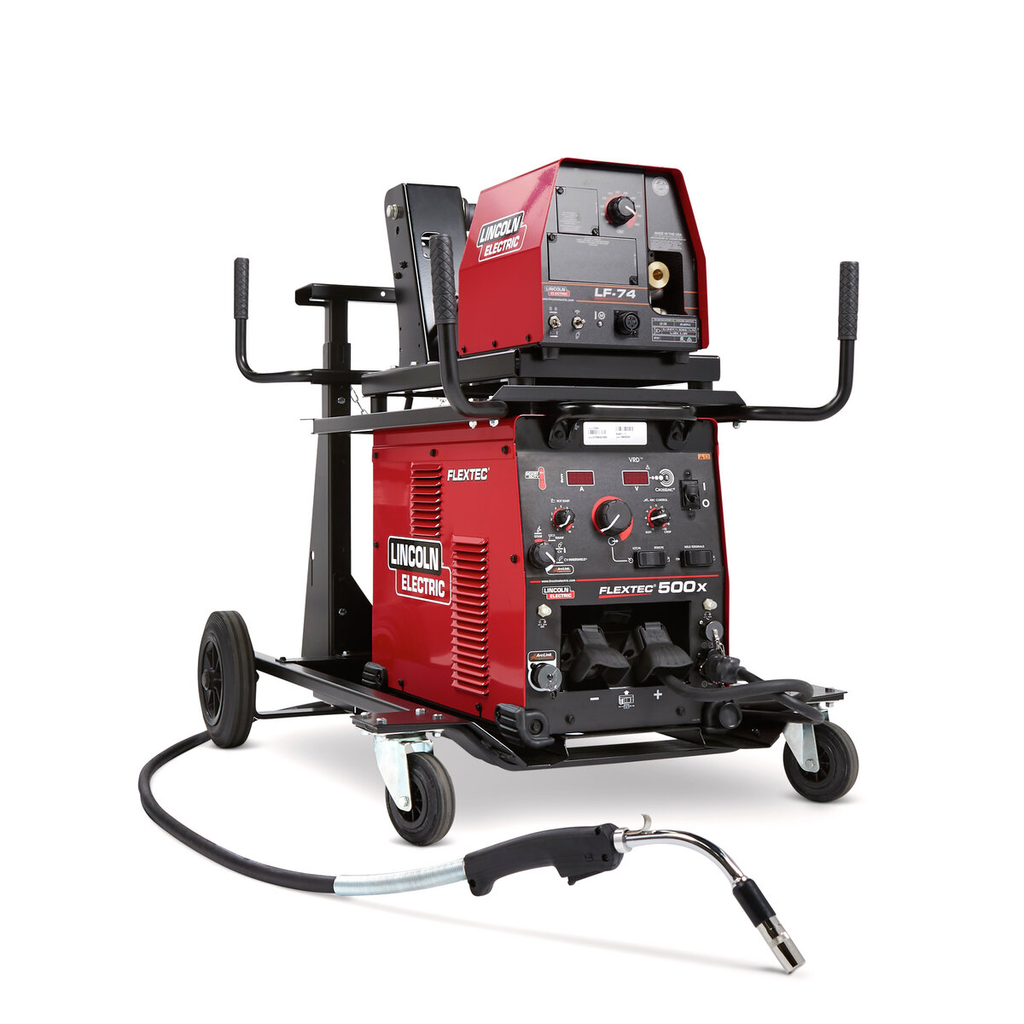

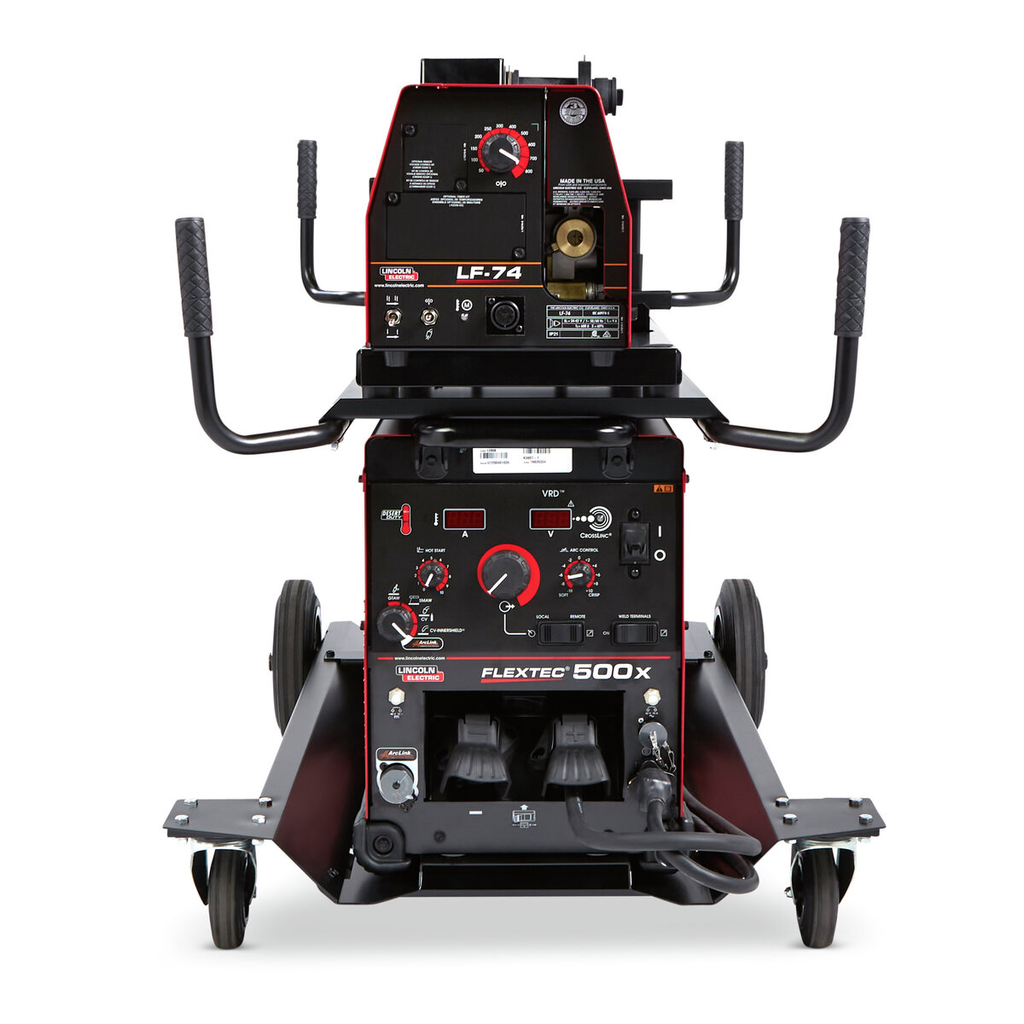

Powerful Performance From the Ground Up. Out in the shipyards, construction sites and fabrication shops, it pays to keep it simple. The Flextec 500X multi-process welder is easy to set up and operate, yet rugged enough to stand up to heavy-duty indoor and outdoor applications. Basic pulse MIG capability is standard on the Flextec 500X , including weld modes for carbon steel, stainless steel, aluminum and metalcore electrodes. The Flextec 500X welder is also equipped with CrossLinc® technology giving you the flexibility to control the machine from hundreds of feet away without a control cable. Ready-Pak ships fully assembled and comes with the LF-74 wire feeder that features Lincoln Electric's patented 4-drive roll MAXTRAC® heavy-duty cast aluminum wire drive system that provides reliable feeding and durability. This bundle also includes the Magnum PRO Curve 400 welding gun, inverter and feeder cart, flowmeter regulator and hose, and the necessary cables and connectors.
Features
- Compatible with all 42VAC wire feeders for MIG and Flux-Cored welding
- (1) K3607-1 Flextec 500X Welder, (1) K2426-5 LF-74 Wire Feeder, (1) KP1505-1 4 Roll Drive and Wire Guide Kit 0.035-0.045 in, (1) K2952-2-10-45 Magnum PRO Curve 400 Gun and Cable Ready-Pak, (1) 3100211 Harris Flowmeter Regulator and Hose, (1) K1797-10 Control Cable Extension - Male 14-Pin to Female 14-Pin - 10 ft, (1) K1842-10 3/0 Welding Cable 10 ft, (1) K2149-1 Work Lead Package 15 ft, (1) K3056-2 Flextec 500 Locking Foot Kit, (1) K3059-4 Inverter and Wire Feeder Cart
- Durable trayed and potted PC boards for electronics environmental protection
- Flextec power sources support multiple weld processes: MIG, TIG, Stick, Gouging and FCAW. Flextec welders can be used with nearly all Lincoln Electric wire feeders due to available feeder communication connections.
- IP 23 rating means the Flextec 500X welder will excel in outdoor environments, such as construction sites and shipyards.
- CrossLinc Technology communicates through a standard weld cable to enable voltage or current control at the arc without a control cable.
- Ready-Pak ships fully assembled and comes with the LF-74 wire feeder that features Lincoln Electric's patented 4-drive roll MAXTRAC® heavy-duty cast aluminum wire drive system that provides reliable feeding and durability.
- Arclink® enabled power source provides synergic pulse modes.
-
Output Range: 5-500 A
-
Rated Output Current/Voltage/Duty Cycle: 500 A/40 V/60%, 450 A/38 V/100%
-
Input Power: 380/460/575 V, 3 Phase, 50/60 Hz
-
Input Current @ Rated Output: 39/31/31 A, 33/27/27 A
-
Length: 27.5 in
-
Width: 14 in
-
Height: 18.8 in
-
Weight: 136 lb
-
IP Rating: IP23
-
Material: Cast Aluminum (wire drive system)
-
Operating Temperature: Up to 55 C
-
Process Compatibility: MIG, TIG, Stick, Gouging, FCAW
-
Wire Feeder Compatibility: All 42 VAC wire feeders
-
Wire Size Compatibility: 0.035-0.045 in (steel, stainless, metalcore), 3/64-1/16 in (aluminum)
-
Country of Origin: United States
