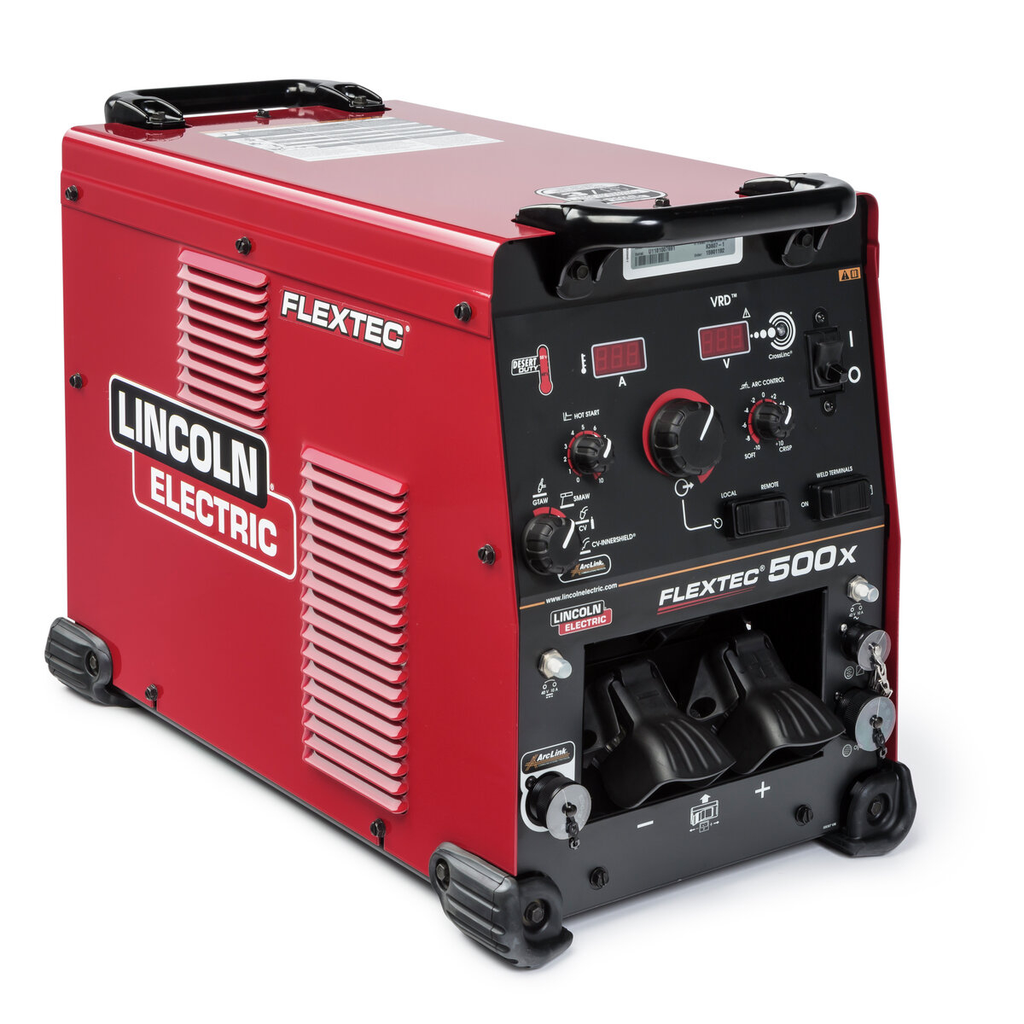

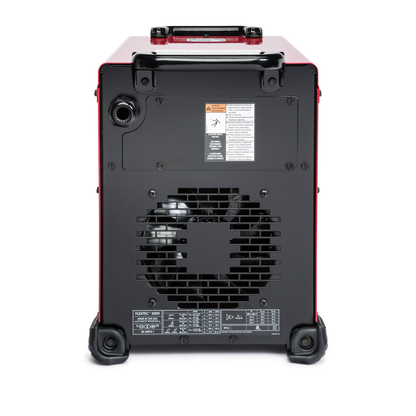

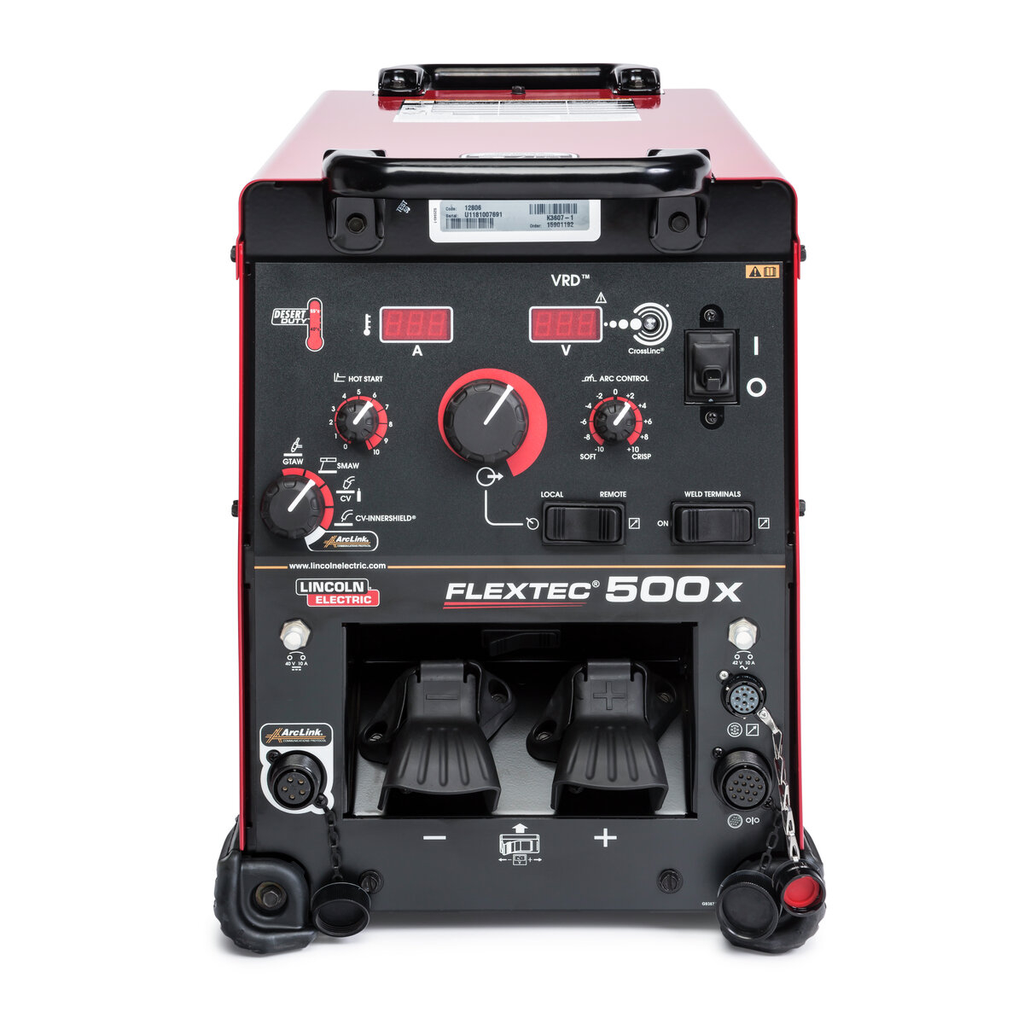

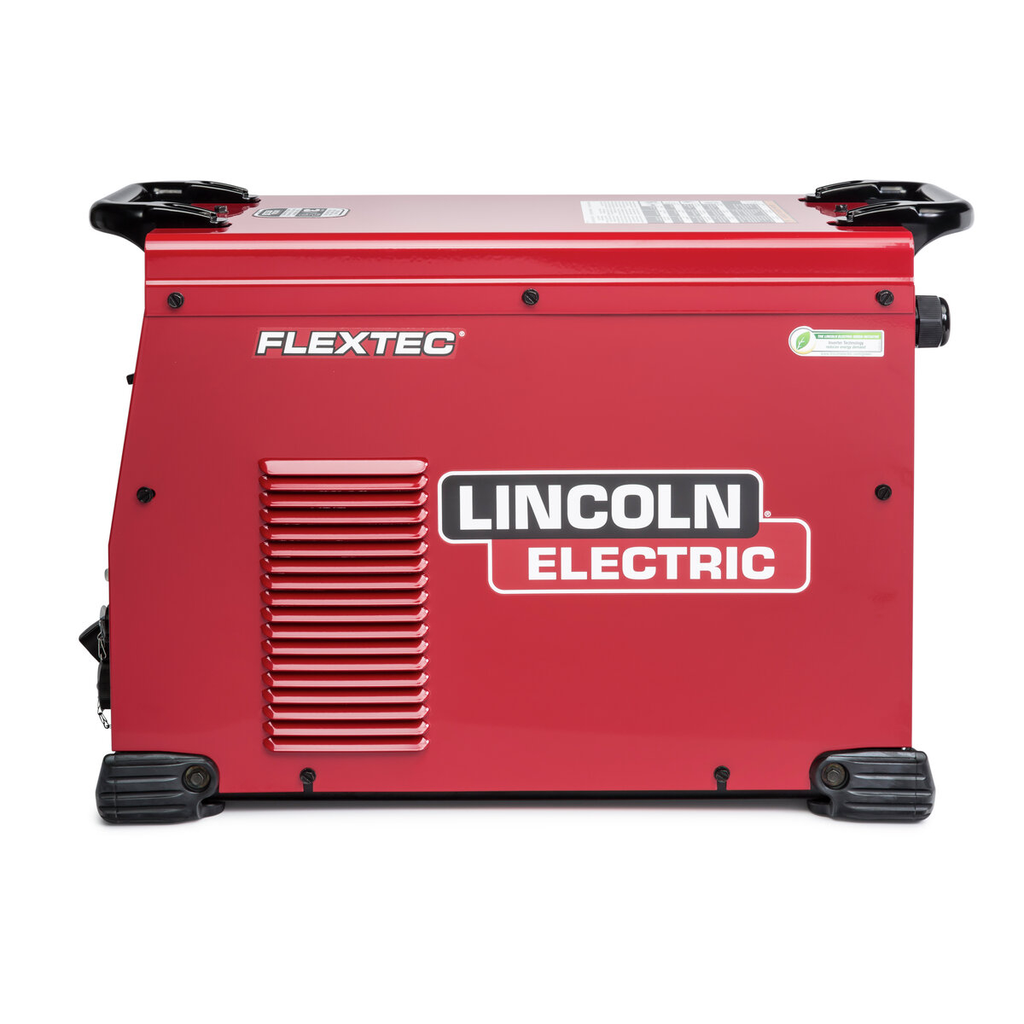

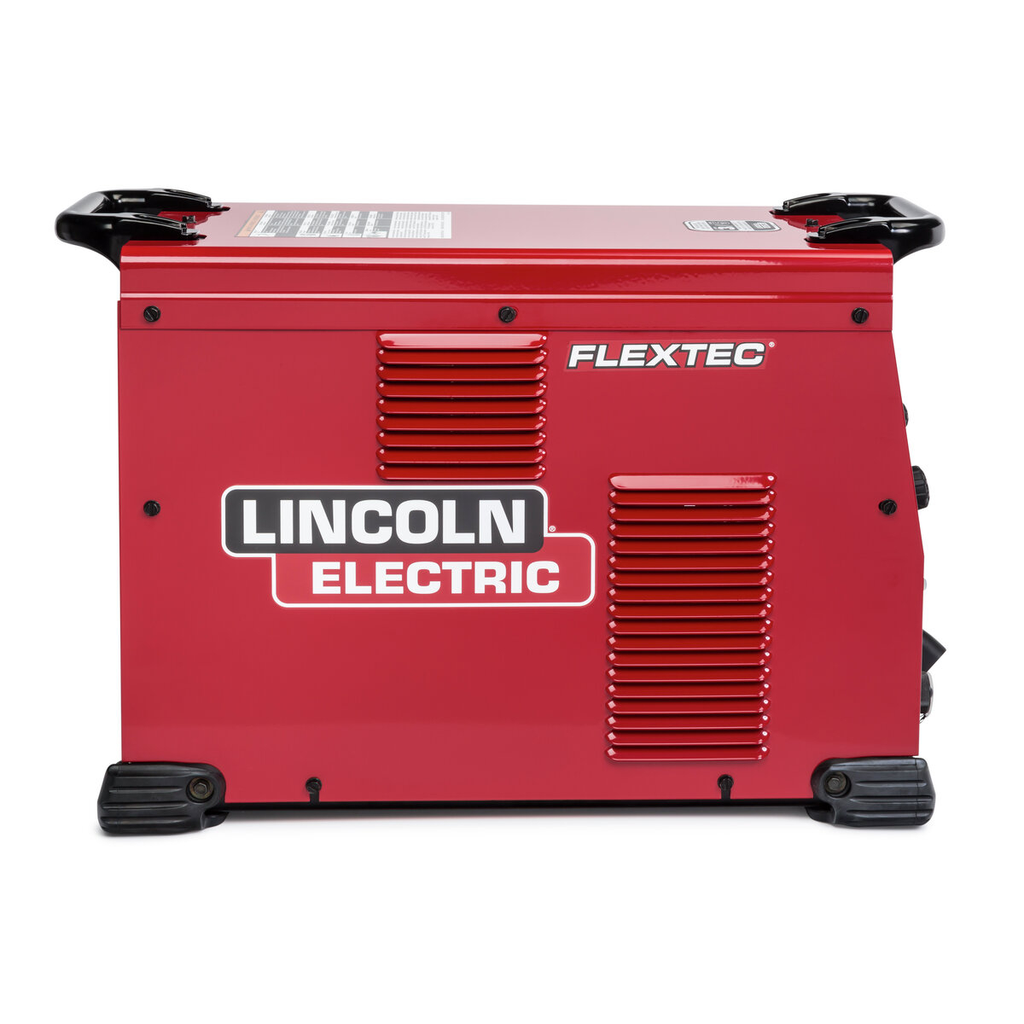

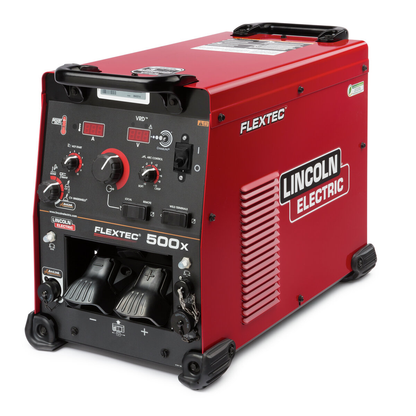

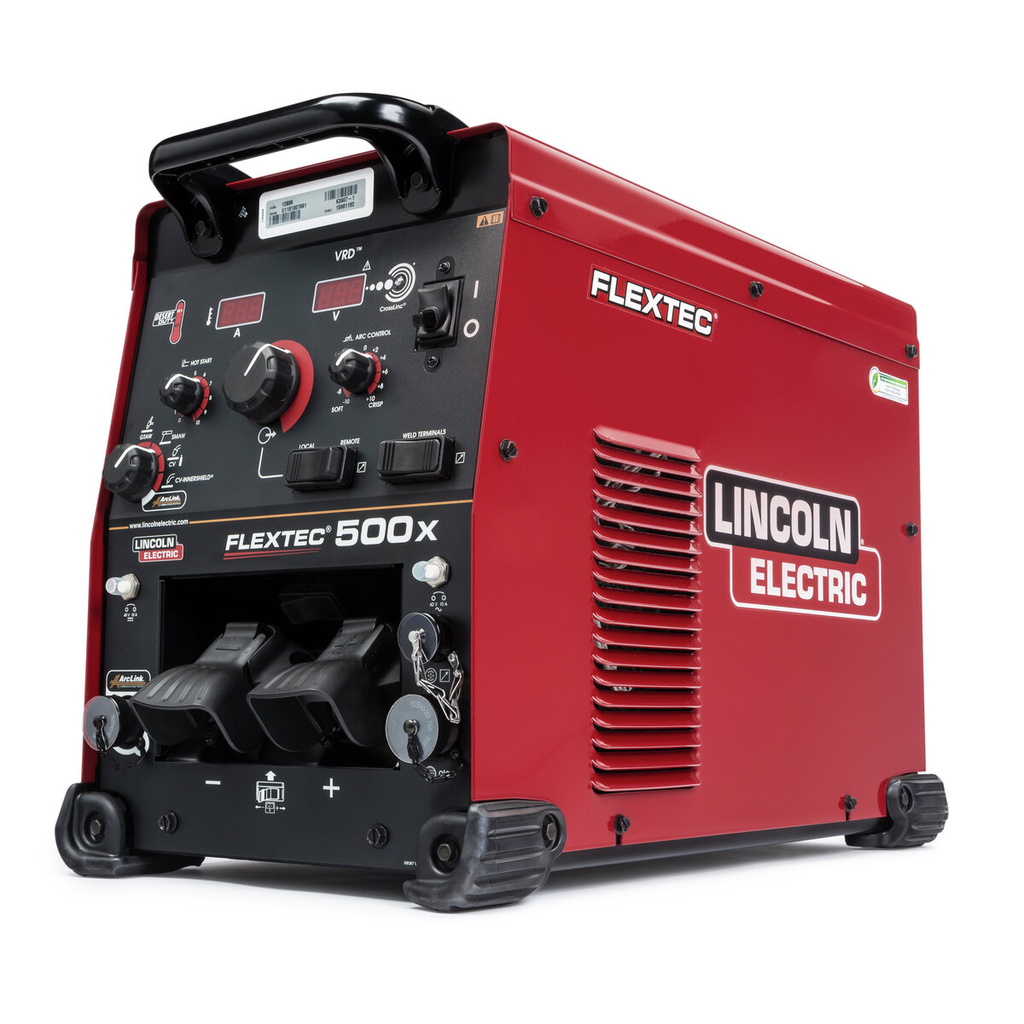

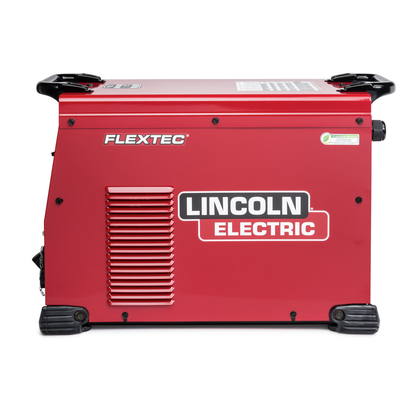

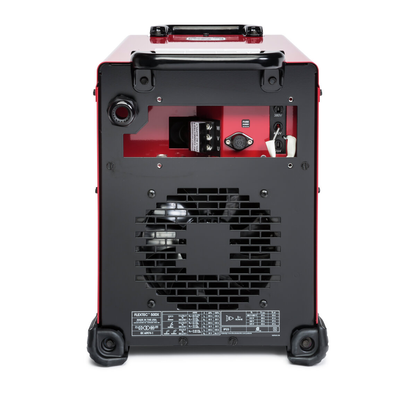

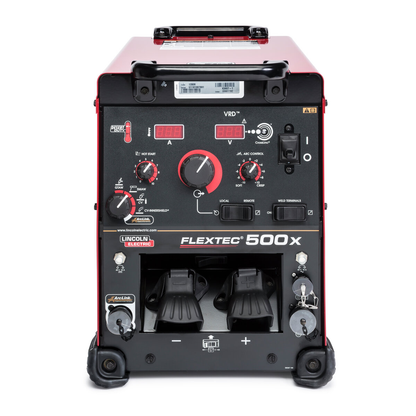

Lincoln Electric, K3607-1, Multi-Process Welder, 500A; Inverter/Chopper; 3Ph; 5-500A

Powerful Performance From the Ground Up. Out in the shipyards, construction sites and fabrication shops, it pays to keep it simple. The Flextec 500X multi-process welder is easy to set up and operate, yet rugged enough to stand up to heavy-duty indoor and outdoor applications. Basic pulse MIG capability is standard on the Flextec 500X , including weld modes for carbon steel, stainless steel, aluminum and metalcore electrodes. The Flextec 500X welder is also equipped with CrossLinc® technology giving you the flexibility to control the machine from hundreds of feet away without a control cable.

Features

• Durable trayed and potted PC boards for electronics environmental protection
• Compatible with all 42VAC wire feeders for MIG and Flux-Cored welding
• Arclink® enabled power source provides synergic pulse modes.
• Flextec power sources support multiple weld processes: MIG, TIG, Stick, Gouging and FCAW. Flextec welders can be used with nearly all Lincoln Electric wire feeders due to available feeder communication connections.
• CrossLinc Technology communicates through a standard weld cable to enable voltage or current control at the arc without a control cable.
• IP 23 rating means the Flextec 500X welder will excel in outdoor environments, such as construction sites and shipyards.

What's Included?

• (1) Flextec 500X Power Source

• Output Current: 500A @ 40V, 60%; 450A @ 38V, 100%
• Output Range: 5-500A
• Processes: Stick (SMAW), Gouging (CAC-A), Flux-Cored (FCAW), TIG (GTAW), MIG (GMAW), Pulsed MIG (GMAW-P), Flux-Cored Self-Shielded (FCAW-S), Flux-Cored Gas-Shielded (FCAW-G)
• Input Voltage: 380/460/575V, 3 Phase, 50/60 Hz
• Welding Technology: Inverter/Chopper
• Output Mode: CC; CV; CC/CV
• Voltage Control Technology: CrossLinc technology for arc voltage/current control without control cable
• Dimensions: 18.8 x 14 x 27.5 in (477 x 356 x 699 mm)
• Weight: 136 lb (62 kg)
• Enclosure Rating: IP 23
• Temperature Rating: 55 C
• Material Protection: Durable trayed and potted PC boards
• Arclink Connector: Yes
• Work Lead Connector Type: Lug
• Output Polarity: DC
• Input Phase: 3 Phase
• Tap or Continuous Control: Continuous
• Country of Origin: United States
