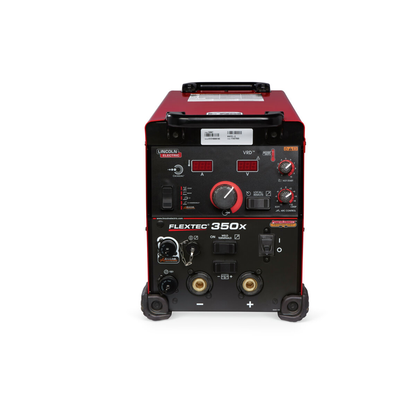

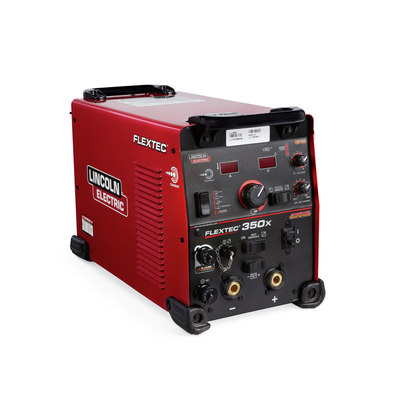

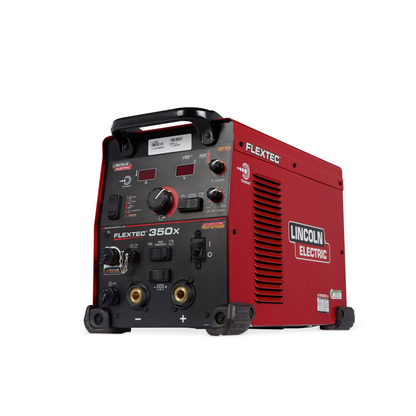

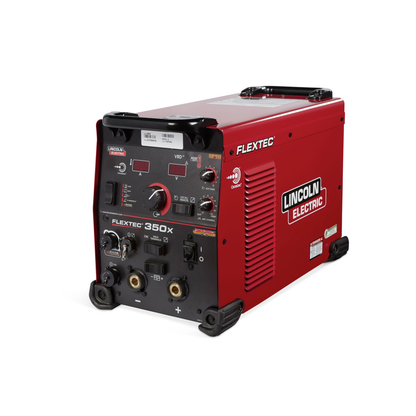

Lincoln Electric, K3443-2, Multi-Process Welder, PowerConnect, MIG; TIG; Stick, 200-575 VAC

COMPACT, RUGGED AND COMPLETE. Equipped with CrossLinc technology, the Flextec 350X family of machines can be controlled from hundreds of feet away without expensive and inconvenient control cables. Desert Duty® and IP23 rated, these welders can withstand harsh outdoor conditions and outperform other welders in their class. The Flextec PowerConnect model adds the ability to weld using any input voltage between 200 and 600 volts, single or 3-phase. It is also compatible with Arclink® digital feeders to provide synergic modes, memories, and basic pulsed MIG for seamless connectivity and improved weld performance.

Features

• Built in pulse programs for carbon steel stainless steel, metal core and aluminum
• Multi-process welding includes MIG, TIG, stick, flux cored and carbon arc gouging processes
• PowerConnect allows an automatic connection to any incoming voltage 200-575VAC, single or three-phase, 50 or 60Hz
• Supports a variety of wire feeders including CrossLinc, 14-pin analog, and 5-pin ArcLink digital wire feeders
• Based on the same proven platform as the previous Flextec® machines and lab and field tested to perform in extreme environments

• Input Voltage: 200-575 VAC, single or three-phase, 50/60 Hz
• Output Current Range: 5-425 A
• Duty Cycle: 350 A @ 60%
• Dimensions: 24 x 13 x 17 in (L x W x H)
• Weight: 95 lbs (43.1 kg)
• Wire Diameter Range - Solid Wire: 0.023 - 1/16 in (0.58 - 1.6 mm)
• Wire Diameter Range - Cored Wire: 0.030 - 5/64 in (0.76 - 1.98 mm)
• Wire Feed Speed Range: 50-800 ipm (1.3 - 20.3 m/min)
• Processes: MIG, TIG, Stick, Flux Cored, Carbon Arc Gouging
• Welding Modes: Synergic, Memories, Basic Pulsed MIG
• Wire Feeders Supported: CrossLinc, 14-pin analog, 5-pin ArcLink digital
• Compliance: Desert Duty ; IP23 Rated
• Country of Origin: United States
