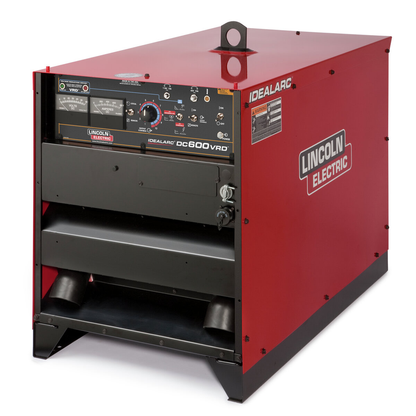

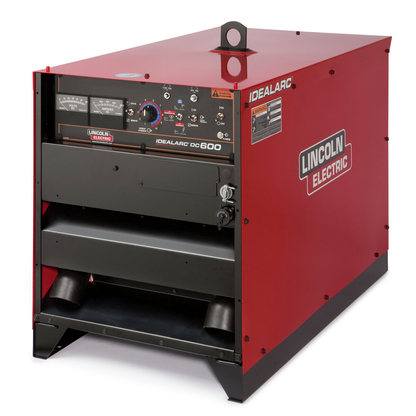

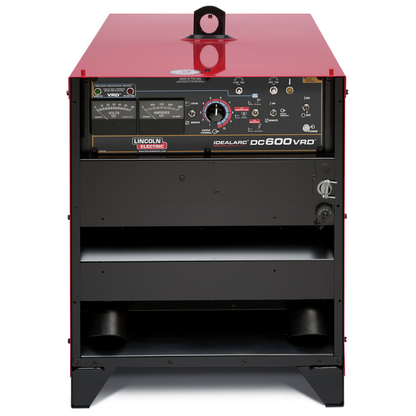

Lincoln Electric, K1288-28, Multi-Process Welder, 600A; 3Ph; VRDTM; Stick; MIG; TIG

Industrial DC Multi-Process Welders - Rugged construction, simple controls and a 100% duty cycle output rating make these machines a sound investment for heavy duty shop applications. Add the outstanding traditional SCR rectifier arc action delivering high quality, attractive welds and your operators will agree - it’s hard to go wrong with an Idealarc® 600. The VRD™ (Voltage Reduction Device™) provides an additional measure of safety, especially when working in an environment with a higher risk of electrical shock such as wet areas and hot, humid, sweaty conditions. The VRD™ reduces the OCV (open circuit voltage) at the welding output terminals while not welding to less than 2 volts DC. Indicator lights will also signal when output voltage during welding is above or below 30 volts DC. Use of VRD™ does not degrade the DC600 machine rating or the ability to drive current through cables up to 200 ft. (61 m). No new welding techniques are required. The internal system does not require separate modules to operate.

What's Included?

• (1) Idealarc® DC600 with VRD™ Multi-Process Welder

Features

• Full range output voltage control for easy operation and precise control.
• Mode switch for selecting desired output characteristics.
• Flat-top case with a small footprint can be placed under a workbench or stacked up to 3 high on top of each other.
• Windings and rectifiers are protected against moisture and corrosive environments.
• 115V, 15 amps, duplex auxiliary power receptacle – (60 Hz models) makes it easy to power lights, grinders and other shop tools at your work station.
• Seven-year warranty on power rectifier.
• VRD™ (Voltage Reduction Device™) reduces OCV (open circuit voltage) when not welding for added safety.
• Standard analog ammeter and voltmeter.

• Rated Output: 600A/44V/100%; 680A/44V/60%
• Max Rating: 780A
• Output Mode: CC; CV; CC/CV
• Input Voltage: 230/460/575V, 3-Phase, 60Hz
• Input Current: 67-62A
• Voltage Reduction Device (VRD): Yes
• Dimensions: 30.75 x 22.25 x 39 in
• Weight: 522 lb
• Wire Feeder Supply Voltage: 115VAC; 42VAC
• Material Protection: Protected against moisture and corrosive environments
• Machines Processes: Stick (SMAW); Gouging (CAC-A); Flux-Cored (FCAW); TIG (GTAW); MIG (GMAW); Flux-Cored Self-Shielded (FCAW-S); Flux-Cored Gas-Shielded (FCAW-G)
• Input Phase: 3
• Input Power: 230/460/575V, 3-Phase, 60Hz
• Output Polarity: DC
• Input Frequency: 60 Hz
• Welding Technology: Conventional
• Country of Origin: United States
• Amphenol Pins (Connector Type): 14
• Work Lead Connector Type: Lug
