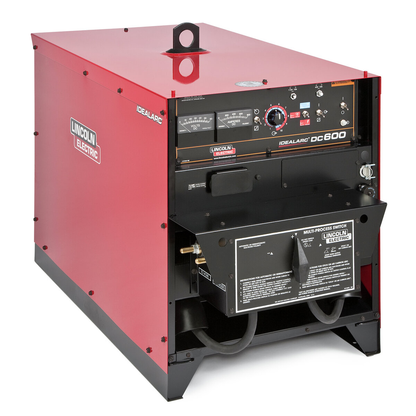

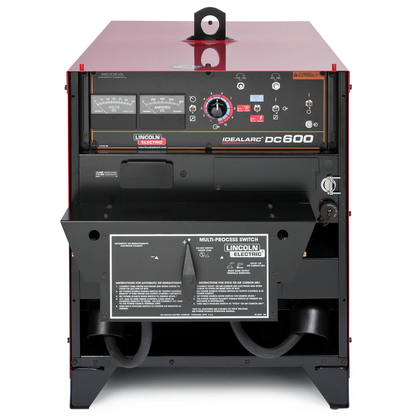

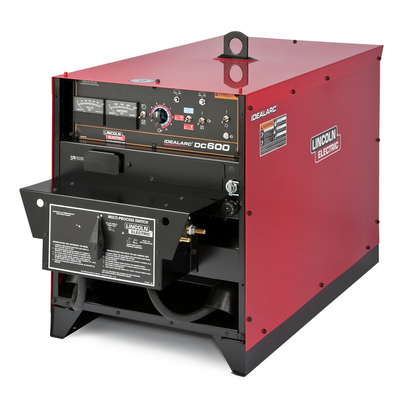

Lincoln Electric, K1288-18, Multi-Process Welder, 600A; 230/460V; Analog, DC, Continuous

Industrial DC Multi-Process Welders - Rugged construction, simple controls and a 100% duty cycle output rating make these machines a sound investment for heavy duty shop applications. Add the outstanding traditional SCR rectifier arc action delivering high quality, attractive welds and your operators will agree - it’s hard to go wrong with an Idealarc® 600.

Features

• Full range output voltage control for easy operation and precise control.
• Seven-year warranty on power rectifier.
• Mode switch for selecting desired output characteristics.
• Windings and rectifiers are protected against moisture and corrosive environments.
• Standard analog ammeter and voltmeter.
• Flat-top case with a small footprint can be placed under a workbench or stacked up to 3 high on top of each other.
• 115V, 15 amps, duplex auxiliary power receptacle – (60 Hz models) makes it easy to power lights, grinders and other shop tools at your work station.
• Multi-Process Switch for easy change of weld mode.

What's Included?

• (1) Idealarc® DC600 Multi-Process Welder with Multi-Process Switch

• Output Current: 600A
• Duty Cycle: 100%
• Input Voltage: 220/230/240/460V, 3-phase, 60 Hz
• Input Current: 108/54A
• Input Power: 230/460/3/60
• Input Hertz: 60 Hz
• Input Phase: 3-phase
• Rated Output: 600A/44V/100%; 680A/44V/60%
• Output Range: CV: 70A/13V - 780A/44V; CC: 90A/24V - 780A/44V
• Output Mode: CC; CV; CC/CV
• Output Polarity: DC
• Wire Feeder Supply Voltage: 115VAC; 42VAC
• Height: 30.75 in
• Width: 22.25 in
• Length: 39 in
• Weight: 552 lb
• Amphenol Pins (Connector Type): 14
• Work Lead Connector Type: Lug
• Input Voltage Type: Multiple
• Machines Communication Technology: Analog
• Machines Processes: Stick (SMAW); Gouging (CAC-A); Flux-Cored (FCAW); MIG (GMAW); Flux-Cored Self-Shielded (FCAW-S); Flux-Cored Gas-Shielded (FCAW-G); Submerged Arc (SAW)
• Welding Technology: Conventional
• Tap or Continuous Control: Continuous
• Case Design: Flat-top, stackable up to 3 high
• Protection: Windings and rectifiers protected against moisture and corrosive environments
• Country of Origin: United States
