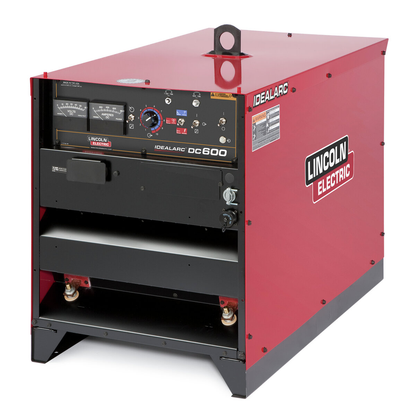

Lincoln Electric, K1288-17, Multi-Process Welder, 600A; 220/230/240, 460V; Continuous Control; Analog

Name: Lincoln Electric, K1288-17, Multi-Process Welder, 600A; 220/230/240, 460V; Continuous Control; Analog
Brand: Lincoln Electric
SKU: LNK1288-17
Availability: InStock

Product variants

Looking for a Quote?

Call our Sales Department! 773-384-7622

- or -

Email Us! - Sales@wiscoonline.com

Or Fill Out the Form Below.

Contact Us

Enhance Your Gear With Accessories

Industrial DC Multi-Process Welders - Rugged construction, simple controls and a 100% duty cycle output rating make these machines a sound investment for heavy duty shop applications. Add the outstanding traditional SCR rectifier arc action delivering high quality, attractive welds and your operators will agree - it’s hard to go wrong with an Idealarc® 600.

Features

Mode switch for selecting desired output characteristics.
Standard analog ammeter and voltmeter.
115V, 15 amps, duplex auxiliary power receptacle – (60 Hz models) makes it easy to power lights, grinders and other shop tools at your work station.
Flat-top case with a small footprint can be placed under a workbench or stacked up to 3 high on top of each other.
Full range output voltage control for easy operation and precise control.
Windings and rectifiers are protected against moisture and corrosive environments.
Seven-year warranty on power rectifier.

What's Included?

(1) Idealarc DC600 Multi-Process Welder

Amperage: 600A
Voltage: 44V
Rated Output: 600A/44V/100%; 680A/44V/60%
Output Range: CV: 70A/13V - 780A/44V; CC: 90A/24V - 780A/44V
Input Voltage: 230/460V, 3 Phase, 60 Hz
Input Current: 108/54A
Auxiliary Power: 115V, 15A, 60 Hz
Weight: 522 lb
Dimensions (HxWxD): 30.75 x 22.25 x 39 in
Width: 22.25 in
Height: 30.75 in
Length: 39 in
Tap or Continuous Control: Continuous
IEC Amperage Class: 600
Input Phase: 3
Input Hertz: 60 Hz
Output Polarity: DC
Welding Technology: Conventional
Output Mode: CC; CV; CC/CV
Work Lead Connector Type: Lug
Machines Communication Technology: analog
Machines Processes: Stick (SMAW); Gouging (CAC-A); Flux-Cored (FCAW); TIG (GTAW); Flux-Cored Self-Shielded (FCAW-S); Flux-Cored Gas-Shielded (FCAW-G); Submerged Arc (SAW)
Country of Origin: United States
Warranty Length: 3 Years
Protection: Windings and rectifiers protected against moisture and corrosive environments
Case Type: Flat-top case

Downloads

Specsheet

CAD File
