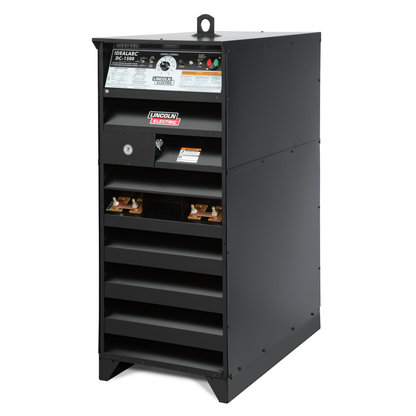

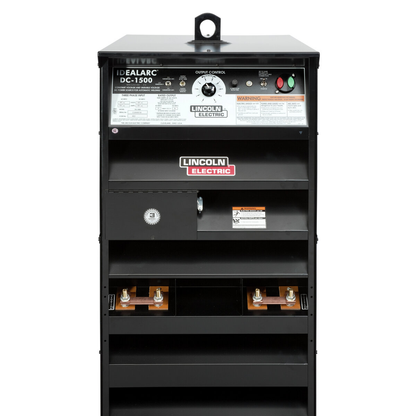

Lincoln Electric, K1275, Subarc Welder, 1500A DC; 3Ph; CC/CV; 460V; 20-60V

The DC-1500 is a multiprocess DC arc welding power source for automatic welding applications. It produces outstanding arc characteristics on both constant voltage and constant current processes. This provides great welding versatility in a single power source. The DC-1500 is designed for submerged arc welding, and FCAW processes within the capacity of the machine. It produces outstanding welding performance with a single range full output control potentiometer. The precise output of the DC-1500 enhances productivity and quality control when used with Lincoln NA-3 and NA-5 automatic wire feeders, and the LT-7 tractor. Solid state circuitry provides extra ling life for repetitive welding applications. Full range output voltage control for easy operation and precise output control. Mode switch used to select the desired output characteristics for the process being used. Line voltage compensation for maintaining weld consistency, even with line voltage changes of ± 10%. Fan cooled with electronic and thermostatic protection from current overload and excessive temperatures. Function lights built into the printed circuit boards speed diagnostics. Windings and rectifiers protected against moisture and corrosive environments. Eight amp fuse protected 115V wire feeder auxiliary power with 1000 volt-amp capacity. Three-year warranty on parts and labor. Seven-year warranty on the power rectifier. Manufactured under a quality system certified to ISO 9001 requirements and ISO 14001 environmental standards.

Features

• Windings and rectifiers protected against moisture and corrosive environments.
• Line voltage compensation for maintaining weld consistency, even with line voltage changes of ± 10%.
• Fan cooled with electronic and thermostatic protection from current overload and excessive temperatures.
• Three-year warranty on parts and labor; seven-year warranty on the power rectifier.

What's Included?

• DC-1500 power source

• Rated Output: 1500A/44V/100%
• Output Range: 200-1500A DC, 20-60V
• Input Voltage: 460V, 3Ph, 60Hz
• Input Current: 184A
• Input Power: 460V, 3Ph, 60Hz
• Welding Type: Submerged Arc, FCAW
• Welding Technology: Conventional
• Output Control: Full range voltage control
• Cooling: Fan cooled with electronic and thermostatic protection
• Fuse Rating: 8A
• Auxiliary Power: 115V, 1000 VA
• Length: 38 in (965 mm)
• Height: 57.2 in (1453 mm)
• Width: 22.3 in (566 mm)
• Weight: 1420 lb (644 kg)
• Work Lead Connector Type: Lug
• Work Clamp Included: No
• Amphenol Pins (Type of Connector): Terminal Strip
• Arclink Connector: No
• IEC Amperage Class: 1500
• Mode Icon: CC/CV
• Machines Processes: Gouging (CAC-A), Submerged Arc (SAW)
• Machines Communication Technology: Analog
• Polarity: DC
• Tap or Continuous Control: Continuous
• Wire Feeder Supply Voltage: 115 VAC
• Input Voltage Type: Multiple
• Line Voltage Compensation: 10%
• Certification: ISO 9001, ISO 14001
• Country of Origin: United States
