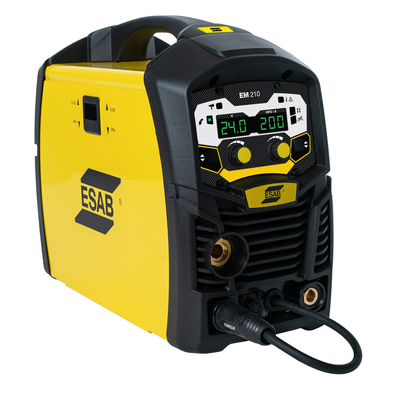

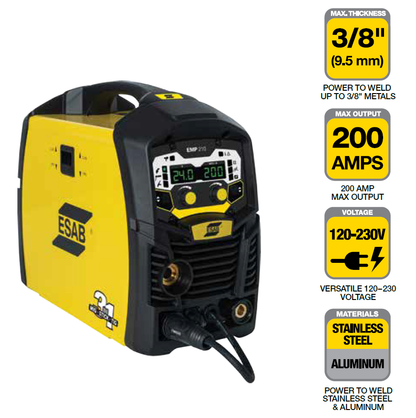

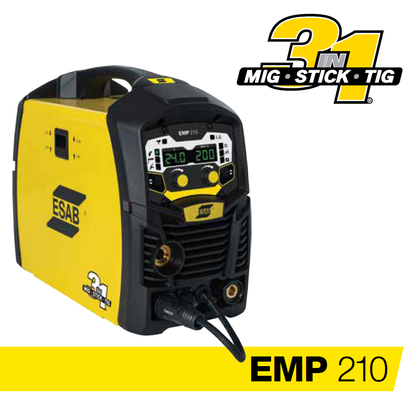

ESAB, 0700503200, Multi-Process Welder, 10-200 A, 115/230V, Includes Tweco 180A MIG Torch, Max Plate Thickness 3/8 in.

ESAB® EMP 210 inverter-based welding system is ready to tackle steel, stainless and aluminum projects. Featuring professional-grade arc characteristics and full-featured digital controls which enable fine-tuning of the arc performance to deliver superior welds. Weighs just 29 Ibs. and offer dual-voltage 120/230V flexibility. Take this welder wherever work takes you – around the shop, in the field or at home in your garage. Spool gun-ready for MIG aluminum with optional spool gun and optional remote foot control for Lift TIG Welding

Applications

• Civil Construction
• Light Fabrication
• Automotive
• Automotive Bodies
• HVAC
• Repair and Maintenance
• Agricultural Equipment

Features

• Digital controls with large easy-to-read LED display enable fast, easy and more accurate operation
• improve welding results with advanced functions typically found on industrial machines: MIG wire run- in, burn-back, variable inductance, 2T/4T trigger control, Lift TIG arc starts, gas pre and post-flow, Stick hot start and arc force control
• Portability and flexibility to weld in a variety of locations weighs 29 Ibs, connect to 120/230V primary power and are compatible with 10 kVa generators
• Multi-Process MIG/Flux Cored/Stick/Lift TIG welding system with a 10 – 200A output. Stable Lift TIG arc at low amperage for total control; power to run Stick electrodes up to 5/32-inch

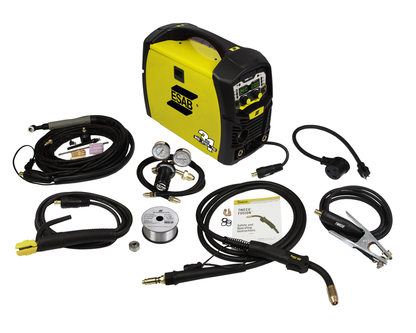

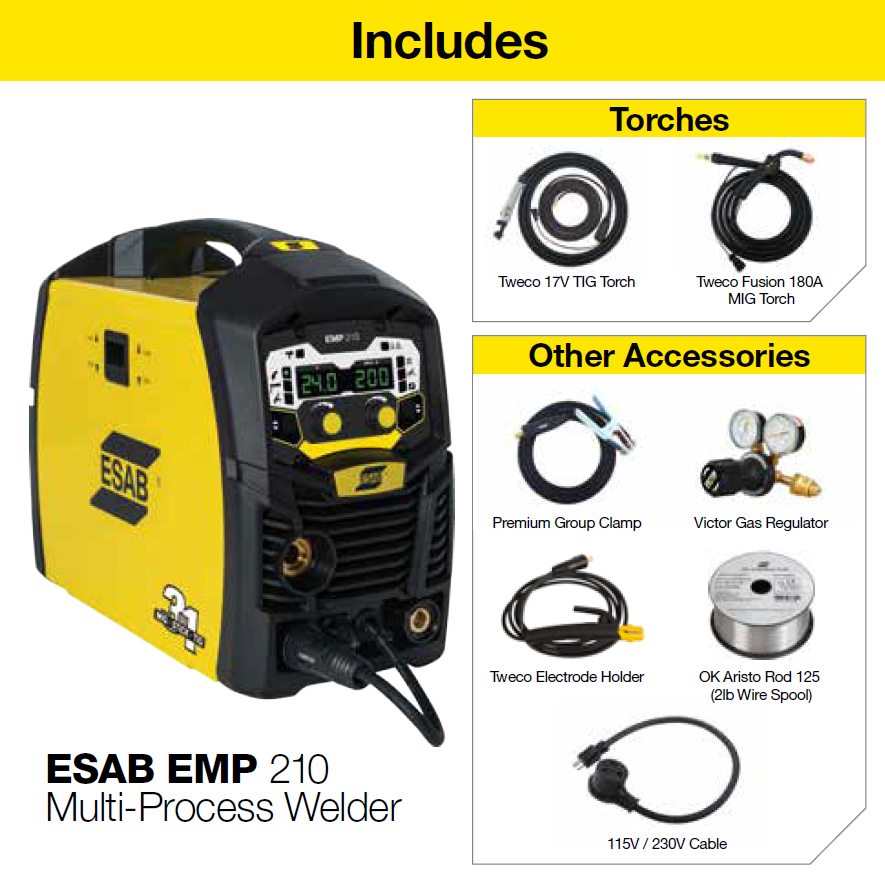

Accessories

• Tweco Fusion 180 MIG gun with Velocity consumables, 10 ft (3 m) 1017-1338
• TIG Accessory Kit .040" & 1/16" (20-115A) 1442-0065
• TIG Torch 17 V and Accessories,13 ft (4 m) 25/50 mm Dinse W4013802
• Basic Utility Cart 1444-0900
• Victor Argon Flow Gauge Regulator GF-250-50-580 0781-9411
• Tweco Spool Gun 160 A, 12 ft (3.6 m) (required for Al MIG welding) 1027-1397
• Power Adapter, 230 V to 120 V, 15 A (2 ft, N6-50R to N5-15P) W4014000
• Gas Hose, 12.5 ft (3.8 m), Male 5/8-18UNF W4013900
• TIG Accessory Kit 3/32" & 1/8" (100-225A) 1442-0066
• ESAB TIG Foot Control, 15 ft (4.6 m) cable and 8-pin connector W4014450

Prop 65

• Yes

• Output Current Range: 10-200 A
• Voltage: 115/230 V
• Duty Cycle: MIG- 115V: 90A @ 40%, 57A @ 100%; 230V: 200A @ 15%, 77A @ 100%; Stick- 115V: 70A @ 40%, 44A @ 100%; 230V: 170A @ 20%, 66A @ 100%; Lift TIG- 115V: 90A @ 40%, 57A @ 100%; 230V: 200A @ 15%, 77A @ 100%
• Maximum Plate Thickness: 3/8 in.
• Wire Feed Speed: 80-450 ipm
• Stick Electrode Capacity: 5/32 in.
• Wire Spool Size: 4 & 8 in.
• Wire Diameter: .024-0.035 in.
• Welding Processes: MIG (GMAW), DC TIG (GTAW), Flux Cored (FCAW), Stick (SMAW)
• Weight: 29 lbs
• Dimensions (L x W x H): 23 x 18 x 18.5 in.
• Country of Origin: China
• Protection Class: IP21S
• Certification: CSA
