ESAB, 0700301084, MIG Welder, 210A Max Output, 120/230 V Input, 3/8 in. Max Thickness, 10 ft Cable

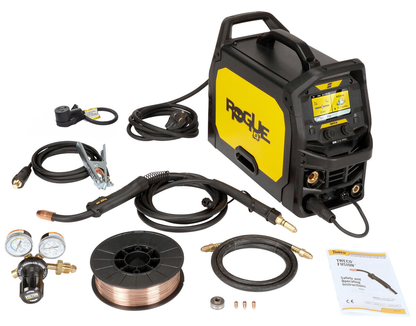

ESAB Rogue EM 210 PRO is an inverter-based MIG welding system designed to address all your welding project needs, from light fabrication to repair and maintenance. The system features industrial-grade arc performance and full featured controls that allow the welder to fine tune arc characteristics based on the material they are welding. With a weight of only 16.9 kg (37.3 lbs), dual voltage 120/230V single-phase input and compatibility with 11 kVA(10 kW) generators, this system provides maximum flexibility and portability, both in the shop and in the field.

Accessories

• Trolley 2-wheel with cylinder support 0460330882
• Tweco Spool Gun 200A, 3.6 m (12 ft) 1027-1398
• Work Clamp Leadset, 3 m (10 ft), 16 mm2, 35-50 OKC 0700006901
• Tweco Fusion 180A MIG Gun, 3 m (10 ft) 1017-1338
• Victor GF-250-50-580, Flow Gauge Regulator, for Ar/CO2 0781-9411
• Power Adapter, 230 V to 120 V, 15 A W4014000
• Tweco Spool Gun 160A, 3.6 m (12 ft) 1027-1397
• Victor GRF400-320 Flowmeter Regulator, for CO2 0781-2703
• Gas hose with 5/8 in. 18 RH fittings, 3 m (10 ft) 0700400858
• Basic Utility Cart (Single cylinder) 1444-0900

Applications

• Repair and Maintenance
• Agricultural Equipment
• Automotive
• Light Fabrication
• Automotive Bodies
• Mechanical Contractors
• Civil Construction

Features

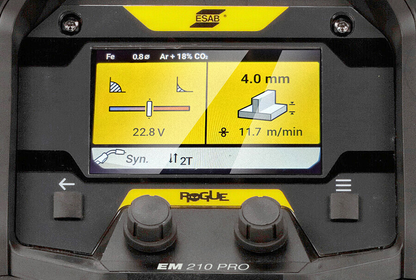

• Intuitive 5.0 in TFT screen offers clear views with direct interaction
• Energy Save Mode – after 2 minutes of inactivity the unit will enter this state to reduce power consumption
• Power Factor Correction (PFC) – ensures a stable arc, resistant to power fluctuations even while working on long extension cables up to 100 m (328 ft)
• Arc Dynamics – fine tune arc characteristics for a crisp/stiff arc for carbon steel or a smooth/soft arc for stainless steel
• Multi-language display – configure the display to 1 of 29 languages
• IP23S rated for indoor/outdoor use
• Unique rugged industrial design – supporting multiple lift points and cable management
• Jobs – 10 memory save/recall function
• Synergic Weld Programs – full range of welding parameters, 0.5 – 8.0 mm (0.020 – 0. 30 in.) with single knob control
• Spool Gun Ready – Rogue automatically configures set up when spool gun is connected (Spool gun sold separately)
• Full feature MIG/MAG machine for Synergic MIG, Manual MIG, MIG Brazing, Flux-Cored

• Output Amps (Max): 210A
• Amp Range: 10 - 210 A
• Duty Cycle: 120V: 100A@25%, 82A@60%, 63A@100% | 240V: 210A@25%, 136A@60%, 105A@100%
• Input Voltage: 120/230 V single-phase
• Frequency: 50/60 Hz
• Wire Feed Speed: 75 - 650 ipm
• Wire Size: 0.023 - 0.045 in.
• Wire Type: Mild Steel, Stainless Steel, Aluminum, Flux Cored
• Maximum Plate Thickness: 3/8 in.
• Torch Amperage: 180 A
• Wire Spool Size: 4 in | 8 in
• Spool Gun Current: 160A, 200A
• Physical Size: 24 x 18 x 18 in.
• Weight: 16.9 kg (37.3 lbs)
• Cable Length: 10 ft.
• Gas Hose Size: 5/8 in. 18 RH fittings
• Gas Hose Length: 3 m (10 ft)
• Work Clamp Leadset Length: 3 m (10 ft)
• Work Clamp Leadset Size: 16 mm2
• Phase: Single
• Process: MIG / MAG (GMAW)
• IP Rating: IP23S
• Country of Origin: China
• Screen Size: 5.0 in. TFT
