ESAB, 0700301083, MIG Welder, 190 A, 230 V, 10 ft Cable, MIG/MAG; Flux-Cored, 1 Phase

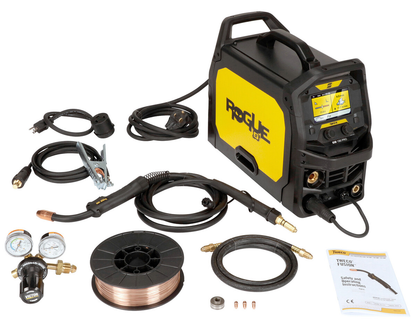

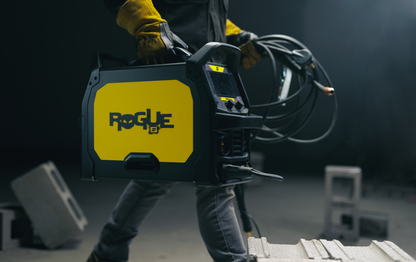

ESAB Rogue EM 190 PRO is an inverter-based MIG welding system designed to address all your welding project needs, from light fabrication to repair and maintenance. The system features industrial-grade arc performance and full featured controls that allow the welder to fine tune arc characteristics based on the material they are welding. With a weight of only 16.9 kg (37.3 lbs), single voltage input, 230V single-phase and compatibility with 10 kVA generators, this system provides maximum flexibility and portability, both in the shop and in the field

Applications

• Automotive
• Automotive Bodies
• Mechanical Contractors
• Light Fabrication
• Repair and Maintenance
• Civil Construction

Prop 65

• Yes

Features

• Rogue EM takes single-phase welders to the next level with MIG/MAG and Flux-cored welding, proven Rogue performance and a rugged industrial design. Break away from convention with Rogue and upgrade the capabilities of your shop
• Multi-language display –configure the display to 1 of 29 languages
• Unique rugged industrial design –supporting multiple lift points and cable management.
• Jobs –10 memory save/recall function
• IP23S rated for indoor/outdoor use
• Intuitive 5.0 in TFT screen offers clear views with direct interaction
• Synergic Weld Programs –full range of welding parameters, 0.5 –10.0 mm (0.020 –0. 375 in) with single knob control
• Power Factor Correction (PFC) –ensures a stable arc, resistant to power fluctuations even while working on long extension cables up to 100 m (328 ft)
• Arc Dynamics -fine tune arc characteristics for a crisp/stiff arc for carbon steel or a smooth/soft arc for stainless steel
• Spool Gun Ready –Rogue automatically configures set up when spool gun is connected
• Full feature MIG/MAG machine for Synergic MIG, Manual MIG, MIG Brazing, Flux-Cored

Accessories

• Tweco Fusion 180A MIG Gun, 3m (10 ft) 1017-1338
• Gas hose with 5/8 in 18 RH fittings, 3m (10 ft) 0700400858
• Tweco Spool Gun 160A 3.5 m (12 ft) 1027-1397
• Basic Utility Cart (Single cylinder) 1444-0900
• Return cable kit, OKC 50, 3 m (10 ft) 0700006901
• Trolley 2-wheel with cylinder support 0460330881
• Victor Argon Flow Gauge Regulator GF-250-50-580 0781-9411

• Current Range: 30 - 190 A
• MIG Welding Output: 145 A / 21.25 V at 30%, 102 A / 19.1 V at 60%, 79 A / 17.95 V at 100%
• Voltage: 230 V AC, single-phase
• Duty Cycle: 145 A / 21.25 V at 30%, 102 A / 19.1 V at 60%, 79 A / 17.95 V at 100%
• Phase: 1 Phase
• Wire Dimensions - Mild Steel & Stainless Steel: 0.6 0.9 mm (0.023 0.035 in)
• Wire Dimensions - Cored Wire (FCAW) & Aluminum: 0.8 0.9 mm (0.030 0.035 in)
• Wire Feed Speed: 2.0 16.5 m/min (75 650 ipm)
• Max Spool Diameter: 200 mm (8 in)
• Open Circuit Voltage: 78 VDC
• Operating Temperature: -10 to +40 C (+14 to 104 F)
• Protection Class: IP23S
• Efficiency at Max Current: > 82%
• Power Factor at Max Current: 0.99
• Physical Size: 590 x 220 x 385 mm (23.2 x 8.7 x 15.2 in)
• Weight: 16.9 kg (37.3 lbs)
• Compliance: cETLus
• Country of Origin: China
