ESAB, 0558012702, Multi-Process Welder, 120/230 V, 250 A, MIG, TIG, Stick, Dual Phase, Wire Feed Speed 60-700 ipm, Duty Cycle 40%

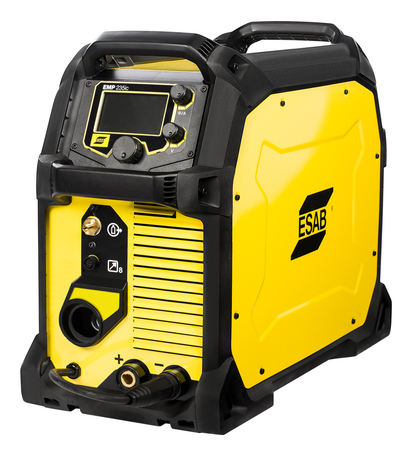

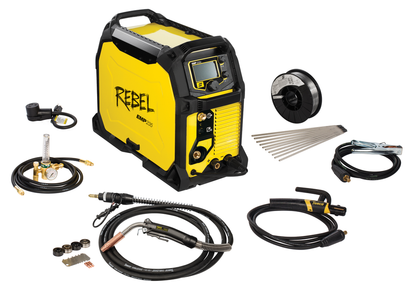

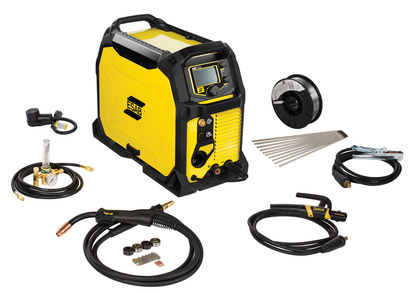

The ESAB® Rebel™ EMP 235ic Welding Machine offers 110V/230V flexibility and some of the most innovative welding technology available. This true multiprocess system is designed for MIG Flux-cored STICK and TIG welding. Built in wire feeder is 48 and 12 inch spool compatible. Weighing only 53lbs with a rated output 235A @40% Duty Cycle (MIG) 210A @40% Duty Cycle (STICK) 240A @40% Duty Cycle (TIG).

Features

• Power to Perform - have the confidence with Rebel 235ic to run the full range of .035 in. wire- short arc and spray transfer. Also up to .045 in solid wire and up to .052 in. cored wire. Plus, rods up to 5/32 in. and TIG rods up to 3/16 in.
• 110V and 230V dual input voltage
• Innovative Color LCD display has larger display screen and higher pixel density to provide a more clear view of the TFT screen than other light industrial welders; loaded with exclusive features: on-demand availability of the user's manual, listing of spare parts - all in multiple languages
• 4", 8" and 12" spool capable
• Hot start and Arc Force (Stick mode only)
• Weld parameter storage
• Lift arc (TIG mode only)
• Exlcusive sMIG Technology - innovative "smart-MIG" feature continuously learns and adapts to the operator's welding technique to provide a stable arc and superior, repeatable welds; increases productivity for the experienced welder, and reduces training time for novice welders
• Voltage trim, Inductance, Burn back, Pre-flow/Post-Flow Adjustment Capable (MIG mode only)
• Trigger lock
• Short arc and Spray transfer capable
• IP23S

Applications

• Agricultural Equipment
• Automotive
• Industrial And General Fabrication
• Repair And Maintenance
• Construction

Accessories

• Foot Control, 15 ft. (4.6 m) cable and 8-pin Male Plug W4014450
• Tweco 200A Spool Gun, 25 ft. (7.6 m) 1027-1399
• Rebel Single Cylinder Cart 0558102491
• Tweco 200A Spool Gun, 12 ft. (3.6 m) 1027-1398
• ESAB TXH 201 5/8 npt 12.5 ft. (3.8 m) TIG Torch Outfit 0558102493
• Spray Master 250 MIG Gun, 15 ft. (4.5 m) 1023-1140

Prop 65

• Yes

• Duty Cycle: 40%
• Output Amps (Max): 250 A
• Input Voltage: 120 V, 230 V
• Phase: Single Phase
• Frequency: 50/60 Hz
• Process: Flux Cored (FCAW), MIG (GMAW), Stick (SMAW), TIG DC (GTAW)
• Max Plate Thickness: 1/2 in.
• Wire Feed Speed: 60 - 700 ipm
• Wire Size: 0.023" - 0.045"
• Physical Size: 26.5 x 11.5 x 19.5 in.
• Weight: 53 lbs
• Cable Length: 15 ft
• Lead Cord Length: 10 ft
• Ingress Rating: IP23S
• Wire Spool Size: 4 in., 8 in., 12 in.
• Output Mode: CC/CV
• Amp Range: 5 - 250 A
• Country of Origin: China
• Carcinogen: Lead
• Reproductive: Dual Short Form
• Trade Name: RebelTM, RebelTM EMP 235ic
