Lincoln Electric, K4869-2, Invertec V276 8-Pack Rack, 3Ph, 50/60 Hz, 275A, Inverter/Chopper, 29 in Length

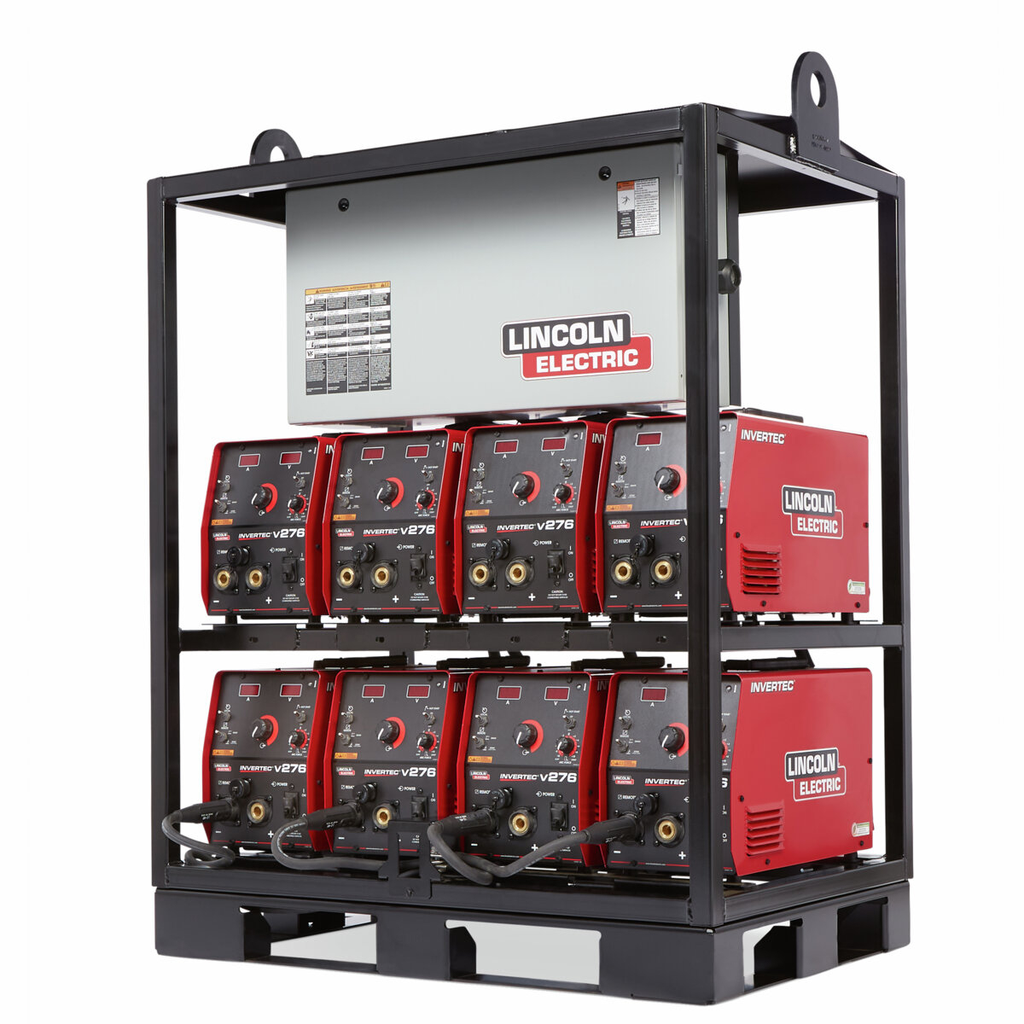

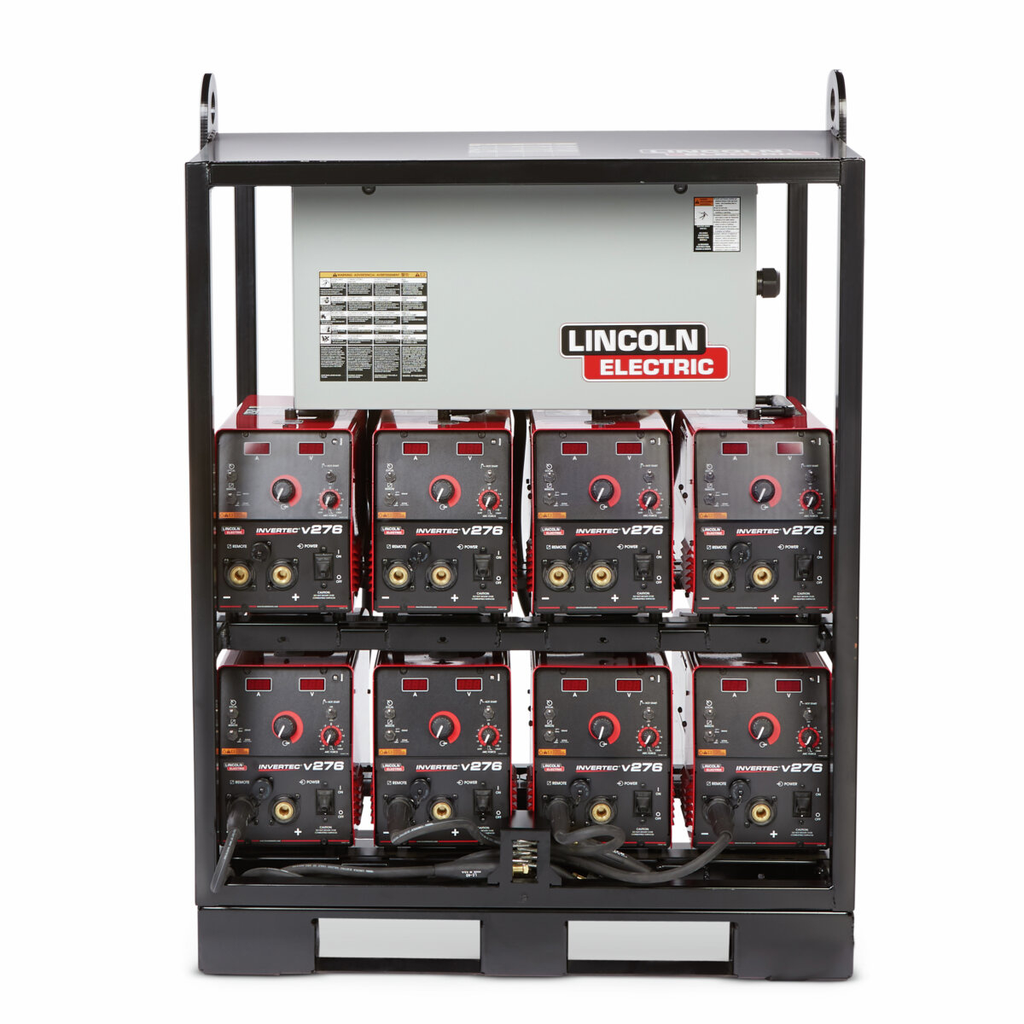

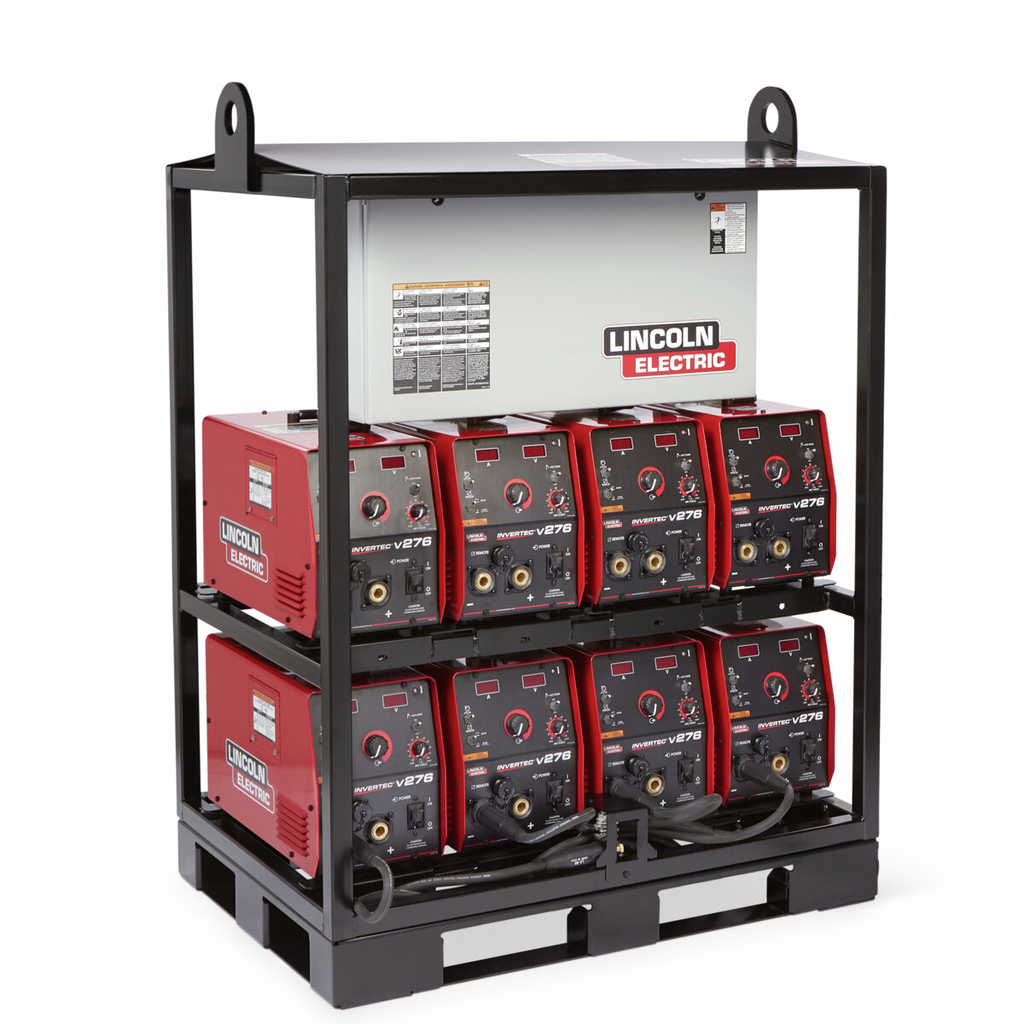

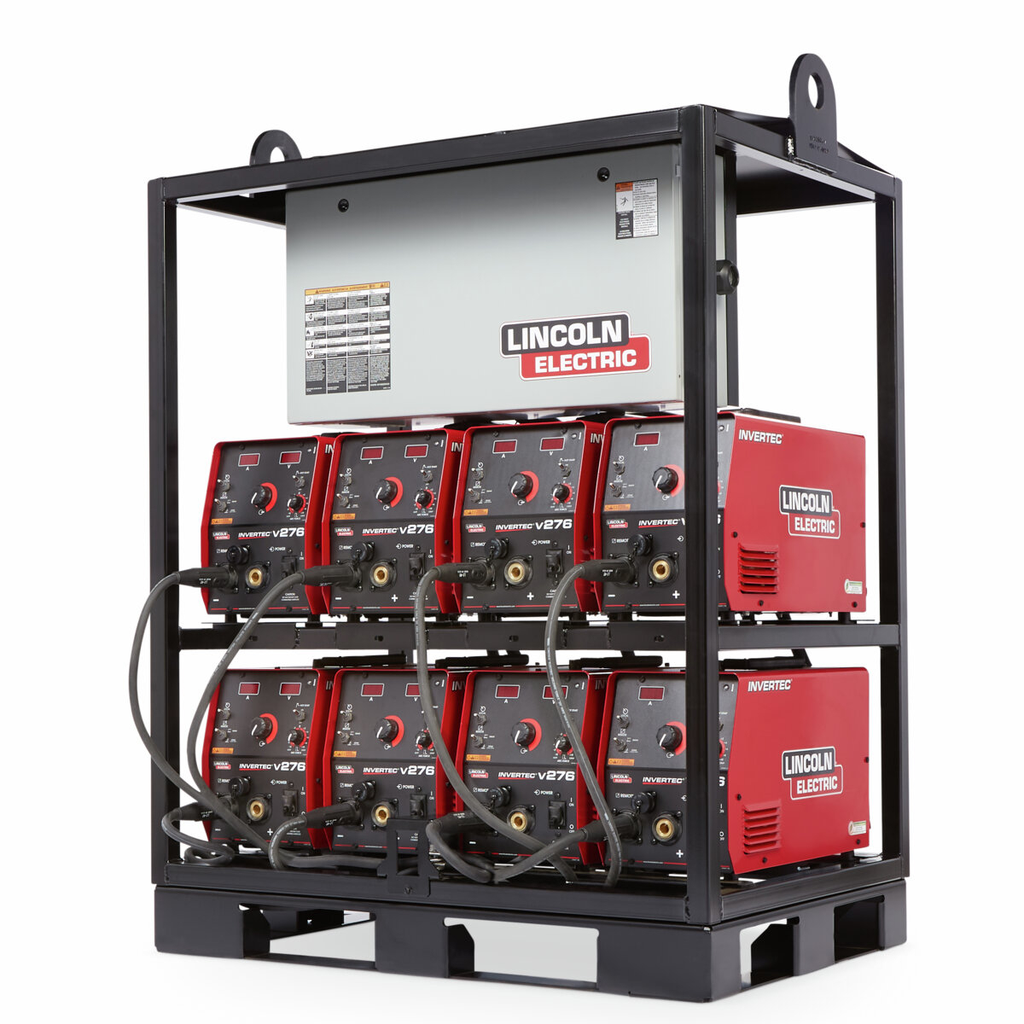

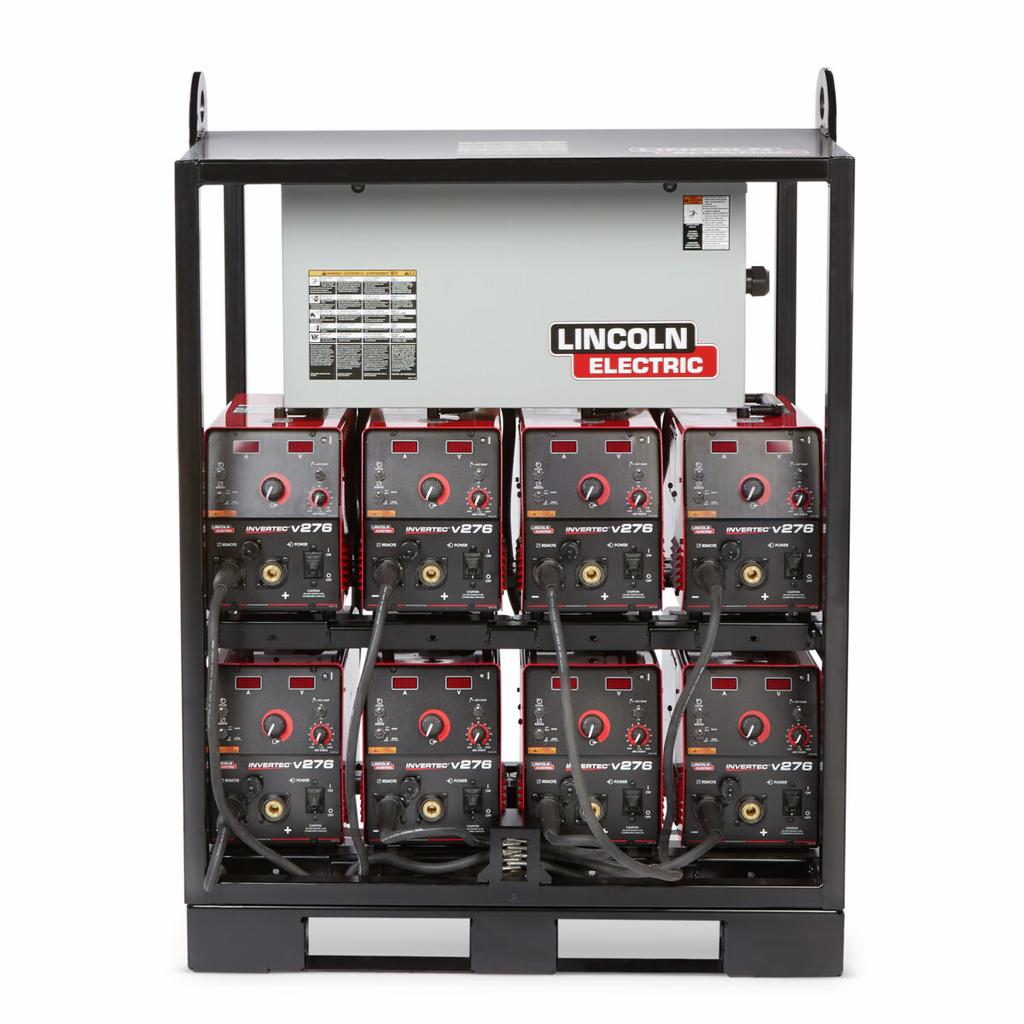

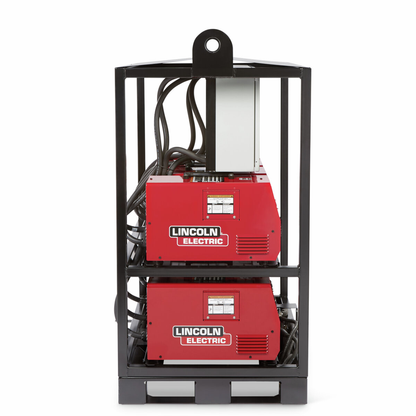

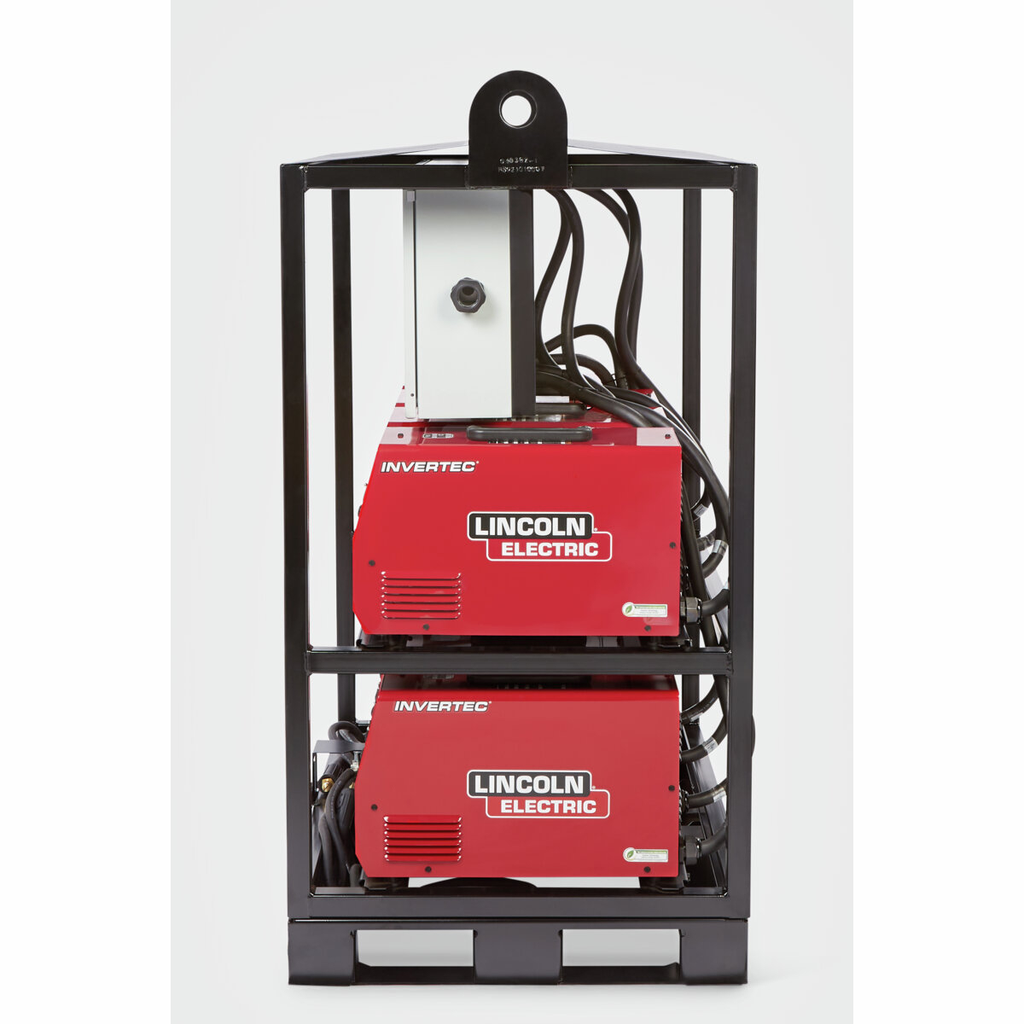

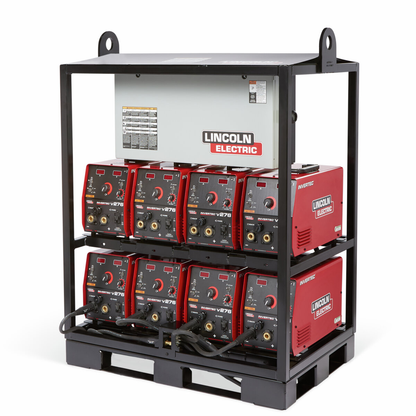

The Invertec® V276 8-Pack Rack includes 8 power sources on a compact, efficient and weather resistant racks. The Invertec® V276 stick and TIG power sources are ideal for outdoor construction applications. Lincoln Electric's rack systems are ideal for grouping several inverter power sources in a portable industrial-grade package for construction and other environments.

What's Included?

• (8) K4868-1 Invertec V276 (Tweco) Power Sources, (4) Work Leads, (1) Common Work Stud, (1) Stud Cover, (1) Rack, (1) Distribution Panel

Features

• Square tube frame construction – Supports more weight and stands up to rugged job site use
• Accommodates standard length machine input cables – Ensures the power sources can be placed in any position on the rack
• Two overhead lifting eyes, two fork lift slots, and four heavy duty optional casters - Provide ease of portability.
• Entire system meets National Electrical Code (NEC) – Compare the best in class rated output and wide amperage range

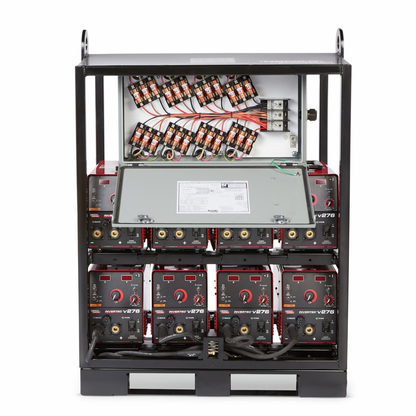

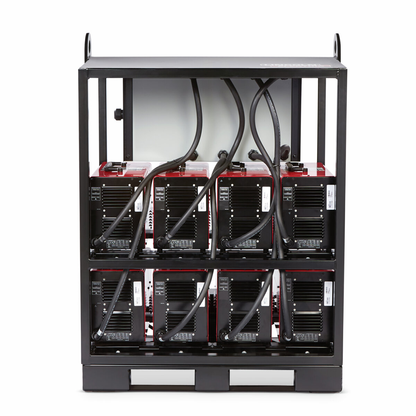

• The power sources are factory installed in the rack and wired to the main power distribution panel.
• Individual fuses – Provide overcurrent protection for each power source.
• One easy connection – Allows power sources to be connected with one primary power drop.

• Input Voltage: 208/230/380/415/460/575 VAC
• Input Phase: 3 Phase
• Input Frequency: 50/60 Hz
• Rated Output: 275A/31V/35%; 250A/30V/60%; 200A/28V/100%
• Output Range: 20-275 A
• Duty Cycle: 35%, 60%, 100%
• Processes: Stick (SMAW), Gouging (CAC-A), TIG (GTAW)
• Output Mode: CC
• Output Polarity: DC
• Welding Technology: Inverter/Chopper
• Dimensions (HxWxD): 58 x 42 x 29 in (1474 x 1067 x 737 mm)
• Material: Square tube frame
• Ingress Protection Rating: IP23
• Country of Origin: United States
• Product Weight: 750 lb (341 kg)
• Amphenol Pins (Type of Connector): 6
• Work Lead Connector Type: Tweco
• Warranty Length: 3 Years
