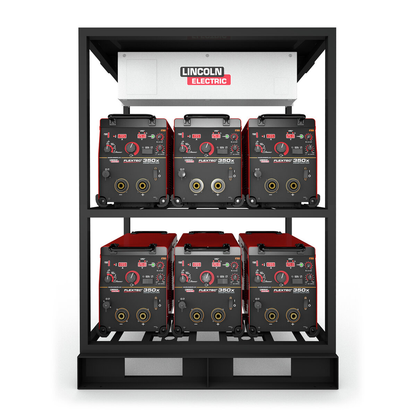

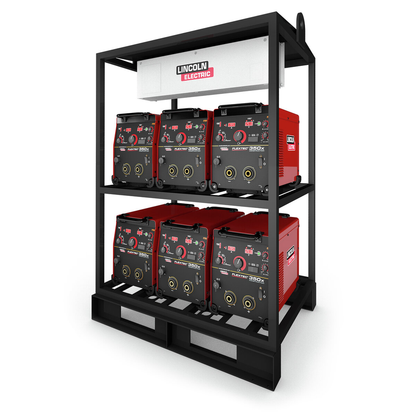

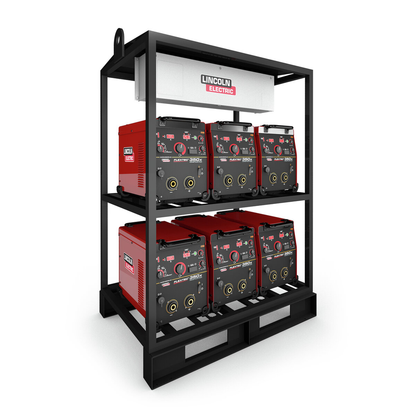

Lincoln Electric, K4277-2, Welders Rack, IP23 Rated, 902 mm Length, 460V Fused, 350A Rated Output

Flextec 350X multi-process construction 6 pack rack power source has CrossLinc technology for remote operation in construction welding applications.

Features

• Tough inverter rack structure allows up to (6) Flextec 350X welders to be transported and as one unit protected from the elements.
• Heavy square tubing used throughout construction, even for roof supports, to resist bending and twisting during lifts.
• IP23 rated for outdoor use
• Powers all welders with one primary power drop.
• Flextec 350X PowerConnect machines use industry segment Tweco style connections.
• All machines connected to a common work stud.

What's Included?

• Work cables from individual machines to inverter rack work stud

• Input Voltage: 380/460/575V, 3 Phase, 50/60 Hz
• Output Current: 5-425A
• Rated Output: 350A/34V/60%, 300A/32V/100%
• Duty Cycle: 60% at 350A, 100% at 300A
• Output Voltage: 34V at 350A, 32V at 300A
• Output Polarity: DC
• Output Mode: CC/CV
• Processes: Stick, TIG, MIG, Flux-Cored, Gouging, Flux-Cored Self-Shielded, Flux-Cored Gas-Shielded
• Temperature Rating at Rated Output: 55 C
• Dimensions (HxWxD): 71.22 x 48 x 35.5 in (1809 x 1219 x 902 mm)
• Weight: 830 lb (377 kg)
• Material: Heavy square tubing
• Connection Type: Tweco style
• IEC Amperage Class: 300
• Equipment Technologies: CrossLinc
• Tap or Continuous Control: Continuous
• Input Current: 90A
• Input Voltage Type: Multiple
• Machines Communication Technology: CrossLinc
• Work Clamp Included: No
• Arclink Connector: No
• Country of Origin: United States
• Warranty Length: 3 Years
• Ingress Protection Rating: IP23
• Welding Technology: Inverter/Chopper
