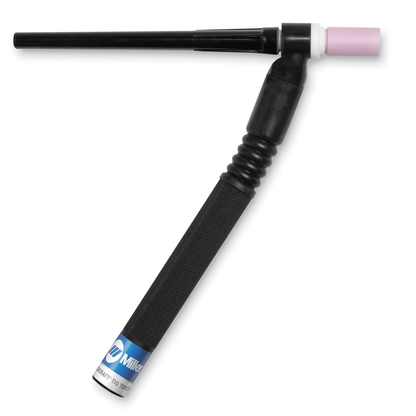

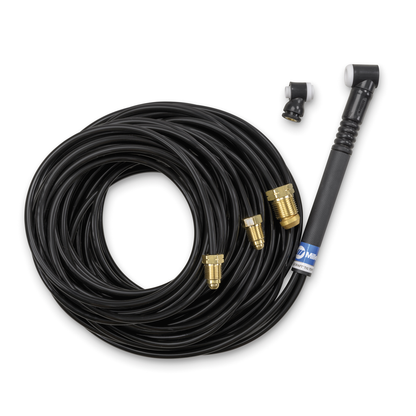

Miller Electric, WP-225-25, TIG Torch Package, 100% Copper, 25 ft, Modular Design

The Specialty & Modular Series is engineered with high-performing air-cooled and water-cooled technology to ensure that you can weld multiple joint configurations for various applications and angles.

Features

• 100% Copper Construction===Maximum thermal conductivity ensured by 100% copper construction.
• Configurable Head Options===Easy configurable head options provide greater flexibility and joint access, and minimize downtime for torch changeover.
• Modular Design===Minimizes costs and downtime for torch changeover and parts inventory.
• Cooling System===Built-in, efficient cooling system reduces overheating to extend parts and consumable life.
• A-150 Modular Torch Heads===Torch Head Angle (degrees) Electrode Range DC Amp Rating AC Amp Rating 24 70 .020-3/32 in. (0.5-2.4 mm) 80 50 24-90 90 .020-3/32 in. (0.5-2.4 mm) 80 50 9-70 70 .020-1/8 in. (0.5-3.2 mm) 125 100 9-90 90 .020-1/8 in. (0.5-3.2 mm) 125 100 9P 180 .020-1/8 in. (0.5-3.2 mm) 125 100 1726 70 .020-5/32 in. (0.5-4.0 mm) 150 115 1726P 180 .020-5/32 in. (0.5-4.0 mm) 150 115

• DC Rated Output: 225A
• AC Rated Output: 160A
• Duty Cycle: 100%
• Electrode Range: .020 5/32 in (0.5 4.0 mm)
• Cable Length: 25 ft (7.6 m)
• Cooling Type: Water-cooled
• Material: Vinyl
• Material Construction: 100% Copper
• Torch Head Angle Options: 24 , 24-90 , 9-70 , 9-90 , 9P, 1726, 1726P
• Torch Head DC Amp Ratings: 80A, 125A, 150A, 200A, 225A
• Torch Head AC Amp Ratings: 50A, 100A, 115A, 140A, 160A
• Country of Origin: United States
