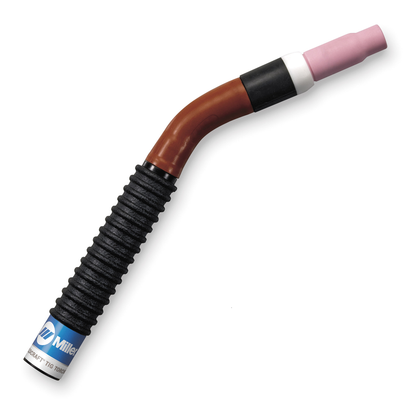

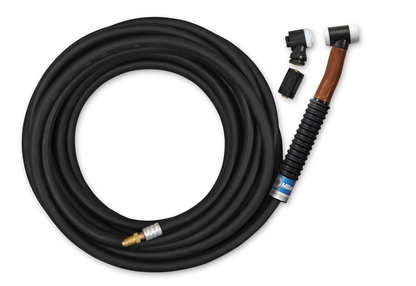

Miller Electric, WP-150-25-R, TIG Torch, 25 ft, Rubber, A-150 Modular, 1726 torch head

The Specialty & Modular Series is engineered with high-performing air-cooled and water-cooled technology to ensure that you can weld multiple joint configurations for various applications and angles.

Includes

• Rubber
• 1-Piece Power Cable
• 150CE and 150SE elements
• 1726 torch head
• 9-70 torch head
• Handle
• A-150 Modular Torch Body
• 25 ft. (7.6 m)

Features

• Provides greater shielding gas flow control (A-150 Modular Valve).
• A-150 Modular, A-150 Modular Valve
• Torch Head Angle (degrees) Electrode Range DC Amp Rating AC Amp Rating 24 70 .020-3/32 in. (0.5-2.4 mm) 80 50 24-90 90 .020-3/32 in. (0.5-2.4 mm) 80 50 9-70 70 .020-1/8 in. (0.5-3.2 mm) 125 100 9-90 90 .020-1/8 in. (0.5-3.2 mm) 125 100 9P 180 .020-1/8 in. (0.5-3.2 mm) 125 100 1726 70 .020-5/32 in. (0.5-4.0 mm) 150 115 1726P 180 .020-5/32 in. (0.5-4.0 mm) 150 115
• Maximum thermal conductivity ensured by 100% copper construction.
• Easy configurable head options provide greater flexibility and joint access, and minimize downtime for torch changeover.
• Built-in, efficient cooling system reduces overheating to extend parts and consumable life.
• Minimize costs and downtime for torch changeover and parts inventory.

• DC Amp Rating: 150A
• AC Amp Rating: 115A
• Electrode Range: 0.020-5/32 in (0.5-4.0 mm)
• Cable Length: 25 ft
• Material: Rubber, Copper
• Torch Head Model: 1726, 1726P, 9-70, 9-90, 9P
• Torch Head Angle: 24 , 70 , 90 , 180
• Country of Origin: United States
