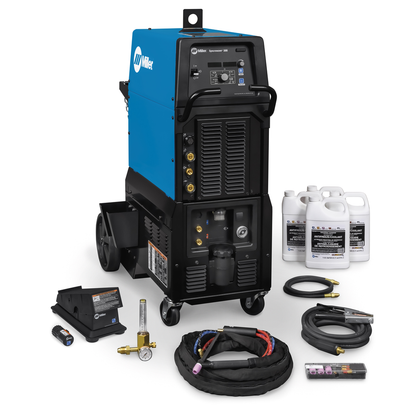

Miller Electric Syncrowave 300, Wireless Foot Control Complete - 951872

For fabricators who need more TIG welding productivity and lower operating costs, Miller Syncrowave machines are the energy efficient TIG welding power sources that make it easier for any welder to get more work done.

Features

• Easy to use: Intuitive user interface is simple to understand making it easy to adjust parameters. This means less time training new employees so more work gets done.
• Pro-Set™ Feature: This feature eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display. The Pro-Set feature is available for Balance, Frequency, Pulse and DIG parameters.
• Simple to install: Accepts either single- or three-phase input power.
• Auto-Link: Circuit automatically links the power source to primary voltage being applied (208/240/480 V, single- or three-phase).
• AC Frequency Control: Control the width of the arc cone and can improve directional control of the arc with adjustments between 50-150 Hertz.
• Energy efficient: Save up to 33 percent on energy costs versus outdated welding equipment.
• Smaller Footprint: Smaller, lighter machines are easier to move around and improve workplace conditions.
• Better Arc Performance: Deliver more stable arcs and better arc-starting characteristics, making it easy for any welder to get more work done and do better work.

• Max Open Circuit Voltage: 60 VDC
• Amperage Range: 5 A - 300 A
• Input Voltage: 208 V, 220/230/240 V, 460/480 V, single- or three-phase
• Input Frequency: 50/60 Hz
• Weld Output Type: CC
• Material Thickness Display: Aluminum 0.015 in. (0.4 mm) - 3/8 in. (9.5 mm); Steel 0.012 in. (0.3 mm) - 1/2 in. (12.7 mm)
• Metal Type: Steel, Aluminum
• Weldable Metals: Aluminum, Stainless Steel, Steel
• Current Type: AC / DC
• Dimensions: 29.4 in. H x 15 in. W x 24.6 in. D
• Net Weight: 101 lb (45.8 kg)
• Series: Syncrowave
• Country of Origin: United States
• AC Frequency Control Range: 50-150 Hz
• Cooling System: Fan-On-DemandTM power source cooling
• Rated Output: 300 A at 22 V, 30% duty cycle
• Compliance: CSA Certified
