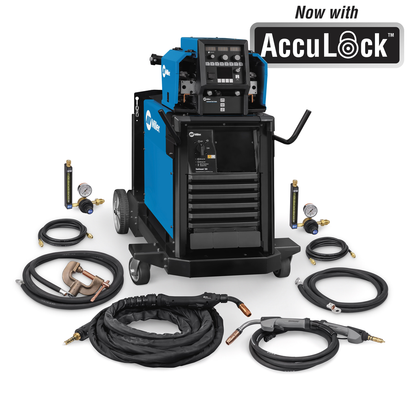

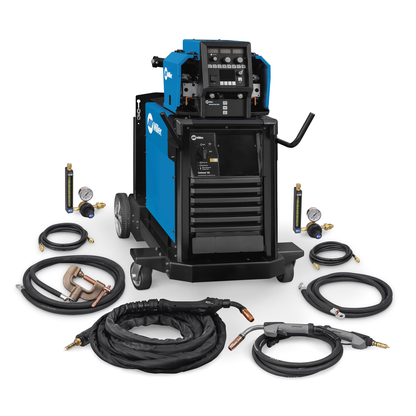

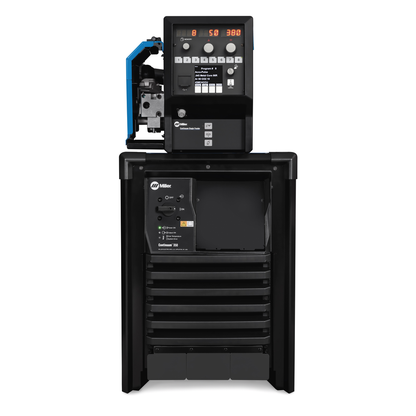

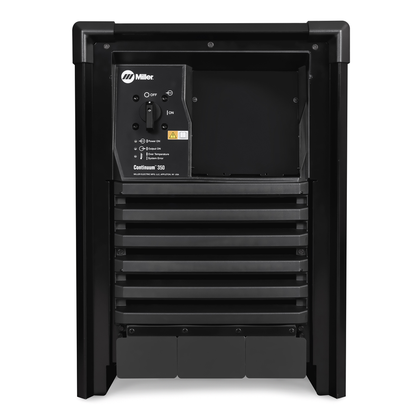

Miller Electric, 951865001, MIG Welder, ContinuumTM Series, 28 in Width, 48 in Length, 36 in Height

New generation of advanced industrial welding solutions improves productivity through weld quality, ease of use and system flexibility.

Features

• AccuLock S Consumables: AccuLock can transform the way businesses manage their MIG welding gun consumables – helping to optimize productivity, operating costs, and welder confidence. Less tip changes, less troubleshooting, and more beads worth bragging about!
• Adaptable to a Variety of Weld Cell Configurations: Flexible user interface location (power source, feeder, remote operator interface). Welding Intelligence™ Solutions: Insight Core™ (standard) and Insight Centerpoint™ (optional). Easily add process and programs. Wire feeder is easily configurable for standard spool sizes, 60-pound spools or bulk-feeding systems.
• Easy to set up and adjust with minimal training: 8 program/memory buttons USB functionality for updates, cloning and more Browser-based connection to view and adjust machine parameters, configure machine settings and ability to set locks and limits
• Superior Arc Performance: Improved Accu-Pulse provides less spatter, better arc control and less heat input. Very forgiving with changes in stick-out Improved MIG performance. Consistently smooth arc starts reduce spatter Improved RMD, designed for thin materials and gap filling with very low spatter New High-Deposition MIG process typically used for thicker material and larger welds. Provides lower heat input and higher deposition rates than standard spray transfer

• Amperage: 350 A at 100% duty cycle
• Voltage Range: 10-44 V
• Output Range: 20-400 A, 10-44 V
• Input Voltage: 230-575 V, 3-phase, 50/60 Hz
• Wire Feed Speed: 50-1000 ipm (1.27-25.4 m/min)
• Maximum Spool Size: 18 in. (457 mm), 60 lb. (27 kg)
• Wire Diameter Capacity: .035-5/64 in. (0.9-2.0 mm)
• Duty Cycle: 100% at 350 A
• Weight: 260 lb.
• Dimensions: 48 in. L x 28 in. W x 36 in. H
• Country of Origin: United States
• Series: ContinuumTM
