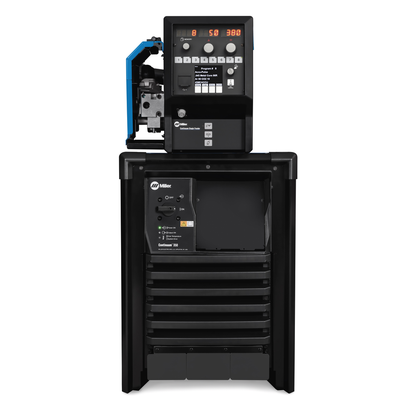

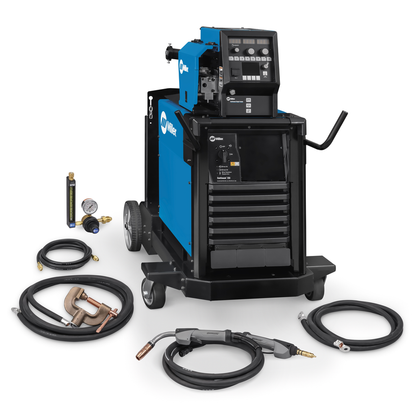

Miller Electric, 951852001, MIG Welder, ContinuumTM Series, 178.5 in Length, 73 in Height, 21.5 in Width

New generation of advanced industrial welding solutions improves productivity through weld quality, ease of use and system flexibility.

Features

• All-new feeder design: Faster motor response provides the best arc starts with the least amount of spatter. Tru-Feed ™ Technology provides precise feeding operation for stable arc performance.
• LCD Display: New user interface makes the system easy to set up and adjust with minimal training. Shows complete words, graphics and numeric values.

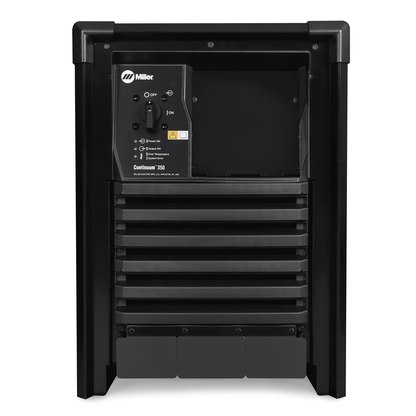

• All-new power source design: Smart and powerful digital design has the fast response needed to deliver the most stable welding performance for better welding results. Developed as a platform to meet current and future needs with integrated expansion capabilities.
• Tool-less lockable rotatable drive: Allows operator to rotate the drive, eliminate severe bends in the wire feeding path Extends gun-liner life Aids in feeding difficult wires
• Balanced-pressure drive-roll design and tensioners: Feed wire in its truest and straightest form for better feedability, resulting in better welding performance.
• Adaptable to a Variety of Weld Cell Configurations: Flexible user interface location (power source, feeder, remote operator interface). Welding Intelligence™ Solutions: Insight Core™ (standard) and Insight Centerpoint™ (optional). Easily add process and programs. Wire feeder is easily configurable for standard spool sizes, 60-pound spools or bulk-feeding systems.
• Superior Arc Performance: Improved Accu-Pulse provides less spatter, better arc control and less heat input. Very forgiving with changes in stick-out Improved MIG performance. Consistently smooth arc starts reduce spatter Improved RMD, designed for thin materials and gap filling with very low spatter New High-Deposition MIG process typically used for thicker material and larger welds. Provides lower heat input and higher deposition rates than standard spray transfer
• Easy to set up and adjust with minimal training: 8 program/memory buttons USB functionality for updates, cloning and more Browser-based connection to view and adjust machine parameters, configure machine settings and ability to set locks and limits

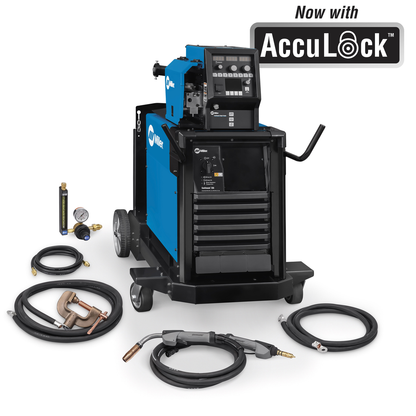

• AccuLock S Consumables: AccuLock can transform the way businesses manage their MIG welding gun consumables – helping to optimize productivity, operating costs, and welder confidence. Less tip changes, less troubleshooting, and more beads worth bragging about!

• Output Current: 350 A at 100% duty cycle
• Output Voltage Range: 10-44 V
• Input Power: 230-575 V, 3-phase, 50/60 Hz Auto-Line
• Wire Feed Speed: 50-1,000 ipm (1.27-25.4 m/min)
• Duty Cycle: 100%
• Max Open-Circuit Voltage: 71 VDC
• Wire Diameter Capacity: .035-5/64 in. (0.9-2.0 mm)
• Maximum Spool Size: 18 in. (457 mm), 60 lb. (27 kg)
• Length: 178.5 in.
• Width: 21.5 in.
• Height: 73 in.
• Weight: 160 lb.
• Power Source Weight: 127 lb. (57.6 kg)
• Feeder Weight (Single): 43 lb. (19.5 kg)
• Feeder Weight (Dual): 61.5 lb. (27.9 kg)
• Power Source Dimensions: H: 27.19 in. (691 mm), W: 17.5 in. (444 mm), D: 28.13 in. (714 mm)
• Feeder Dimensions: H: 13.81 in. (351 mm), W: 16.31 in. (414 mm) single, W: 17 in. (432 mm) dual, D: 29.69 in. (754 mm)
• Series: ContinuumTM
• Country of Origin: United States
