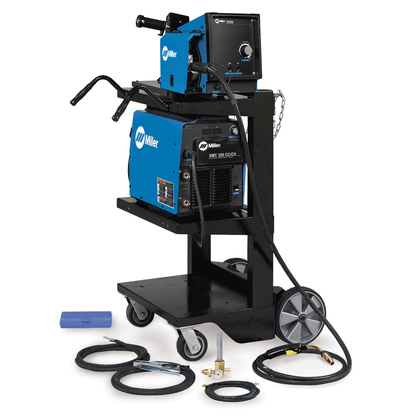

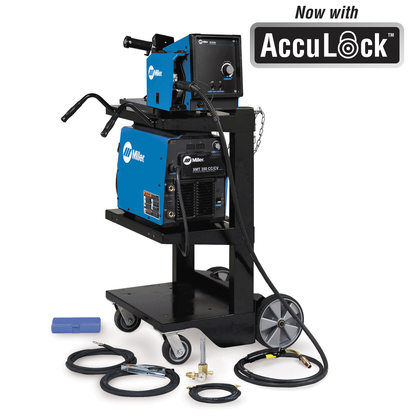

Miller Electric, 951786001, Multiprocess Welder, XMT 350 CC/CV, Dual V Drive Rolls, 20 Series, MIGRunner Cart

Portability and excellent arc performance make the XMT family the most popular in the industry. With many models to choose from the XMT family has the right solution for your business.

Includes

• .035-.045 reversible dual V drive rolls
• 6ft 2/0 wire feeder to power source weld cable
• 10ft 2/0 work cable with clamp
• Regulator/flowmeter
• MIGRunner Cart
• XMT 350 CC/CV
• Bernard BTB 300 A gun
• 3ft gas hose
• 20 Series wire feeder

Features

• Adaptive Hot Start™ makes starting stick electrodes easy without creating an inclusion. Infinite arc control available in the Stick and Wire modes for easier fine tuning of tough-to-weld materials and out-of-position applications. Lift-Arc™ TIG provides arc starting that minimizes the risk of electrode/work contamination without the need for high frequency.
• Allows hookup to either single-phase or three-phase primary input voltage, 208-600 volts dependent on the machine, with no manual linking, providing convenience in any job setting. An ideal solution for dirty or unreliable input power.
• Has the flexibility to be used with spool guns, feeders, and remote controls.
• Process selector switch reduces the number of control setup combinations without reducing any features. Ultra-tough, polycarbonate-blended cover protects front controls from damage. Large, dual digital meters are easy to view and presettable to ease setting weld output.
• Dinse- or Tweco®-style weld cable connectors provide high-quality weld cable connections. (Note: Two Dinse connectors are supplied with each Dinse machine. Tweco connectors must be ordered separately.)

• Input Voltage: 208-600 V
• Phases: Single-phase, Three-phase
• Gun Amperage: 300A
• Wire Size: .035-.045 in
• Wire Feeder to Power Source Cable Length: 6 ft
• Wire Feeder to Power Source Cable Gauge: 2/0
• Work Cable Length: 10 ft
• Work Cable Gauge: 2/0
• Gas Hose Length: 3 ft
• Country of Origin: United States
