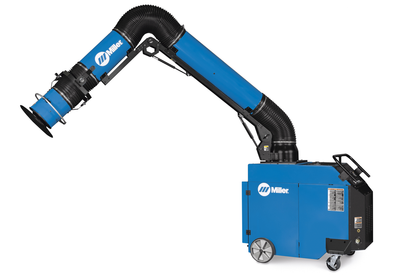

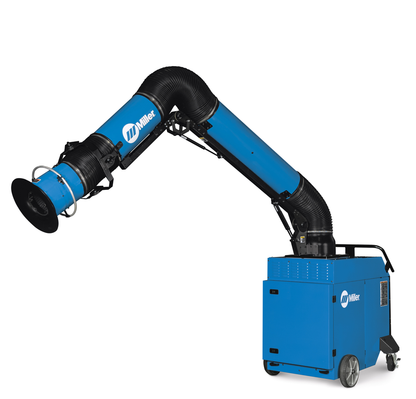

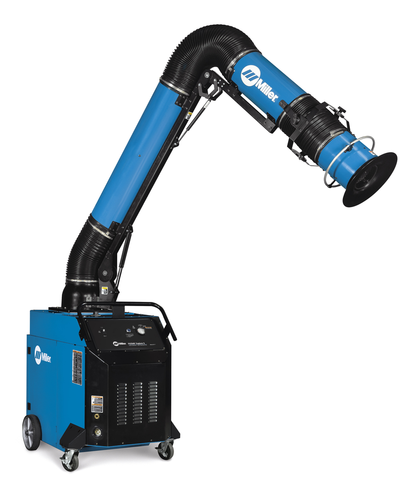

Miller Electric FILTAIR Capture 5 460 V, 10 ft. Arm - 951574

The Capture Zone, redefined. Innovative, extended-capture, fume extraction system designed specifically for welding. Exclusive ZoneFlow™ technology creates a much larger capture area than existing source-capture products. Ideal for fabrication shops, manufacturing and training centers.

Features

• Provides easy and convenient access to empty out collected particulate. Handles release drawer allowing it to slide out.
• Allow users to keep fume extraction system stationary during movement of the arm.
• With external adjustments, air can pass through with less airflow resistance, giving you stronger cfm (airflow). It offers reliable and accurate positioning across the full range of motion of the arm, as well as easy adjustment and maintenance to ensure long-lasting operation. Pre-assembled extraction arms are available in 10 and 12 foot lengths.
• Used for dry compressed air supply. Compressed air is required to operate the cleaning mechanism.
• Made of aluminum and steel it is extremely durable for long-lasting performance.
• Conveniently located for easy on / off access.
• With a capture zone that is 3 times larger than traditional systems, users have less interaction with the arm, increasing arc-on time and productivity.
• FilTek XL Filter Technology is specifically designed for welding fumes. This technology offers a longer filter life - up to 2 times that of treated cellulous filters and superior filtering of up to 95% of weld fume particulate.
• The arm is easy to move and stays in position. All adjustments are toolless and can be quickly adjusted by hand.

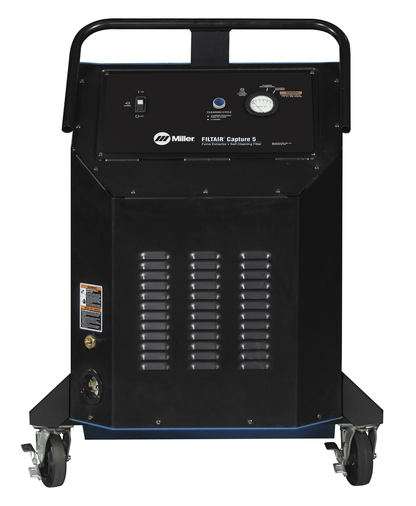

• Easy to read and indicates when the pressure drop increases and cartridge filter needs to be replaced.
• Allow for easy movement from one work area to another.
• Ensures long-lasting durability in a manufacturing environment.
• Filters are rated on a MERV scale, which measures filter efficiency based on particle count. MERV ratings range from 1-16, with 16 being the best at filtering small particles-such as those found in weld fumes.
• Extends filter life. Automatic pulse cleaning cycle cleans the filter from the inside out every time the machine is turned off. Weld fume particulate is removed from the filter and safely deposited in the disposal drawer. The manual push button and filter cleaning gauge ensures full control for highest airflow and consistent fume extraction throughout the life of the filter.
• Creates a negative pressure zone that funnels air to the center of the arm from greater distances, up to 5 feet away. The arm features convenient 360-degree rotation for unlimited positioning, which means fewer hood adjustments and extended welding time.

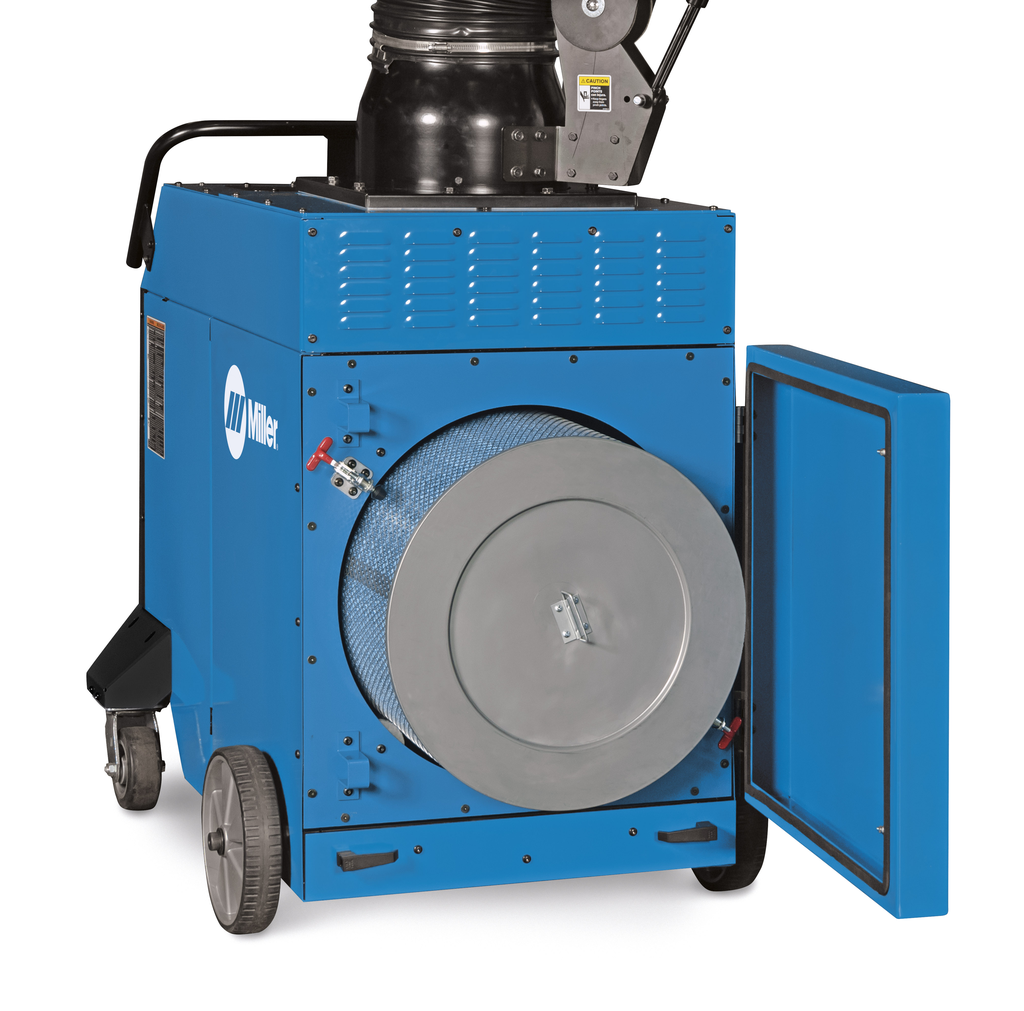

• Features a convenient locking mechanism for easy access to the filter and tool-free replacement.

Includes

• Mobile Capture 5 Extractor 460 V
• FilTek XL Filter
• Primary Power Connector
• 10 ft. Extraction Arm
• Note: Primary Cord Sold Separately

Does Not Include

• Primary Power Cord

• Voltage: 460/480 V
• Input Phase: 3-Phase
• Input Frequency: 60 Hz
• Input Amperage: 5.8 A
• Motor Power: 5 HP
• Nominal Air Flow: 900 CFM
• Filter Type: Self-cleaning
• Filter Media Area: 45.52 ft2
• Extraction Arm Length: 10 ft
• Sound Level at 5 Feet: 77 dB
• Number of Arcs: 1
• Weld Fume Extractor Type: Extended capture
• Material: Aluminum, Steel
• Country of Origin: United States
