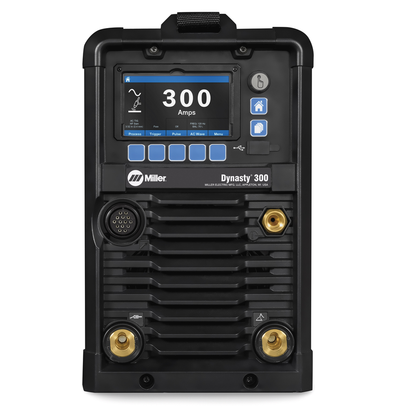

Miller Electric, 951000100, TIG Welder, AC/DC, 1-300 A, 60 VDC, Multiprocess

The Dynasty 300 Series has now expanded beyond the industry leading TIG and Stick performance by the additional CV output which allows for MIG capability - making this multiprocess line the perfect solution for ship building, construction, and more.

Features

• Tailored arc control (DIG) allows the arc characteristics to be changed for specific applications and electrodes. Smooth running 7018 or stiffer, more penetrating 6010. Hot Start™ adaptive control provides positive arc starts without sticking.
• Ensure proper machine setup and parameter selection with informative on-screen explanations and dynamic images.
• Provides control of the weld parameter ranges minimizing deviations from the welding procedure specifications (WPS).
• CV output of the power source gives this unit MIG process capabilities when paired with an ArcReach® 8 or 12 (or other voltage-sensing feeder).
• AccuLock can transform the way businesses manage their MIG welding gun consumables – helping to optimize productivity, operating costs, and welder confidence. Less tip changes, less troubleshooting, and more beads worth bragging about!
• Control the width of the arc cone and can improve directional control of the arc with adjustments between 50-150 Hertz.
• Allows easy naming, saving and recalling of favorite weld settings.
• Provides the ability to easily update software, back-up settings and transfer saved weld programs from one unit to the next.
• Feature operates the auxiliary cooling system only when needed, reducing noise, energy use, and airborne contaminants pulled through the cooler.
• Allows hookup to either single-phase or three-phase primary input voltage, 208-600 volts dependent on the machine, with no manual linking, providing convenience in any job setting. An ideal solution for dirty or unreliable input power.
• Cooling system operates only when needed, reducing noise, energy use and the amount of contaminants pulled through machine.
• This feature eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display. The Pro-Set feature is available for Balance, Frequency, Pulse and DIG parameters.
• High-frequency (HF) arc starter for non-contact arc initiation. Provides more consistent arc starts and greater reliability compared to traditional HF arc starters.
• QuietPulse is activated by changing the waveshape for DC pulse welding, creating a slower, more fluid transition between the background and peak amperage to create the least possible audible noise.

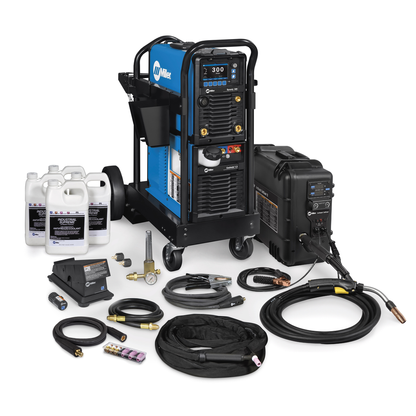

Includes

• Adjustable Shoulder Strap
• Coolmate™ 1.3
• Wireless Foot Control System (301580)
• 8 ft. (2.4 m.) Primary Cord
• Dynasty 300 Multiprocess
• Small Runner Cart
• ArcReach® SuitCase® 12
• (2) Dinse/Tweco® Adapters (042465)
• 8 ft. (2.4 m.) Weld Cable with Tweco®-style connectors to power feeder
• (2) 50 mm Dinse style connectors

• Input Voltage: 208 V - 600 V
• Amperage Range: 1 A - 300 A
• Max Open Circuit Voltage: 60 VDC
• Welding Mode: CC/CV
• Current Type: AC / DC
• Input Phase: 1- and 3-Phase
• Input Frequency: 50/60 Hz
• Weldable Metals: Aluminum, Specialty Metals, Stainless Steel, Steel
• Weld Output: 250 A at 20 V, 60% duty cycle
• Material Thickness Range: Aluminum 0.012 in. (0.3 mm) - 3/8 in. (9.5 mm), Steel 0.004 in. (0.1 mm) - 3/8 in. (9.5 mm)
• Display Min Thickness Mild Steel: 0.004 in. (0.1 mm)
• Display Max Thickness Mild Steel: 3/8 in. (9.5 mm)
• Rated Carbon Diameter: 3/16 in (4.8 mm)
• Length: 22.5 in.
• Width: 8.6 in.
• Height: 13.6 in.
• Weight: 310 lb
• Cable Length: 8 ft
• Connectors: (2) 50 mm Dinse, Tweco-style
• Cooling System: Adaptive (Coolmate 1.3)
• Control Type: Wireless Foot Control
• Process Capability: TIG, Stick, MIG
• Country of Origin: United States
